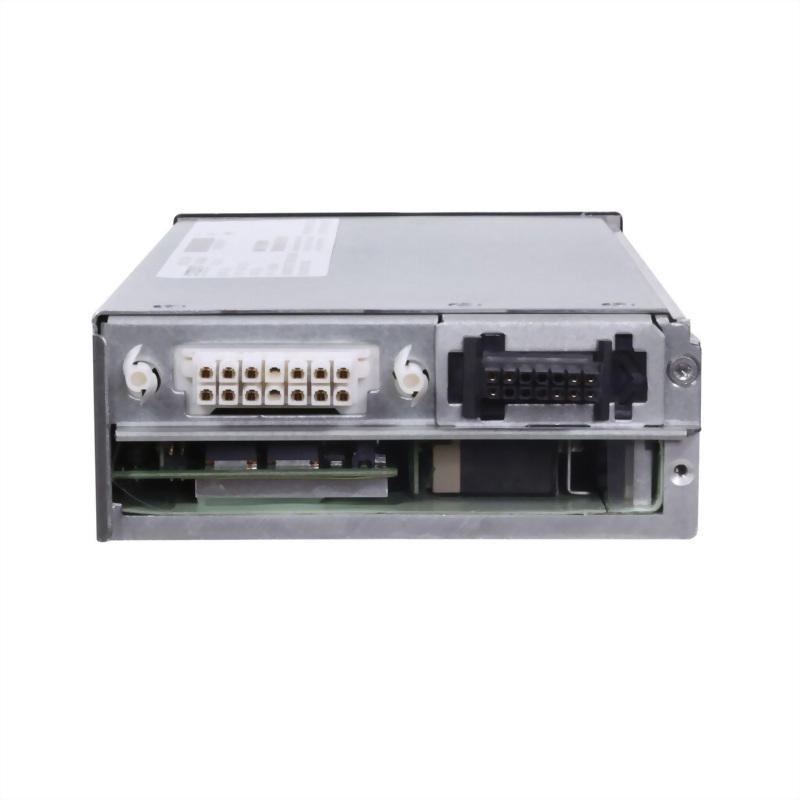

  • ihp 模組
  • ihp 模組
  • ihp 模組

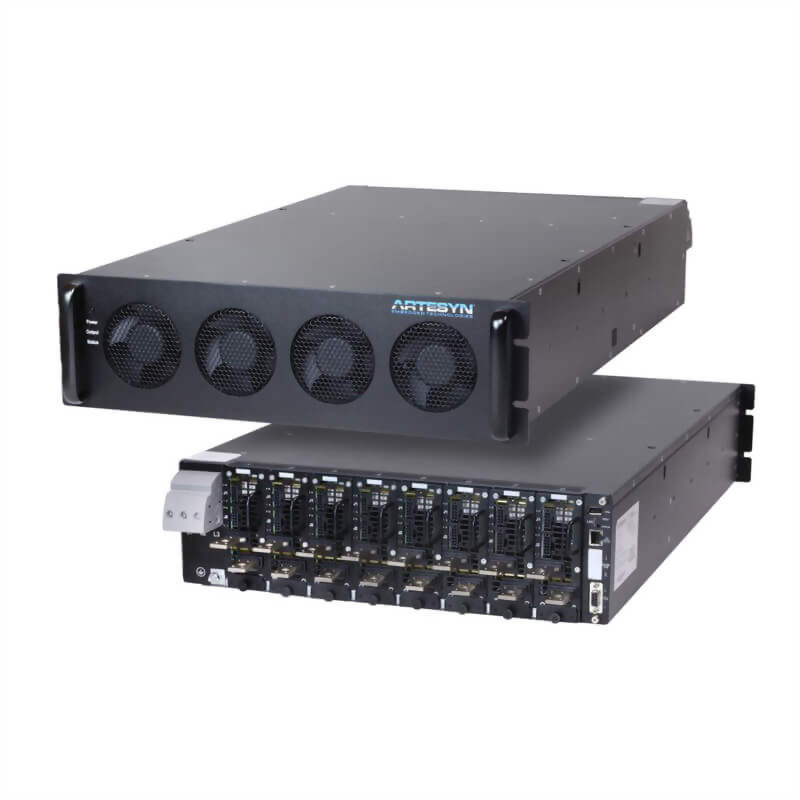

iHP Series智慧高功率電源 (醫療電源供應器)

Precision High Power System Up to 24000 Watts

■ Multi output precision high power system
■ Standard 19" rack
■ Outputs parallel up to 1600 A
■ Outputs series up to 1000 V
■ 100% digital control
■ Outputs program as voltage or current source
■ Versatile input configurable to Low Line 180 to 264 VAC Single/3-Phase and High Line 342 to 528 VAC 3-Phase
■ Medical safety approved – No ISOLATION XFMR NEEDED
型號 : ihp series

Designed for a wide range of medical and industrial applications, Artesyn’s iHP configurable intelligent power system provides accuracy, resolution and stability as either a programmable voltage or current source. It provides up to 24 kW in 3 kW increments and can be configured for up to 8 outputs using a wide variety of plug-in modules that address a large range of voltages and currents.

Safety approvals secured by Artesyn eliminate the need for an isolation transformer in medical equipment. The iHP power system also has industrial safety approvals, including compliance to the SEMI F47 standard for semiconductor processing equipment.

The iHP power system offers developers either an analog or digital interface to their system supporting standard communications protocols, while a software graphical user interface (GUI) allows for easy configuration.

Total Max Power:

24,000 W

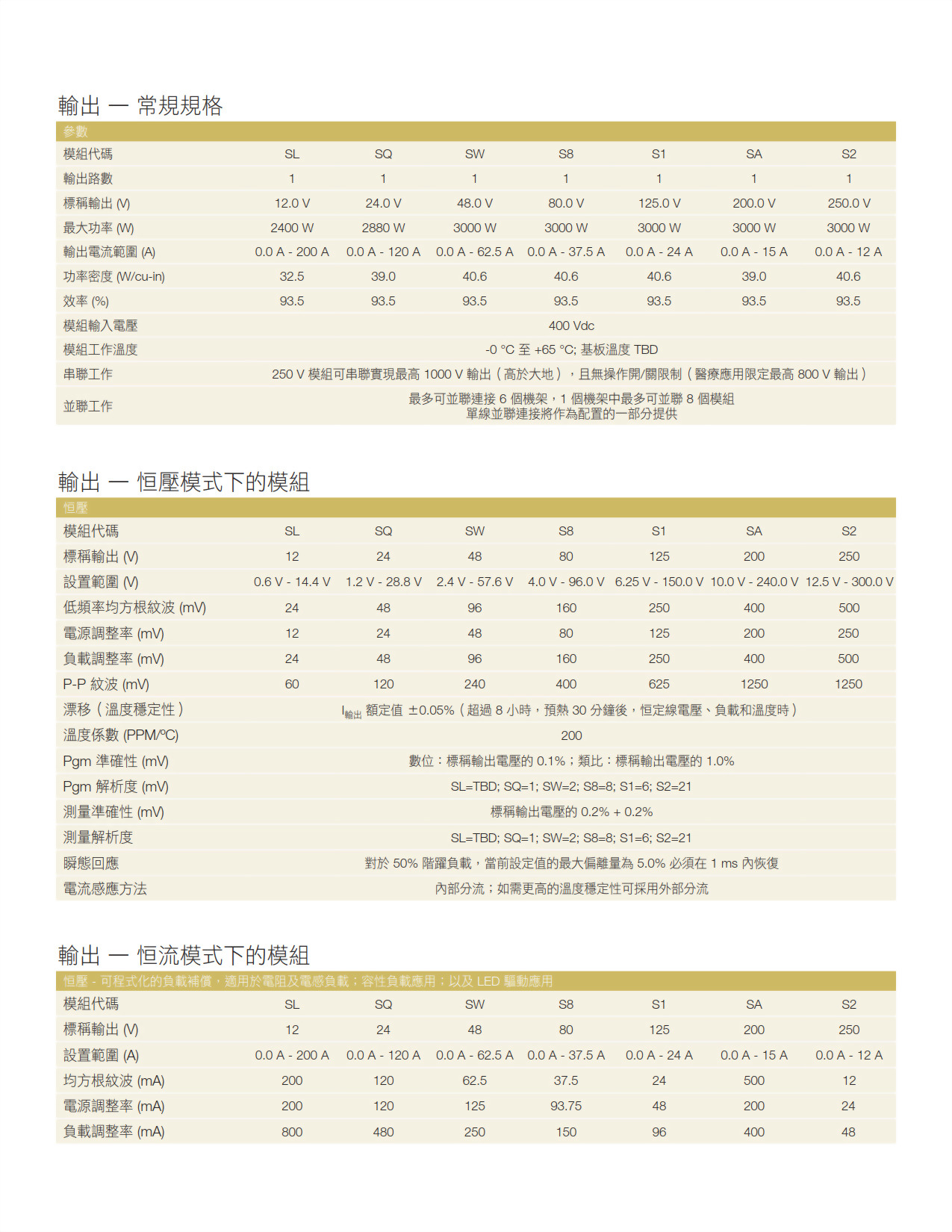

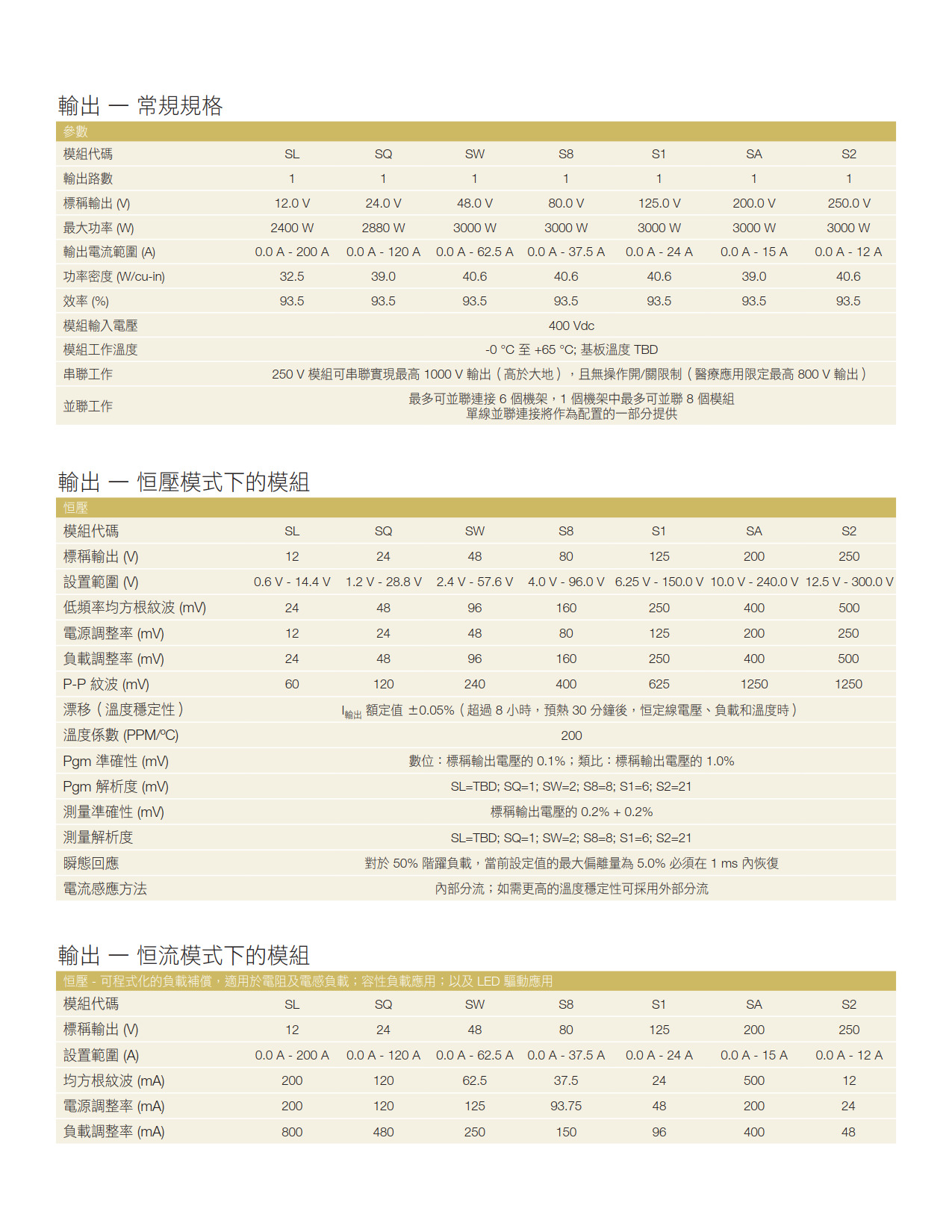

Output Voltage:

0.6 V to 1000 V


5 years

Total Max Current:

1,600 A



Operating Temperature:

0°C to +50°C

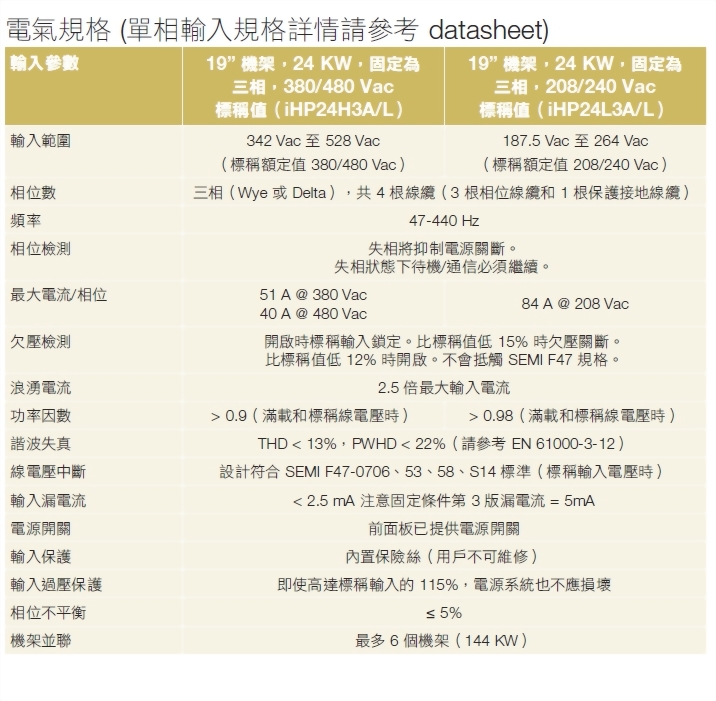

Input Voltage:

180 V to 528 V

Size (L x W x H):

27.800" x 17.600" x 5.220"

• 多路輸出的精度型大功率電源系統
• 標準 19"機架
• 並聯輸出最高 1600 A
• 串聯輸出最高 1000 V
• 100% 數位化控制
• 輸出程式作為電壓或電流源
• 通用輸入可配置為:
• 低壓 180 - 264 Vac 單相或三相
• 高壓 342 - 528 Vac 三相
• 符合醫療安全認證——無需隔離 XFMR (醫療電源供應器)
• 靈活控制介面:類比 0-5 V 或 0-10 V;數
位乙太網路 UDP、RS485、CAN 等,或
附有 PowerPro 連線模組選項的乙太網路
TC/IP。採用 PMBus 命令協定標準。

• 風冷
• 符合 Semi F47 標準
• 可現場升級的固件
• 可程式設計的轉換速率
• 快速電流轉換速率最高 200 Hz
• 主動式功率因數校正
• 用戶定義的命令設定檔
• 適合大型 LED 燈具的直接驅動電流電源
