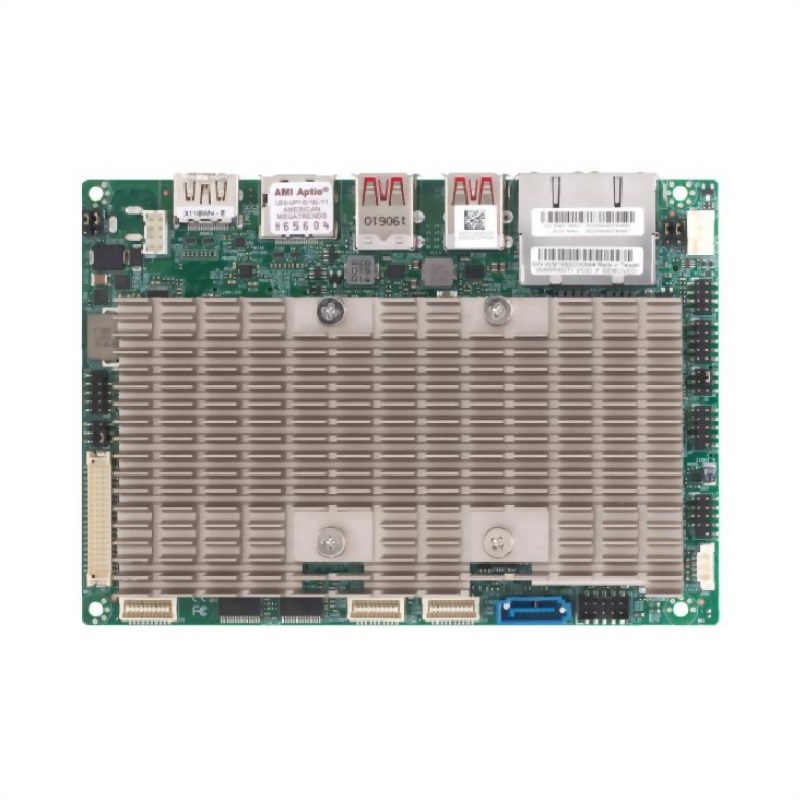

Form Factor
|
|
|
Dimensions
|
-
5.7" x 4.0" (14.6cm x 10.16cm)
|
|
|
|
|
|
CPU
|
-
Intel® Celeron® Processor 4305UE.
-
Single Socket FCBGA-1528 supported, CPU TDP support Up to 15W TDP
|
|
Cores / Cache
|
-
2 cores, 2 threads / 2MB cache
|
|
|
|
|
|
Memory Capacity
|
-
Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
|
|
Memory Type
|
-
2133MHz Non-ECC DDR4 Unbuffered 260pin SODIMM
|
|
DIMM Sizes
|
|
|
Memory Voltage
|
|
|
|
|
|
|
Chipset
|
|
|
SATA
|
-
I-SATA0 (1x SATA 3.0 Port)
|
|
Network Controllers
|
-
Single LAN with Intel® Ethernet Controller I210IT
Single LAN with Intel® PHY I219LM LAN controller
|
|
Audio
|
|
|
Graphics
|
-
Intel® UHD Graphics 610
-
Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), HDMI 1.4 (max. resolution up to 4096x2160@30Hz), DP++ (max. resolution up to 4096x2304@60Hz)
|
|
|
|
|
|
SATA
|
|
|
LAN
|
-
2 RJ45 Gigabit Ethernet LAN ports
|
|
USB
|
-
4 USB 2.0 ports (4 via headers, Type A))
-
4 USB 3.1 Gen2 ports (4 Rears Type A)
|
|
Video Output
|
-
1 DP++(Dual-Mode DisplayPort) port, 1 48-bit LVDS port, 1 HDMI port,
-
Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), HDMI 1.4 (max. resolution up to 4096x2160@30Hz), DP++ (max. resolution up to 4096x2304@60Hz)
|
|
Serial Port / Header
|
-
6 COM Ports (6 headers), (4 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
|
|
TPM
|
|
|
Others
|
-
1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C)
-
1 8-bit GPIO header
-
1 SMBus header
-
1 Speaker header
-
1 System Fan
|
|
|
|
|
PCI-E
|
|
|
M.2
|
-
Key: B-Key , M-Key , E-Key
-
M.2 2242/3042/2280 B-Key (USB3.0/2.0 x 1,SATA Gen3 x 1) with nano SIM holder
-
M.2 2242 E-Key (CNVi/PCI-E 3.0 x1/USB2)
-
M.2 2242/2280 M-Key (PCI-E 3.0 x4,SATA Gen3 x 1), NVMe support
|
|
|
|
|
|
Software
|
|
|
System Mangement Software
|
|
|
Power Configurations
|
-
+12-24V DC Power Input
-
ACPI Power Management
-
Control of power-on for recovery from AC power loss
-
Force Power On by Jumper
-
CPU thermal trip support for processor protection
|
|
|
|
|
|
Voltage
|
-
+12V, +3.3V, +5V, 1.2V (VDIMM), 3.3V standby, Monitors CPU voltages, System level control, System temperature, VBAT
|
|
FAN
|
-
1x 4-pin fan header (up to 1 fan), Fan speed control, Low noise fan speed control, PWM fan speed control, System level control, Thermal control tachometer fan connectors
|
|
Temperature
|
|
|
LED
|
|
|
Other Features
|
-
8-pin 12-24V DC Power Connector, ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, System level control, WOL
|
|
|
|
|
|
Operating Temperature Range
|
-
0°C ~ 60°C (32°F ~ 140°F)
|
|
Non-Operating Temperature Range
|
-
-40°C - 85°C (-40°F - 185°F)
|
|
Operating Relative Humidity Range
|
-
8% - 90% (non-condensing)
|
|
Non-Operating Relative Humidity Range
|
-
10% ~ 95% (non-condensing)
|
|
