AEE 40W高輸入單輸出隔離式DC-DC轉換器
The AEE series of 40 watt high-input isolated DC-DC converters features an ultra wide 4:1 input voltage range of 18–75 Vdc and is primarily designed for use with nominal 48 V supplies.
型號 :
aee 40w high i-p single o-p series

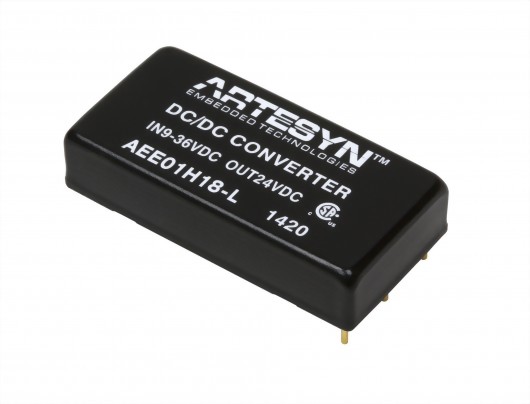

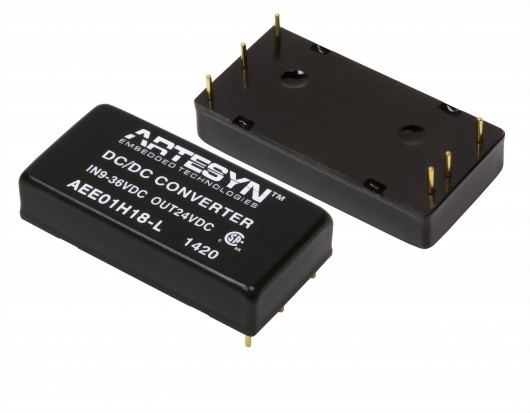

There is a choice of five single output models, offering voltages of 3.3 V, 5 V, 12 V, 15 V or 24 V, and two dual output models offering +12/-12 V or +15/-15 V. The converters are fully encapsulated in a compact 1 x 2 inch (25.4 x 50.8 mm) metal case and have a height of just 0.40 inch (10.2 mm) – except for the 24 V model, which has a height of 0.43 inch (11 mm).
Standard features include 1,500 Vdc input/output isolation, comprehensive protection against overvoltage, overcurrent and overtemperature conditions, and remote On/Off. These converters have an operating temperature range of -40 to 80˚C without derating and a typical efficiency of 90%; an optional clip-on heatsink is available. They are ideal for ruggedized applications involving harsh environments. Typical areas of use include industrial automation, instrumentation, test and measurement, and telecommunications.
The 3.3 Vdc output model has a power output rating of 26.4 watts, while all other models are rated at 40 watts.
Standard features include 1,500 Vdc input/output isolation, comprehensive protection against overvoltage, overcurrent and overtemperature conditions, and remote On/Off. These converters have an operating temperature range of -40 to 80˚C without derating and a typical efficiency of 90%; an optional clip-on heatsink is available. They are ideal for ruggedized applications involving harsh environments. Typical areas of use include industrial automation, instrumentation, test and measurement, and telecommunications.
The 3.3 Vdc output model has a power output rating of 26.4 watts, while all other models are rated at 40 watts.
-
Total Max Power:
40 W -
Total Max Current:
8 A -
Input Voltage:
18 V to 75 V -
Output Voltage:
3 V to 28.8 V -
Outputs:
Single -
Size (L x W x H):
2.000" x 1.000" x 0.400" -
Warranty:
2 years -
Operating Temperature:
-40°C to +85°C
