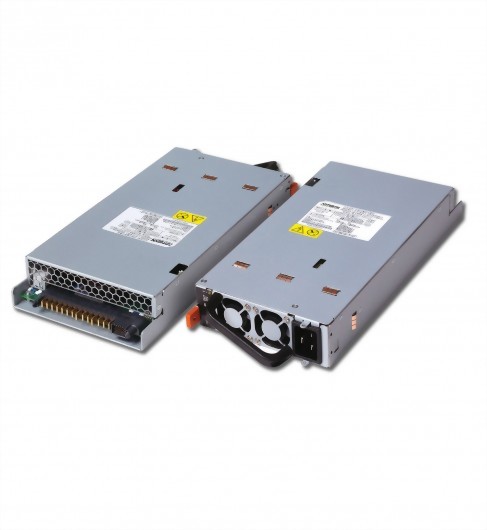

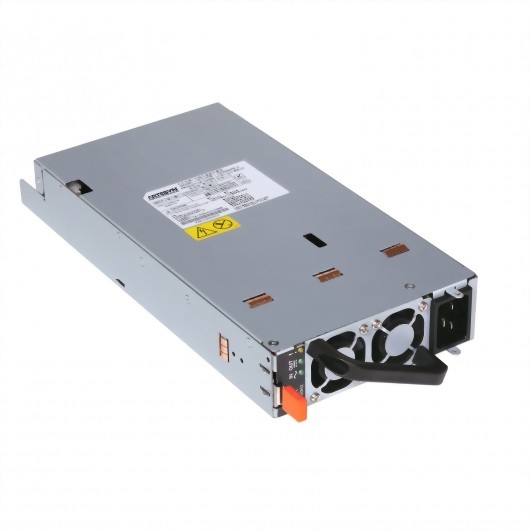

DS2500PE Series冗餘式電源

The DS2500PE series bulk front end AC-DC power supply accepts a 180–264 Vac input and provides a main 12 V output plus a 3.3 V standby output.
型號 : ds2500pe


Rated at 2,500 watts, it is an 80 Plus Platinum power supply with a peak conversion efficiency of 94%. Housed in a 1U high rack-mounting enclosure, the DS2500PE has a high power density of 23.3 watts per cubic inch.


The main 12 V output can deliver up to 208 amps and stays within regulation down to zero load, making it perfect for feeding downstream DC-DC converters in systems that use distributed power architectures (DPA). Active current sharing enables multiple supplies to be paralleled for very high current applications without need of additional components. The DS2500PE power supply is hot pluggable and ideal for fault tolerant, N+1 and N+N redundant applications.

This digitally-controlled power supply is PMBus™ compliant. A built-in I2C serial interface allows set-up, monitoring and control to be performed using Artesyn Embedded Technologies' universal PMBus graphical user interface.
  • Total Max Power:
    2,500 W
  • Total Max Current:
    208 A
  • Input Voltage:
    180 V to 264 V
  • Output Voltage:
    N/A
  • Outputs:
  • Size (L x W x H):
    11.560" x 5.470" x 1.689"
  • Warranty:
    2 years
  • Operating Temperature:
    +10°C to +50°C
  • 2500W output power
  • Platinum efficiency
  • N+N Redundant
  • Internal OR'ing
  • 3.3 V housekeeping
  • High efficiency (94% @ 230 VAC) 50% load
  • Variable speed smart fan
  • EMI Class A
  • PMBus Compliant
