• X11SRA 工業級主機板

X11SRA 工業級主機板

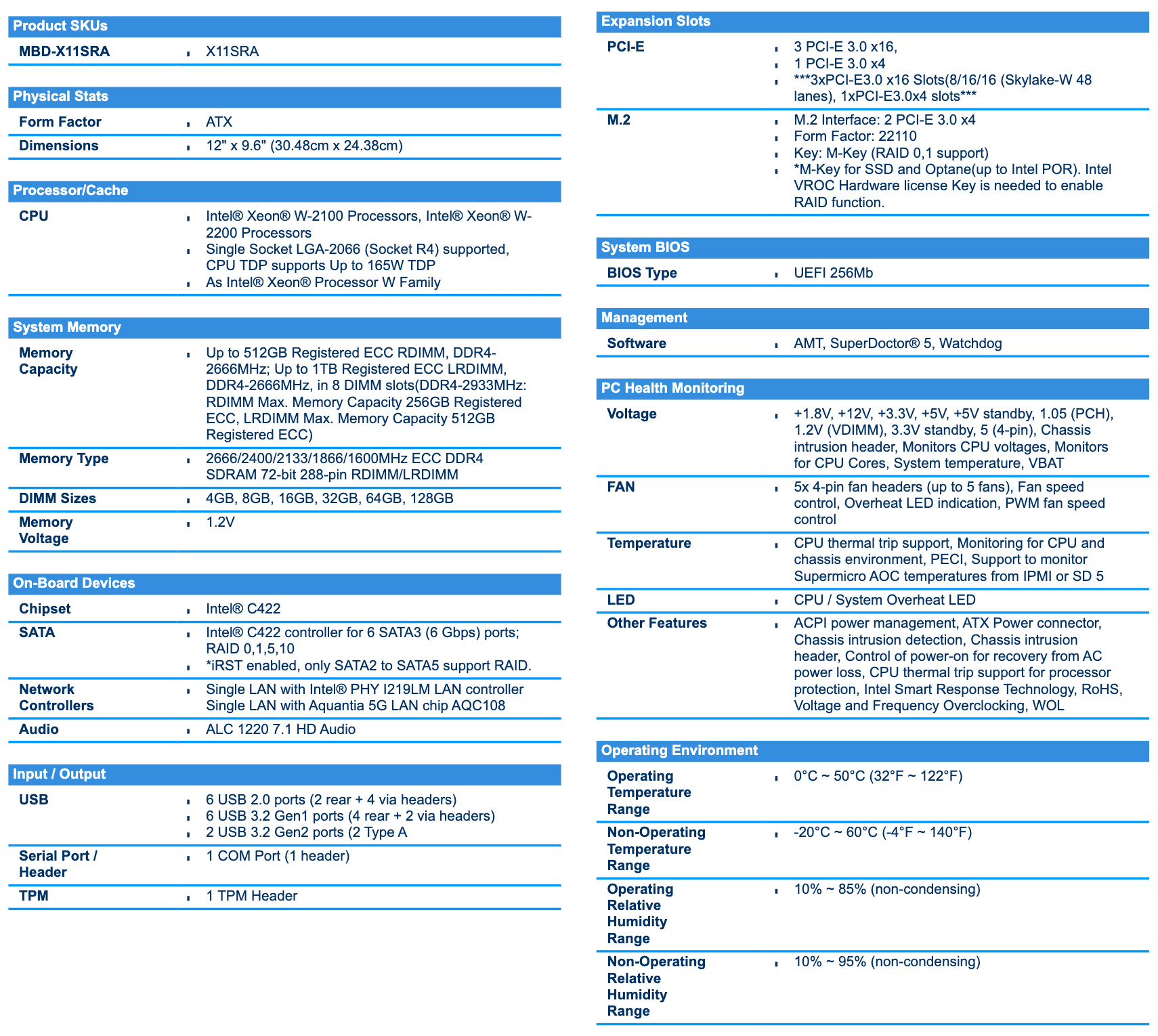

Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors
Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP
Intel® C422
Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, DDR4-2666MHz, in 8 DIMM slots(DDR4-2933MHz: RDIMM Max. Memory Capacity 256GB Registered ECC, LRDIMM Max. Memory Capacity 512GB Registered ECC)
3 PCI-E 3.0 x16,
1 PCI-E 3.0 x4
***3xPCI-E3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCI-E3.0x4 slots***
M.2 Interface: 2 PCI-E 3.0 x4
M.2 Form Factor: 22110
M.2 Key: M-Key (RAID 0,1 support)
*M-Key for SSD and Optane(up to Intel POR). Intel VROC Hardware license Key is needed to enable RAID function.
U.2 Interface: 2 PCI-E 3.0 x4
Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
*iRST enabled, only SATA2 to SATA5 support RAID.
Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Aquantia 5G
型號 : X11SRA

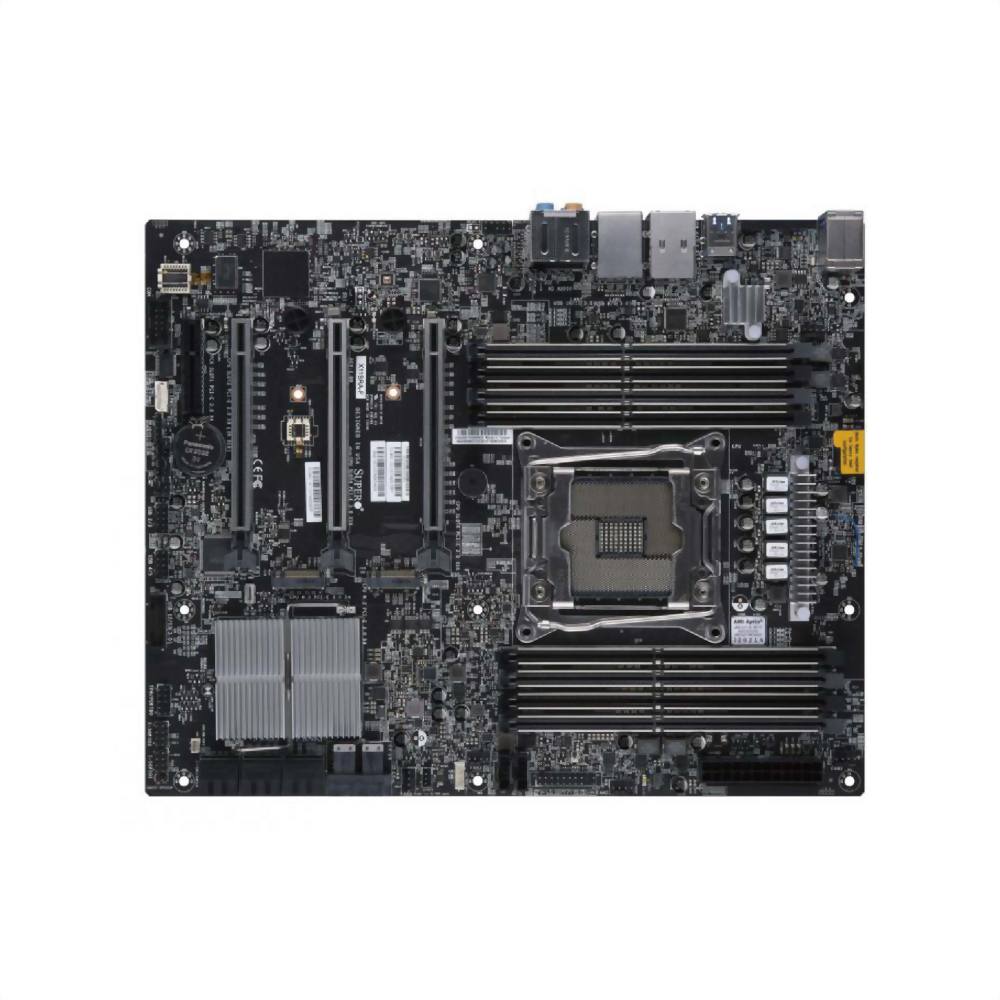

The X11SRA motherboard support a single Intel Xeon W-21xx and W-22xx series processor in the LGA2066 socket. With the Intel C422 PCH, the X11SRA/-F/-RF is a high-end, multi-GPU workstation motherboard that offers reliability and stability. It offers the latest high-performance features such as NVMe, M.2/U.2 storage interfaces, and DDR4 memory with speeds of up to 2666MHz.
The X11SRA/-F/-RF supports the following features:
• ACPI Power Management Logic Support Rev. 4.0a
• Intel Turbo Boost Technology
• Configurable TDP (cTDP) and Lower-Power Mode
• Adaptive Thermal Management/Monitoring
• PCIe 3.0, SATA 3.0, NVMe, U.2 and M.2 connectors
• System Management Bus (SMBus) Specification Version 2.0 • Intel Trusted Execution Technology (Intel TXT)
• Intel Rapid Storage Technology
• Intel Virtualization Technology for Directed I/O (Intel VT-d)
