iLS1500 可程式實驗室直流電源供應器
• 1500W with extended range
• LXI certified
• 5 models: up to 400V and 70A
• Small, high-density 1U package
• Wireless digital remote sense
• Built-in voltage and current measurement
• Full OCP and OVP protection
• Series and parallel operation
• LXI certified
• 5 models: up to 400V and 70A
• Small, high-density 1U package
• Wireless digital remote sense
• Built-in voltage and current measurement
• Full OCP and OVP protection
• Series and parallel operation
型號 :
iLS1500-Series

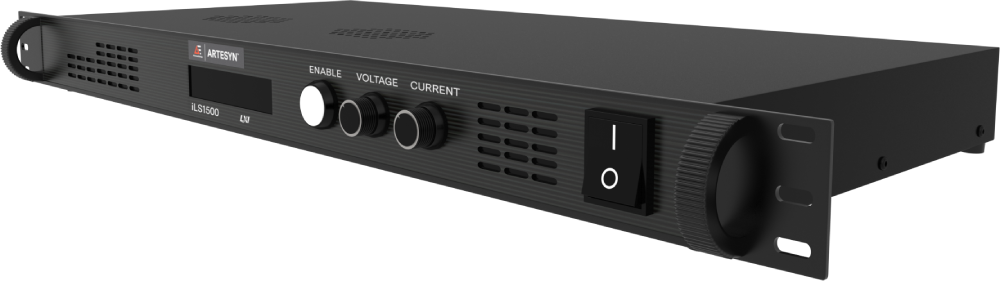

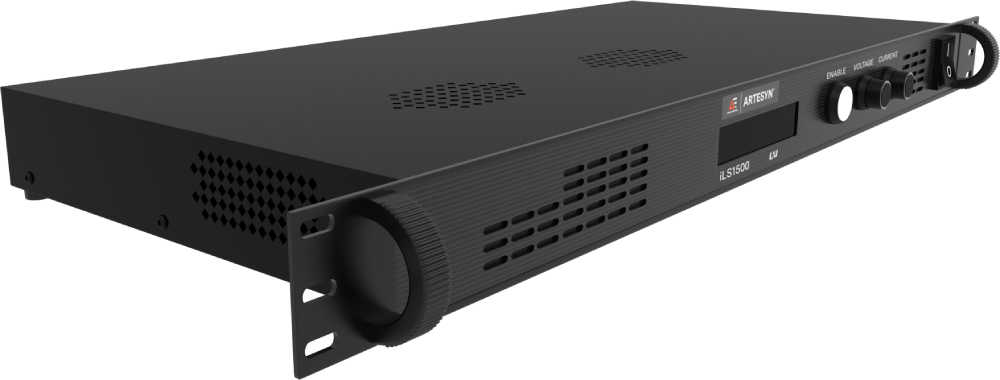

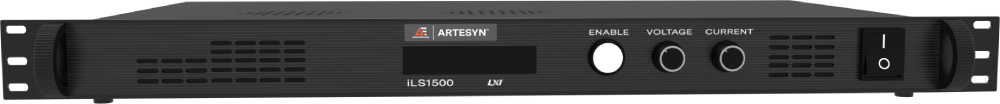

Advanced Energy’s Artesyn iLS1500 series is a programmable DC power supply with a single 1500 Watt output. With 12-bit D/A & A/D converters embedded, the power supplies come with the capability of reporting voltage and current very

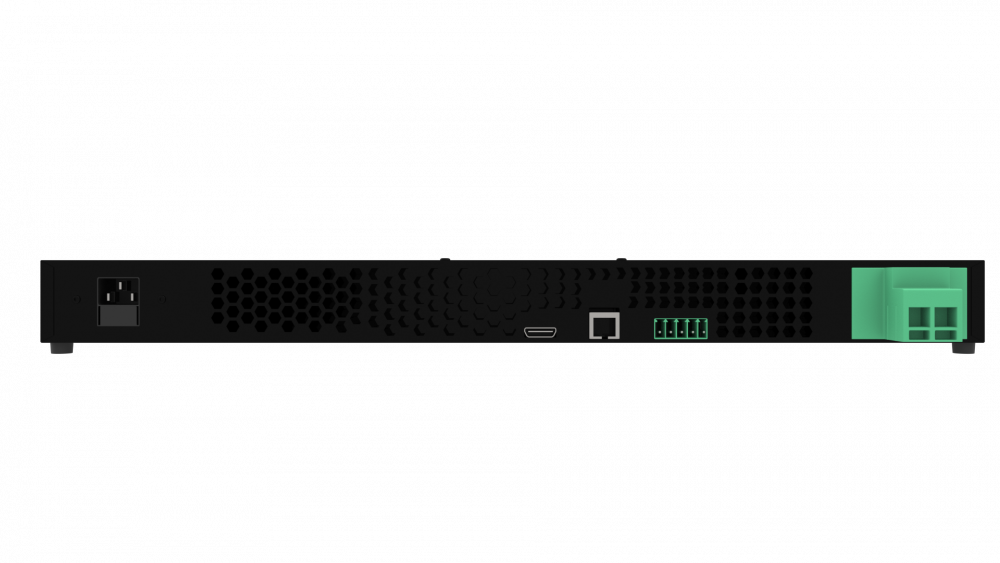

accurately. The iLS1500 series provides convenient dynamic rotary controls for voltage and current adjustment. The power supplies also come with rear ports that allow remote control via USB, Ethernet, and analog control inputs and they are designed to offer either bench use or rack mounting. The iLS1500 series is LXI certified, details for using this interface can be found in our Programming Manual.
accurately. The iLS1500 series provides convenient dynamic rotary controls for voltage and current adjustment. The power supplies also come with rear ports that allow remote control via USB, Ethernet, and analog control inputs and they are designed to offer either bench use or rack mounting. The iLS1500 series is LXI certified, details for using this interface can be found in our Programming Manual.
-
Total Max Power:
1,500 W -
Total Max Current:
70 A -
Input Voltage:
100 V to 240 V -
Output Voltage:
30 V to 400 V -
Outputs:
Single -
Size (L x W x H):
15.500" x 19.000" x 1.730" -
Warranty:
3 years -
Operating Temperature:
0-40
