MPM Series
Compact, Proportional, DC-to-DC Power Supplies
• Maximum Output Voltage/Power: 3 kV DC/1.5 W
• Type: Single output
• Ripple: < 5000 ppm
• Control Interface: Proportional
• Temperature Coefficent: < 300 ppm/°C
• Maximum Output Voltage/Power: 3 kV DC/1.5 W
• Type: Single output
• Ripple: < 5000 ppm
• Control Interface: Proportional
• Temperature Coefficent: < 300 ppm/°C

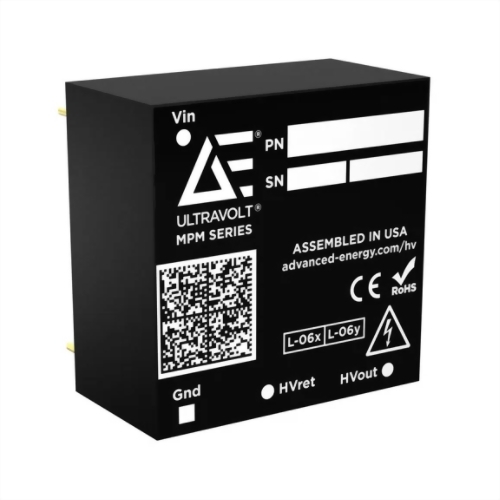

Advanced Energy's UltraVolt MPM series of
reliable, general-purpose high voltage modules features eight compact,
PCB-mountable form factors that range from 100 to 3000 VDC. All modules deliver
up to 1.5 W of power from a 12 or 24 VDC input. Single-output positive or
negative polarities are available. Reversed input polarity,
intermittent-output, and open-/short-circuit protection is standard. Choose
from non-isolated and isolated output options and select shielded or unshielded
configurations to guard output from external radiated emissions.
- Simplify high voltage subsystem design
- PCB size and enclosure packaging requirements
- Upgrade module and system performance without changing PCB layout
- Increase power subsystem robustness
- Add protection from line noise and external RF emissions
- Single pin provides both module power and control of high voltage output
- Compact, low-profile, PCB-mountable package
- Selection of high voltage outputs: 100 to 3000 VDC, positive or negative polarity
- Input polarity protection; output protection from intermittent open- or short-circuits
- Available input/output isolation to 100 VDC, metal shielding options
