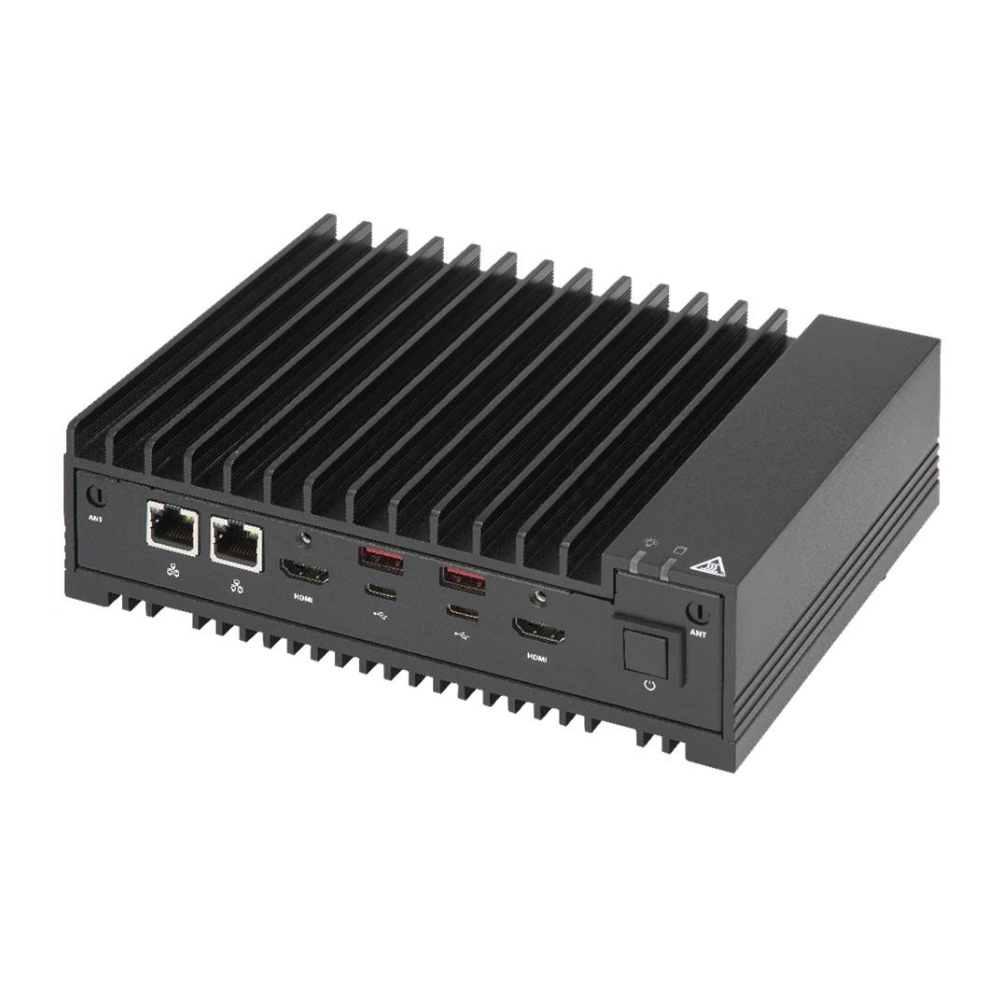

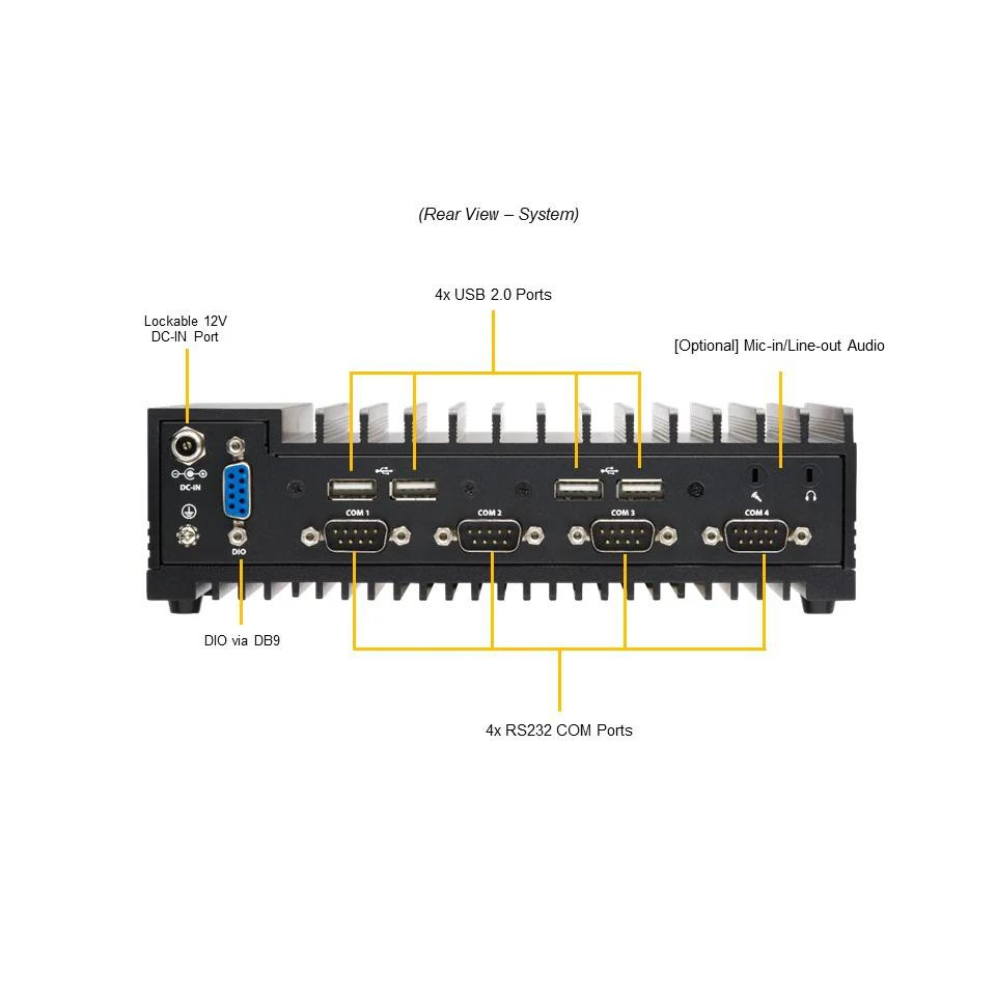

SYS-E100-13AD-H 嵌入式超級伺服器

• 12th Generation Intel® Celeron® 7305E&Core™ i7-1265UE/i5-1245UE/i3-1215UE
• 2x DDR5-4800MHz Non-ECC SO-DIMM max 64GB
• M.2 M/B/E-Key with Nano SIM Card Slot
• 2x LAN 2.5GbE
• Fanless (Op. Temperature 0C ~ +50C)
• 4 Independent Displays: HDMI2.0b/1.4b + DP 1.4a (Alt mode USB Typ-C)

型號 : SYS-E100-13AD-H

數量 :

Product SKUs
SuperServer SYS-E100-13AD-H (Black)

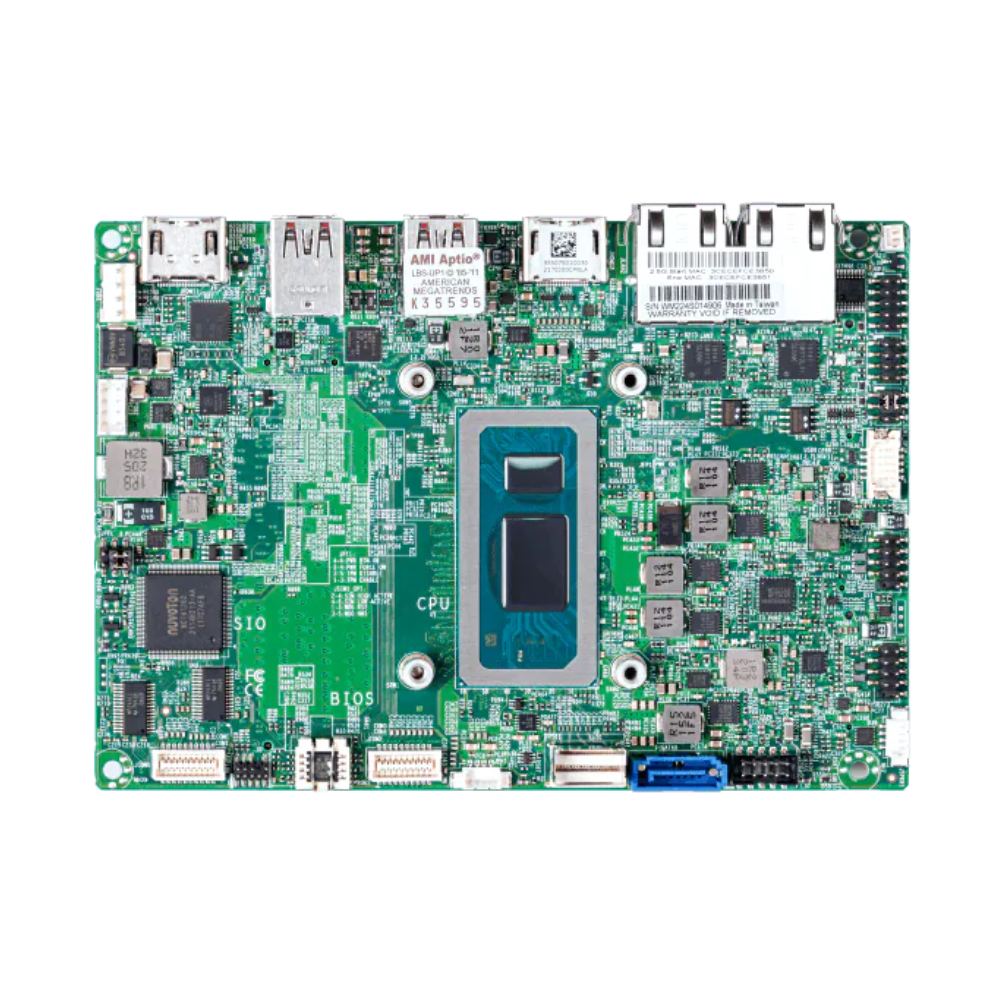

Motherboard
Super X13SAN-H-WOHS

Processor
CPU	Single Single Socket FCBGA1744 Intel® Core™ i7-1265UE
Core Count	Up to 10C/20T; Up to 12MB Cache per CPU
Note	Supports up to 28W TDP CPUs (Air Cooled)

System Memory
Memory	Memory Capacity: 2 DIMM slots Up to 64GB: DDR5 SO-DIMM non ECC Memory Type: 4800MHz DDR5 SO-DIMM
Memory Voltage	1.1 V

On-Board Devices
Chipset	intel System on Chip
Network Connectivity	2x 2.5GbE BaseT with Intel I225-IT

Input / Output
LAN	2 RJ45 2.5 Gigabit Ethernet LAN port

System BIOS
BIOS Type	AMIUEFI
BIOS Features	ACPI 6.4 PCI F/W 3.0 SMBIOS 3.5 or later UEFI 2.8

Management
Power Configurations	Force power-on by jumper Control of power-on for recovery from AC power loss DC 12V~24V Wide power range input CPU thermal trip support for processor protection ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0

Chassis
Form Factor	3.5" SBC
Model	CSE-E101-04

Dimensions and Weight
Height	1.73" (44mm)
Width	7.68" (195mm)
Depth	5.94" (150mm)
Package	5.12" (H) x 11.81" (W) x 11" (D)
Weight	Net Weight: 2.16 lbs (0.98 kg) Gross Weight: 4.3 lbs (1.95 kg)
Available Color	Black

Front Panel
Buttons	Power On/Off
LEDs	HDD Status LAN1 activity LAN2 activity Power status

Drive Bays / Storage
Drive Bays	N/A
M.2	1x M-Key 2242 / 2280 (PCIe 4.0 x4 (Add Optional Kit MCP-270-10105-0B when selecting NVMe type storage)) 1x E-Key 2230 (PCIe 3.0 x1/USB 2.0/Intel CNVi) 1x B-Key 2242 / 2280 / 3042 (SATA 6Gb/s or PCIe 3.0 x1/USB 3.0/USB 2.0)

System Cooling
Fans	N/A

Power Supply
84W Level power supply
AC Input	84W: 100-240Vac / 47-63Hz

Operating Environment
Environmental Spec.	Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
Note	Non-operating Relative Humidity: 5% to 95% (non-condensing) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) with 0.7 m/s air flow (The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature) Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis

12th Generation Intel® Celeron® 7305E&Core™ i7-1265UE/i5-1245UE/i3-1215UE
2x DDR5-4800MHz Non-ECC SO-DIMM max 64GB
M.2 M/B/E-Key with Nano SIM Card Slot
2x LAN 2.5GbE
Fanless (Op. Temperature 0C ~ +50C)
4 Independent Displays: HDMI2.0b/1.4b + DP 1.4a (Alt mode USB Typ-C)

Standard Parts (Parts Included)
	Part Number	Qty	Description
Motherboard / Chassis	MBD-X13SAN-H-WOHS CSE-E101-04	1 1	Super X13SAN-H-WOHS Motherboard 3.5" SBC Chassis
Cable	CBL-PWCD-0260-IS	1	PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
	CBL-CUSB-0985	2	USB 2.0,INT-EXT,2 PORT,TYPE-A-2X5/P2.00, 18CM
	CBL-CUSB-1047	1	SERIAL, DB9F TO 2X5F/P2.00,INT TO EXT,FLAT, 30CM, 28AWG
	CBL-OTHR-1046	1	2x LED (green, orange) to 8P/F/P2.00 + push button switch, 32CM, 26AWG
Power Supply	MCP-250-10137-0N	1	84W Lockable AC to DC power adapter w/o power cord - EN62368
Heatsink / Retention	MCP-350-10103-0N	1	for X13SAN in system
Manual	MNL-2622-QRG	1	E100-13AD-H/E/L/C Quick Reference Guide
