MBD-X11SCZ-Q 工業級主機板

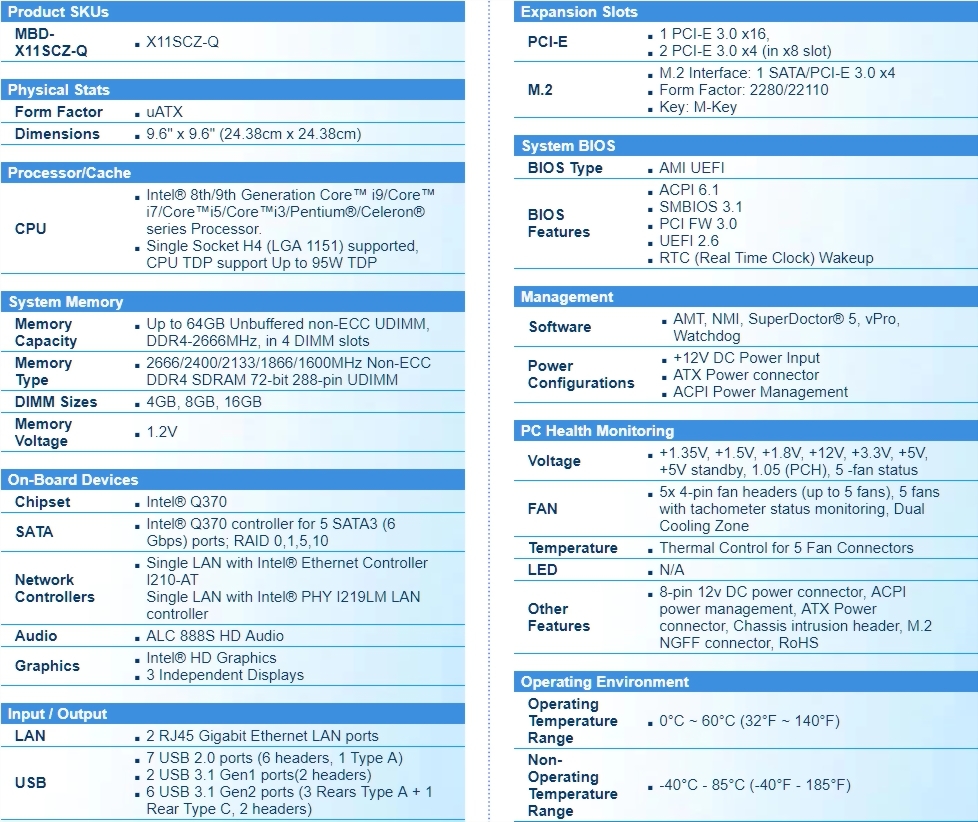

Intel®8th/9thGenerationCore™,i9/Core™,i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP,Intel® Q370,Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots:1 PCI-E 3.0 x16,2 PCI-E 3.0 x4 (in x8 slot),M.2 Interface: 1 SATA/PCI-E 3.0 x4,M.2 Form Factor: 2280/22110,M.2 Key: M-Key
型號 :
X11SCZ-Q
- Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
- Intel® Q370
- Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
-
1 PCI-E 3.0 x16,
2 PCI-E 3.0 x4 (in x8 slot)
M.2 Interface: 1 SATA/PCI-E 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key -

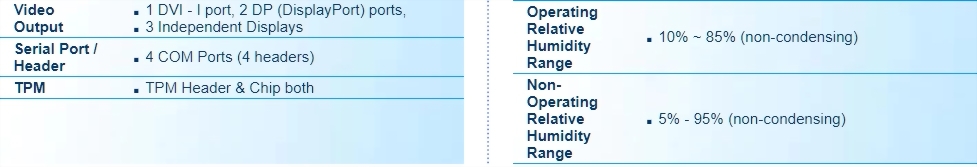

1 DVI - I port, 2 DP (DisplayPort) ports,
3 Independent Displays - Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
-
Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Parts List
| Parts List (Bulk Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X11SCZ-Q | 1 | X11SCZ-Q Motherboard |
| I/O Cables | CBL-0044L | 2 | 57.5CM SATA FLAT S-S PBF |
| I/O Shield | MCP-260-00126-0N | 1 | Standard I/O Shield for X11SCZ with EMI Gasket |
| Parts List (Retail Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X11SCZ-Q | 1 | X11SCZ-Q Motherboard |
| QRG | MNL-2086-QRG | 1 | Motherboard Quick Reference Guide |
| I/O Cables | CBL-0044L | 5 | 57.5CM SATA FLAT S-S PBF |
| I/O Shield | MCP-260-00126-0N | 1 | Standard I/O Shield for X11SCZ with EMI Gasket |
| Optional Parts List | |||
| Name | Part Number | Qty | Description |
| Serial Port Cable | CBL-CUSB-0984 | -- | Dual Serial Port Breakout Cable 20cm |
| 1U I/O Shield | MCP-260-00127-0N | -- | 1U I/O Shield for X11SCZ with EMI Gasket in SC813 Chassis |
| 1U I/O Shield | MCP-260-00128-0B | -- | 1U I/O Shield for X11SCZ with EMI Gasket in SC510 Chassis |
