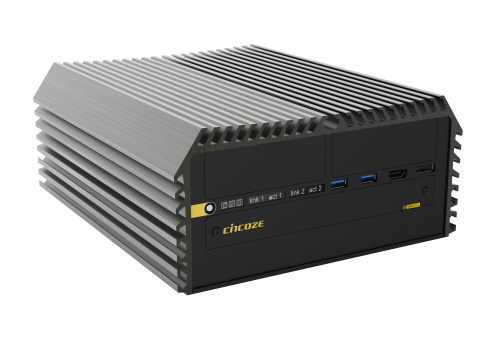

DS-1301

10th Generation Intel® Xeon/Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot
型號 : DS-1301

The DS-1301 is a powerful embedded computer and brings unrivalled performance. It has versatile functionalities and rich industrial I/O. And most importantly, it has one PCI/PCIe expansion capability. Equipped with Cincoze’s CMI, CFM, MEC modular expansion, customization for additional I/O or other functionality to fulfill different applications couldn’t be easier. The DS-1301 meets the requirements of industrial environments and is certified with industry standards. It delivers ultimate and reliable performance for factory automation, industrial automation and rolling stock applications.

Model Name DS-1301
System Processor IIntel® Xeon® Series Processor ( 80W / 35W ):
• Intel® Xeon® W-1270E 8 Cores Up to 4.8 GHz, TDP 80W
• Intel® Xeon® W-1250E 6 Cores Up to 4.7 GHz, TDP 80W
• Intel® Xeon® W-1290TE 10 Cores Up to 4.5 GHz, TDP 35W
• Intel® Xeon® W-1270TE 8 Cores Up to 4.4 GHz, TDP 35W
• Intel® Xeon® W-1250TE 6 Cores Up to 3.8 GHz, TDP 35W
Intel® Core® Series Processor ( 65W / 35W ):
• Intel® Core™ i9-10900E 10 Cores Up to 4.7 GHz, TDP 65W
• Intel® Core™ i7-10700E 8 Cores Up to 4.5 GHz, TDP 65W
• Intel® Core™ i5-10500E 6 Cores Up to 4.2 GHz, TDP 65W
• Intel® Core™ i3-10100E 4 Cores Up to 3.8 GHz, TDP 65W
• Intel® Core™ i9-10900TE 10 Cores Up to 4.5 GHz, TDP 35W
• Intel® Core™ i7-10700TE 8 Cores Up to 4.5 GHz, TDP 35W
• Intel® Core™ i5-10500TE 6 Cores Up to 3.7 GHz, TDP 35W
• Intel® Core™ i3-10100TE 4 Cores Up to 3.6 GHz, TDP 35W
Intel® Pentium® Series Processor ( 58W / 35W ):
• Intel® Pentium® G6400E 2 Cores Up to 3.8 GHz, TDP 58W
• Intel® Pentium® G6400TE 2 Cores Up to 3.2 GHz, TDP 35W
• Intel® Celeron® Series Processor ( 58W / 35W ):
• Intel® Celeron® G5900E 2 Cores Up to 3.2 GHz, TDP 58W
• Intel® Celeron® G5900TE 2 Cores Up to 3.0 GHz, TDP 35W
Chipset Intel® W480E Chipset
Memory • 2x DDR4 SO-DIMM Socket, Support Up to 64GB ( Un-buffered and non-ECC)
• Xeon / i9 / i7 Processor Supports Up to 2933MHz
• i5 / i3 Processor Supports Up to 2666 MHz
• Pentium / Celeron Processor Supports Up to 2400MHz
BIOS AMI BIOS
Graphics Graphics Engine Integrated Intel® UHD-630 Graphics
Maximum Display Output Supports Triple Independent Display
HDMI 1 x HDMI Connector (4096 x 2160@30Hz)
DP 2 x DisplayPort Connector (4096 x 2340@60Hz)
VGA 1 x VGA Connector (1920 x 1200 @60Hz)
Audio Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1 x Line-out, Phone Jack 3.5mm
Mic-in 1 x Mic-in, Phone Jack 3.5mm
I/O LAN • 2 x GbE LAN, RJ45
- GbE1: Intel® I219
- GbE2: Intel® I210
COM 2 x RS-232/422/485 with Auto Flow Control ( Supports 5V / 12V ), DB9
USB • 2 x 10Gbps USB 3.2 Gen2, Type A
• 4 x 5Gbps USB 3.2 Gen1, Type A
• 2 x 480Mbps USB 2.0, Type A
PS/2 1 x PS/2, 6 Pin Mini-DIN Female Connector
Storage SSD/HDD • 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
• 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 )
mSATA 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
M.2 SSD 1x M.2 Key M Type 2280 Socket, Support PCIe x4 NVMe SSD or SATA SSD ( SATA 3.0 )
RAID Support RAID 0/1/5/10
Expansion PCI Express • 1 x PCI/PCIe Expansion Slot with Optional Riser Card
* Supports maximum dimensions of add-on card (H x L): 111.15 x 235 mm
Mini PCI Express 3 x Full-size Mini-PCIe Socket
SIM Socket 2 x SIM Socket
CMI (Combined Multiple I/O) Interface • 2 x High Speed CMI Interface for optional CMI Module Expansion
• 2 x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface 1 x CFM IGN Interface for optional CFM-IGN Module Expansion
Other Function External FAN Connector 1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition Sensing Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch 1 x Clear CMOS Switch
Rest Button 1 x Rest Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Power Power Button 1 x ATX Power On/Off Button
Power Mode Switch 1 x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED 1 x Remote Power LED, 2-pin Terminal Block
Total Power Budget 180W
Physical Dimension ( W x D x H ) 227 x 261 x 108 mm
Weight Information 5.04 KG
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall Mount
Physical Design • Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & Protection Reverse Power Input Protection Yes
Over Voltage Protection • Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
Surge Protection 3.84 kV (impedance 12 ohm 1.2/50us waveform)
CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF • 371,393 Hours
- Database: Telcordia SR-332 Issue 3, Method 1, Case 3
Operating System Windows Windows® 10
Linux Supports by project
Environment Operating Temperature

• 35W TDP Processor: -40°C to 70°C
• 58W – 65W TDP Processor: -40~50°C (With External Fan Kit)
• 80W TDP Processor: -40~40°C (With External Fan Kit)

* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14

Storage Temperature -40°C to 85°C
Relative Humidity 95%RH @ 70°C (non-Condensing)
Shock MIL-STD-810G
Vibration MIL-STD-810G
EMC CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway)
Safety IEC/EN 62368-1

• 10-core 10th-gen Intel® Xeon® and Core™ i9/i7/i5/i3 CPU (max 80 W TDP)

• 2x GbE LAN and optional 2x 10GbE LAN

• 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD

• 1x PCI/PCIe expansion slot

• 3x full-size Mini PCIe sockets, 2x SIM card slots

• Optional CMI modules for I/O expansion

• Optional CFM modules for ignition sensing & PoE

• Wide operating temperature -40°C to 70°C

• MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)
