MBD-X11SPi-TF 工業級主機板
2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors., Single Socket P (LGA 3647) supported, CPU TDP support 205W,Intel® C622,Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots,2 10GbE LAN ports,10 SATA3 (6Gbps) via C622
型號 :
X11SPi-TF

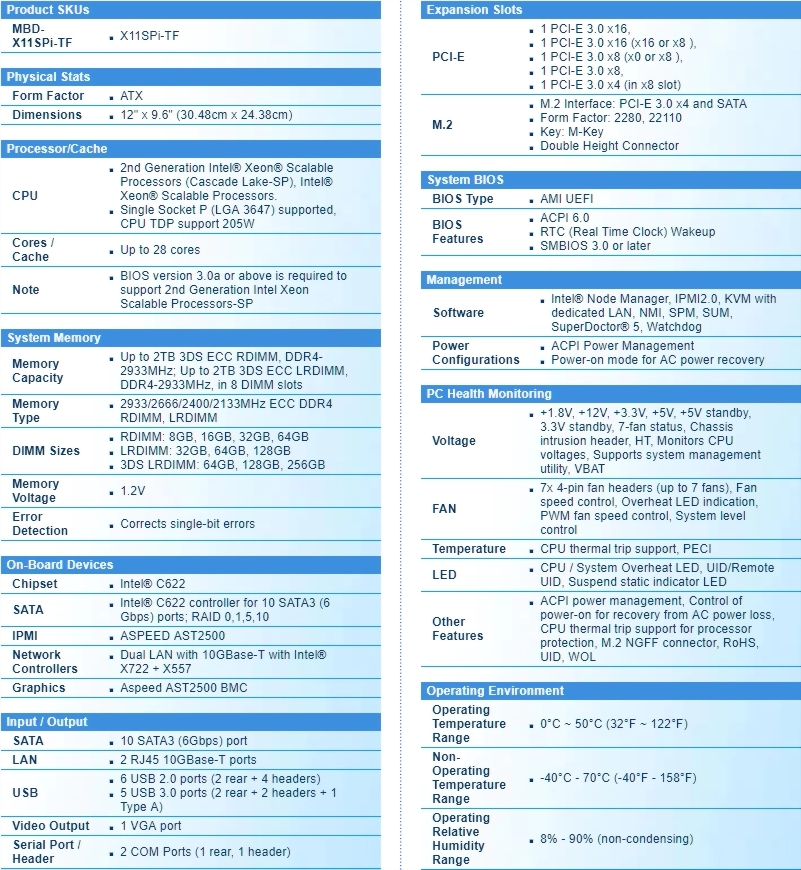

- 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors., Single Socket P (LGA 3647) supported, CPU TDP support 205W
- Intel® C622
- Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
-
Expansion slots:
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x16 (x16 || x8),
1 PCI-E 3.0 x8 (x0 || x8),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8) - 2 10GbE LAN ports
- 10 SATA3 (6Gbps) via C622
- I/O: 1 VGA, 2 COM, TPM header
- 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
-
M.2 NGFF connector
M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2280, 22110
Key: M-Key
Double Height Connector
Parts List
| Parts List (Bulk Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X11SPi-TF | 1 | X11SPi-TF Motherboard |
| I/O Cables | CBL-0044L | 2 | 57.5 cm SATA FLAT S-S PBF |
| I/O Shield | MCP-260-00042-0N | 1 | STD I/O Shield for X11SPi-TF with EMI Gasket |
| Parts List (Retail Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X11SPi-TF | 1 | X11SPi-TF Motherboard |
| QRG | MNL-1900-QRG | 1 | Motherboard Quick Reference Guide |
| I/O Cables | CBL-0044L | 6 | 57.5 cm SATA FLAT S-S PBF |
| I/O Shield | MCP-260-00042-0N | 1 | STD I/O Shield for X11SPi-TF with EMI Gasket |
| Optional Parts List | |||
| Name | Part Number | Qty | Description |
| TPM security module | AOM-TPM-9670H | SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor | |
| TPM security module | AOM-TPM-9670V | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor | |
| TPM security module | AOM-TPM-9671H | SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor | |
| TPM security module | AOM-TPM-9671V | SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor | |
