A2SAN-LN4-C 嵌入型單板電腦
• Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
• Intel® Celeron® Processor J3455 (10W, 4C)
• Quad LAN with Intel® Ethernet Controller I211-AT
• Intel® Goldmont microarchitecture 14nm System-on-Chip
• Supports 12V DC power input
• 3 M.2 B-Key 2242/3042 with nano SIM slot, 1 M.2 E-Key 2230
• 2 USB 3.0 ports, 2 USB 2.0 ports, 1 SATA 3.0, SMBus
• Intel® Celeron® Processor J3455 (10W, 4C)
• Quad LAN with Intel® Ethernet Controller I211-AT
• Intel® Goldmont microarchitecture 14nm System-on-Chip
• Supports 12V DC power input
• 3 M.2 B-Key 2242/3042 with nano SIM slot, 1 M.2 E-Key 2230
• 2 USB 3.0 ports, 2 USB 2.0 ports, 1 SATA 3.0, SMBus

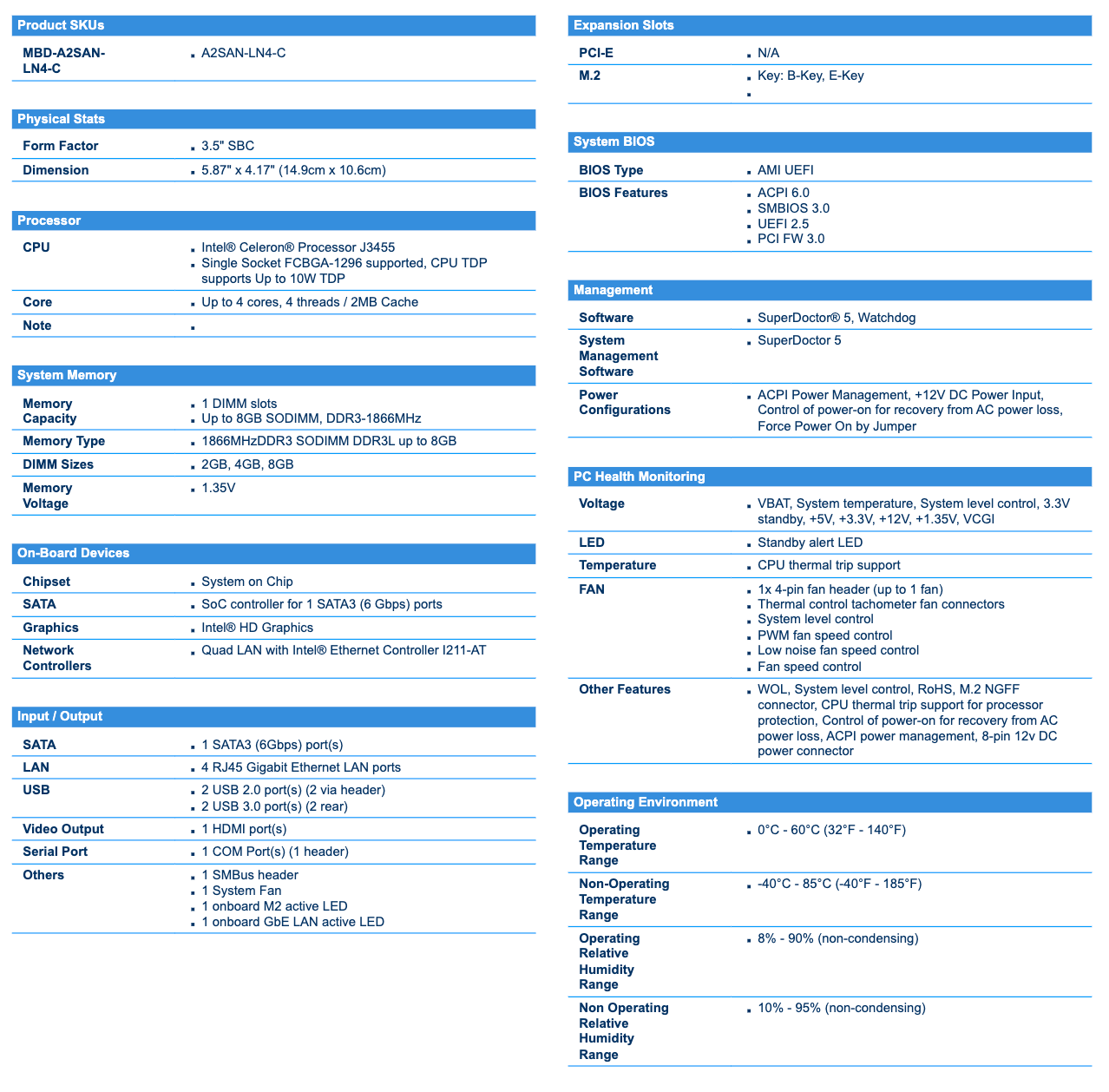

型號 :
A2SAN-LN4-C
- Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
- Intel® Celeron® Processor J3455 (10W, 4C)
- Quad LAN with Intel® Ethernet Controller I211-AT
- Intel® Goldmont microarchitecture 14nm System-on-Chip
- Supports 12V DC power input
- 3 M.2 B-Key 2242/3042 with nano SIM slot, 1 M.2 E-Key 2230
- 2 USB 3.0 ports, 2 USB 2.0 ports, 1 SATA 3.0, SMBus
| Parts List (Bulk Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-A2SAN-LN4-C | 1 | A2SAN-LN4-C Motherboard |
| A2SAN-LN4-C Heatsink | SNK-C0103L-1 | 1 | A2SAN-LN4-C Heatsink Height 19mm |
| DC IN Power cable | CBL-PWEX-1029 | 1 | DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm |
| SATA cable | CBL-SAST-0881 | 1 | SATA Data cable 25CM |
| SATA Power Cable | CBL-PWEX-0982 | 1 | SATA Power Cable 25cm |
| Parts List (Retail Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-A2SAN-LN4-C | 1 | A2SAN-LN4-C Motherboard |
| A2SAN-LN4-C Heatsink | SNK-C0103L-1 | 1 | A2SAN-LN4-C Heatsink Height 19mm |
| COM Port Cable | CBL-OTHR-1061-15 | 1 | COM Cable 15cm |
| DC IN Power cable | CBL-PWEX-1029 | 1 | DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm |
| QRG | MNL-2285-QRG | 1 | Motherboard Quick Reference Guide |
| SATA cable | CBL-SAST-0881 | 1 | SATA Data cable 25CM |
| SATA Power Cable | CBL-PWEX-0982 | 1 | SATA Power Cable 25cm |
| USB Cable | CBL-CUSB-0983 | 1 | USB2.0 cable 20cm |
| Optional Parts List | |||
| Name | Part Number | Qty | Description |
| DC IN Power Cable (DC Jack) | CBL-PWEX-1110-15 | 1 | DC IN Power cable 2x4P to 5.5x2.5 DC JACK with 17cm |
| Power Adapter |
MCP-250-10135-0N MCP-250-10134-0N |
1 1 |
FSP 40W 12V 3.33A, AC to DC lockable power adapter,HF,RoHS 60W 12V 5A, AC to DC lockable power adapter,HF |
