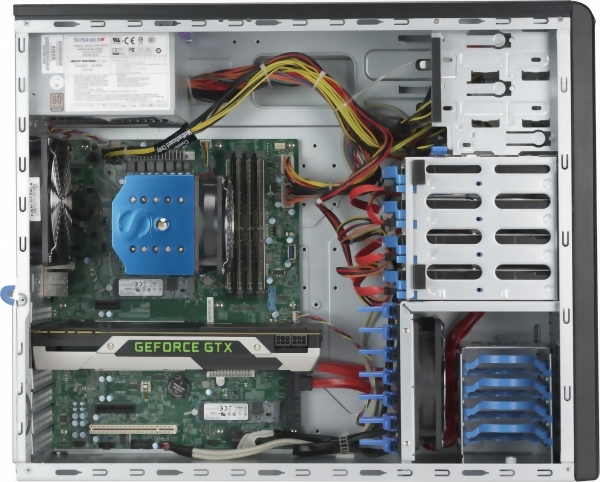

CPU
|
-
Single Socket H4 (LGA 1151),
CPU TDP support up to 95W
-
Support Intel® Xeon® E processors, 8th/9th Gen. Intel® Core™ i9/i7/i3 Processors, Intel® Celeron®, Intel® Pentium®
|
Core/Cache
|
|
|
|
Memory Capacity
|
-
4 DIMM slots
-
Up to 128GB* ECC/non-ECC UDIMM
-
Up to DDR4-2666MHz
|
Memory Type
|
-
2666/2400/2133MHz ECC DDR4 SDRAM
|
DIMM Sizes
|
|
Note
|
* BIOS must be 1.0c or newer
|
|
|
Chipset
|
|
SATA
|
-
SATA3 (6Gbps) via Intel C246 controller
-
RAID 0, 1, 5, 10 support
|
Network Controllers
|
-
Single LAN with Intel® I210-AT
-
Single LAN with Intel® PHY I219LM
|
|
|
SATA
|
-
8 SATA3 (6Gbps) ports from Intel® C246
|
LAN
|
-
2 RJ45 Ethernet LAN ports
|
USB
|
-
2 USB 3.1 Gen 2 Type A and Type C (rear)
-
4 USB 3.1 Gen 1 (2 rear + 2 front)
-
2 USB 2.0 (front)
|
Video
|
-
1 HDMI (2.0a) port
-
1 DVI-D port, 1 DisplayPort 1.2 port
|
Audio
|
|
Serial Port / Header
|
|
TPM
|
|
|
|
PCI-Express
|
-
2 PCI-E 3.0 x16 running at NA/16 or 8/8
-
1 PCI-E 3.0 x4 slot
-
1 PCI-E 3.0 x1 slot
-
1 PCI 32bit 5V slot
|
M.2
|
-
M.2 Interface: 2 PCI-E 3.0 x4
-
M.2 Form Factor: 2260/ 2280/ 22110
-
M.2 Key: M-Key
-
U.2 Interface: 1 PCI-E 3.0 x4 (Shared with M.2#2)
|
|
|
BIOS Type
|
|
BIOS Features
|
-
ACPI 3.0 or later
-
SMBIOS 2.7 or later
-
SPI dual/quad speed support
-
RTC wakeup
|
|
|
|
Height
|
|
Width
|
|
Depth
|
|
Gross Weight
|
|
Available Colors
|
|
|
|
Buttons
|
|
LEDs
|
-
Power LED
-
Hard drive activity LED
-
Network activity LED
-
System Information LED
|
Ports
|
-
2 USB 2.0 ports, 2 USB 3.1 Gen 1 ports
-
1 Line-out, 1 Mic-in
|
|
|
Internal
|
-
4 Fixed 3.5" drive bays
-
Optional 4 internal 2.5" drive bays
-
Enterprise SATA HDD only recommended
|
Peripheral
|
-
2 Standard 5.25" Peripheral drive bays
-
1 Internal 3.5" Fixed device bay
|
|
|
Fans
|
-
1x 12cm rear exhaust fan
-
Optional 1x 12cm front cooling fan
|
|
|
500W AC power supply w/ PFC
|
AC Voltage
|
-
100 - 240V, 50-60Hz, 7-3.5 Amp
|
+5V
|
|
+5V standby
|
|
+12V1
|
|
+12V2
|
|
+12V3
|
|
+12V4
|
|
-12V
|
|
+3.3V
|
|
Certification
|

Bronze Certified
[ Test Report ]
|
|
|
CPU
|
-
Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
-
4+2-Phase-switching voltage regulator
|
FAN
|
-
Low noise fan speed control
|
Temperature
|
-
Monitoring for CPU and chassis environment
-
Thermal Control for 5x 4-pin fan connectors
-
PECI
|
|
|
RoHS
|
|
Environmental Spec.
|
-
Operating Temperature:
10°C to 35°C (50°F to 95°F)
-
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
-
Operating Relative Humidity:
8% to 90% (non-condensing)
-
Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
