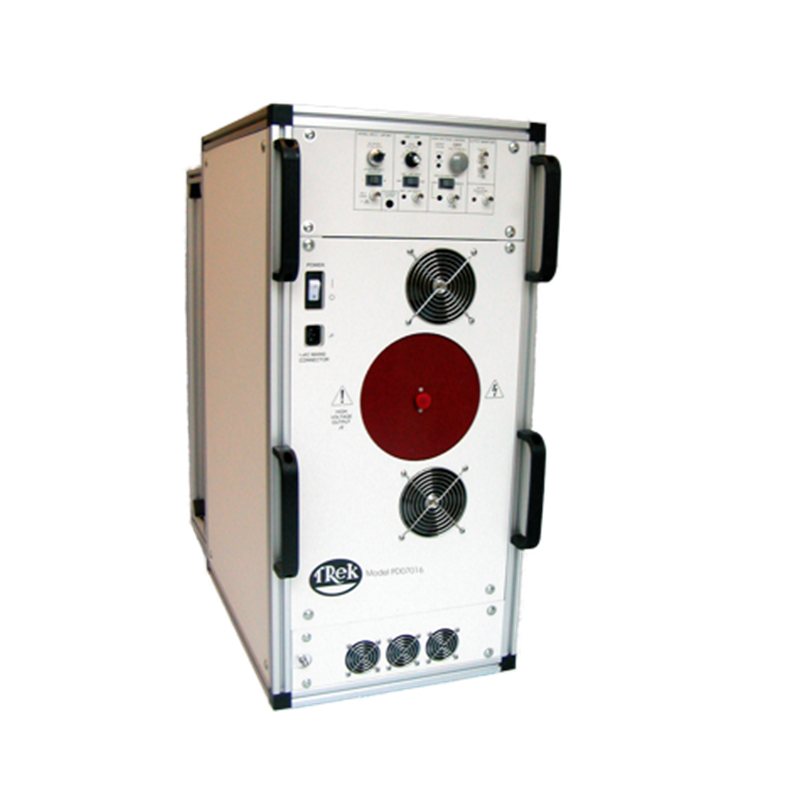

Trek PD07016 高壓放大器
With its solid-state design, high slew rate, extensive bandwidth, and low noise operation, Advanced Energy’s DC-stable Trek PD07016 high voltage amplifier is a smart choice for automated and controlled systems, or for providing feedback signals in a closed-loop system.
• Output Voltage Range: 0 to ±10 kV DC or peak AC
• Output Current Range: 0 to ±60 mA DC, 0 to ±300 mA peak capability for 20 µs
• Slew Rate: Greater than 1000 V/µs
• Large Signal Bandwidth: DC to greater than 10 kHz (2% distortion)
• Gain: 1000 V/V
The non-inverting Trek® PD07016 high voltage amplifier has a fixed gain of 1000 V/V. It is protected against over-voltage and over-correct conditions generated by active loads or output short circuits to the ground. Precision voltage and current indicators provide low voltage representations of the high voltage output and load current for monitoring or use as feedback signals in a closed-loop system.
Benefits
- Benefit from a closed-loop system and achieve high accuracy
- Take advantage of complete solid-state design and maintenance-free operation
- Rely on ultra-accurate outputs thanks to low-output noise
- Protect against overvoltage and overcurrent conditions generated by active loads
- Drive capacitive loads via a four-quadrant output
Dimensions: 91.4 cm H x 43 cm W x 87 cm D (36” H x 17” W x 34” D) Depth dimension includes handles and spacing for air flow.
Weight: 73 kg (160 lb) approximate
HV Connector: Caton high-voltage Connector
BNC Connectors: Amplifier Input, Voltage Monitor, Current Monitor, Remote High Voltage ON/OFF, Out of Regulation Status, Fault/Trip Status
Temperature: 0°C to 40°C (32°F to 104°F)
Relative Humidity: To 75%, noncondensing
Altitude: To 1524 meters (5000 ft.)
- Dynamic adjustment capabilities to optimize the AC response for various load parameters
- Inverting and differential options available
- NIST-traceable calibration certificate provided with each unit
- DC-stable for programmable supply applications
- CE compliant (230 VAC unit only)
- Automated or computer controlled systems
- Providing feedback signals in closed-loop systems
