SuperServer 4028GR-TXR

Product SKUs SYS-4028GR-TXR SuperServer 4028GR-TXR (Black)   Motherboard Super X10DGO   Processor/Cache CPU Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011) Cores / Cache Up to 22 Cores† / Up to 55MB† Cache System Bus QPI up to 9.6 GT/s Note † BIOS version 2.0 or above is required Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. GPU 8 NVIDIA® Tesla® P100 SXM2 NVIDIA® NVLINK™ up to 80GB/s   System Memory Memory Capacity 24x 288-pin DDR4 DIMM slots Up to 3TB† ECC 3DS LRDIMM, 2TB ECC RDIMM Memory Type 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors   On-Board Devices Chipset Intel® C612 chipset SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Dual Port 1GbE with Intel i350 Ethernet Controller Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Graphics ASPEED AST2400 BMC   Input / Output SATA 10 SATA3 (6Gbps) ports LAN 2 RJ45 1GbE LAN ports 1 RJ45 Dedicated IPMI LAN port USB 2 USB 3.0 ports Video 1 VGA Connector Serial Port 1 Serial header   System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI® BIOS BIOS Features Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 USB Keyboard support SMBIOS 2.7.1 UEFI

Chassis Form Factor 4U Rackmountable Rackmount Kit (MCP-290-31401-0N) Model CSE-R422BG-2   Dimensions Height 7.0" (178mm) Width 17.6" (447mm) Depth 31.7" (805mm) Weight Net Weight: 80 lbs (36.2 kg) Gross Weight: 135 lbs (61.2 kg) Available Colors Black   Drive Bays Hot-swap 16 Hot-swap 2.5" SATA/SAS drive bays   Expansion Slots PCI-Express 4 PCI-E 3.0 x16 (low-profile) slots 2 PCI-E 3.0 x8 slots M.2 M.2 Interface: PCI-E 3.0 x4 Form Factor: 2260, 2280, 22110   System Cooling Fans 8x 92mm Cooling Fans Shrouds 1 Air Shroud (MCP-310-41808-0B)   Power Supply 2200W Redundant Titanium Level Power Supplies with PMBus Total Output Power 1200W/1800W/1980W/2090W/2200W (UL/cUL only) Dimension (W x H x L) 106.5 x 82.4 x 203.5 mm Input 1200W: 100-127 Vac / 14-11 A / 50-60 Hz 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only) 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only) 2090W: 230-240 Vdc / 10-9.8 A (CCC only) +12V Max: 100A / Min: 0A (1200W) Max: 150A / Min: 0A (1800W) Max: 165A / Min: 0A (1980W) Max: 174.17A / Min: 0A (2090W) Max: 183.3A / Min: 0A (2200W) Max: 174.17A / Min: 0A (2090W) 12Vsb Max: 2A / Min: 0A Output Type Gold Finger (connector on M/P) Certification   Titanium Level   [ Test Report ]   PC Health Monitoring CPU Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V FAN 4-pin fan headers with tachometer status monitoring Low noise fan speed control mode Temperature Monitoring for CPU and system environment Thermal Control for 8 fan connectors Other Features Chassis intrusion detection   Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature:    10°C to 35°C (50°F to 95°F) Non-operating Temperature:    -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity:    8% to 90% (non-condensing) Non-operating Relative Humidity:    5% to 95% (non-condensing)

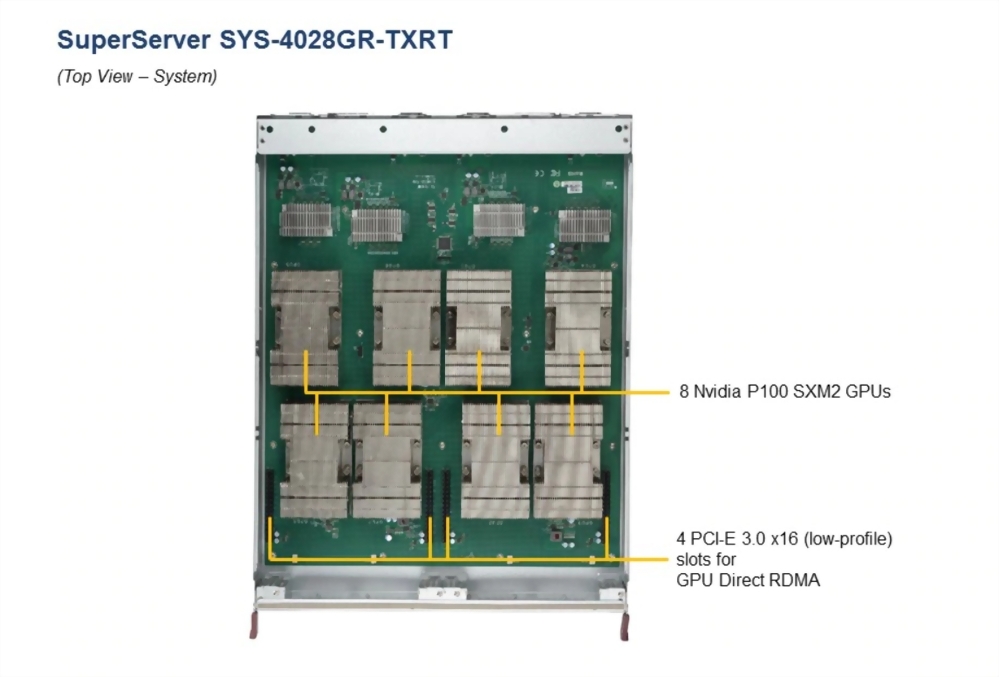

 - Up to 8 NVIDIA® Tesla® P100 SXM2
 - Up to 80 GB/s GPU-to-GPU NVIDIA® NVLINK™
 - Supports NVIDIA® GPUDirect™ RDMA

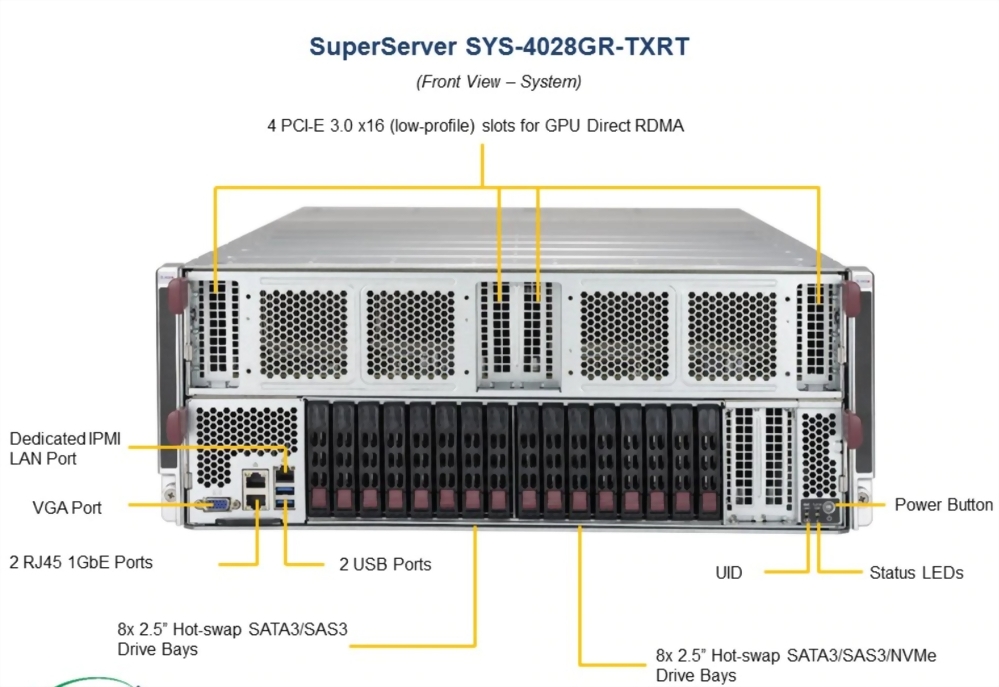

1. Dual socket R3 (LGA 2011) supports,Intel® Xeon® processor E5-2600,v4†/ v3 family; QPI up to 9.6GT/s 2. Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots 3. 4 PCI-E 3.0 x16 (low-profile) slots,2 PCI-E 3.0 x8 (low-profile) slots,M.2 Interface: PCI-E 3.0 x4,
    M.2 Form Factor: 2260, 2280, 22110 4. Dual 1GbE LAN with Intel® i350 5. 16 Hot-swap 2.5" SATA/SAS drives;Supports 8 NVMe drives 6. 8x 92mm cooling fans 7. 2200W Redundant (2+2) Power Supplies; Titanium Level (96%+)
