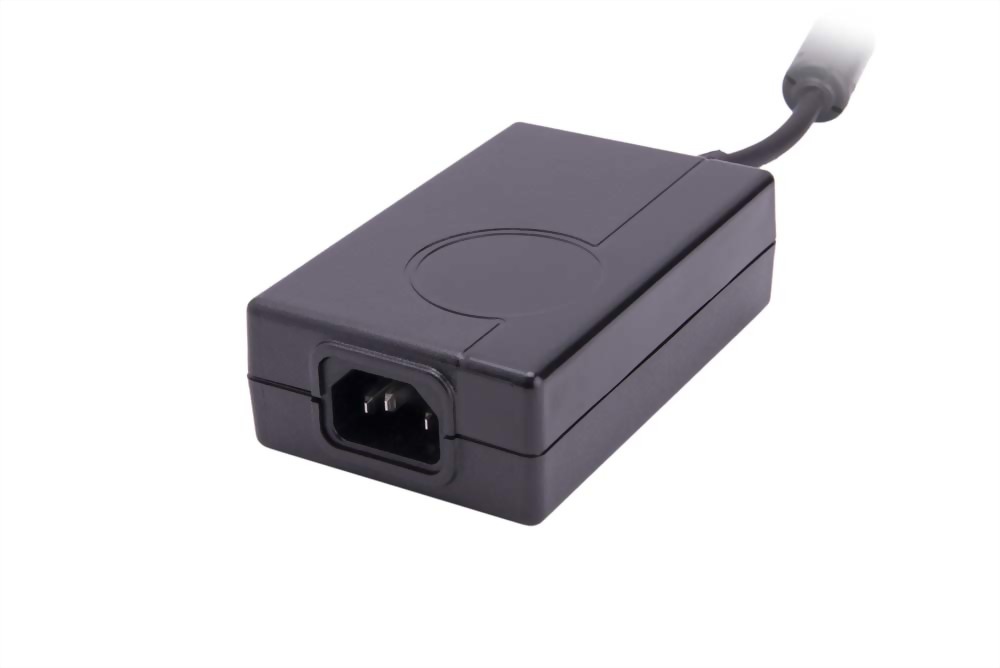

TE60 外接式電源
• A high performance power supply designed for Test and Measurement and Industrial applications.
• Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.
• Great EMI, EMC, and noise performance ensures easy integration into the end equipment.
• Meets DoE Efficiency Level VI Requirements
• -No load input power
• -Average Efficiency
• Up to 60W of AC-DC Power
• Universal Input 90-264Vac Input Range
• Desktop Style
• Meets “Heavy Industrial” Levels of EN61000 EMC Requirements
• Meets EN55022/CISPR22, FCC Part 15.109 Class B Conducted & Radiated Emissions, with 6db margin
• Approved to EN/IEC/UL60950-1, 2nd Ed., Am.2
• E-cap life of >8 years
• >900,000 Hours MTBF
• IP22 Rated Enclosure
• Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
• Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.
• Great EMI, EMC, and noise performance ensures easy integration into the end equipment.
• Meets DoE Efficiency Level VI Requirements
• -No load input power
• -Average Efficiency
• Up to 60W of AC-DC Power
• Universal Input 90-264Vac Input Range
• Desktop Style
• Meets “Heavy Industrial” Levels of EN61000 EMC Requirements
• Meets EN55022/CISPR22, FCC Part 15.109 Class B Conducted & Radiated Emissions, with 6db margin
• Approved to EN/IEC/UL60950-1, 2nd Ed., Am.2
• E-cap life of >8 years
• >900,000 Hours MTBF
• IP22 Rated Enclosure
• Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
型號 :
TE60
| MAX WATTS | 60.00W |
| OUTPUT RANGE (VDC) | 5-48 |
| FORM FACTOR | Desktop |
| SIZE (METRIC/SAE) | 67.9 x 108 x 32.7 (2.67 x 4.25 x 1.29) |
| EFFICIENCY | Meets Efficiency Level VI Efficiency |
| SAFETY APPROVALS | IEC/EN/UL60950-1 |
- A high performance power supply designed for Test and Measurement and Industrial applications.
- Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.
- Great EMI, EMC, and noise performance ensures easy integration into the end equipment.
- Meets DoE Efficiency Level VI Requirements
- -No load input power
- -Average Efficiency
- Up to 60W of AC-DC Power
- Universal Input 90-264Vac Input Range
- Desktop Style
- Meets “Heavy Industrial” Levels of EN61000 EMC Requirements
- Meets EN55022/CISPR22, FCC Part 15.109 Class B Conducted & Radiated Emissions, with 6db margin
- Approved to EN/IEC/UL60950-1, 2nd Ed., Am.2
-
E-cap life of >8 years
- >900,000 Hours MTBF
- IP22 Rated Enclosure
- Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
