• 40G ATCA 刀鋒交換器

40G ATCA 刀鋒交換器

• PICMG® 3.0 base interface switch
• PICMG 3.1 fabric switching interface (1G, 10G or 40G)
• Optional SATA HDD or SSD
型號 : ATCA-F140-D

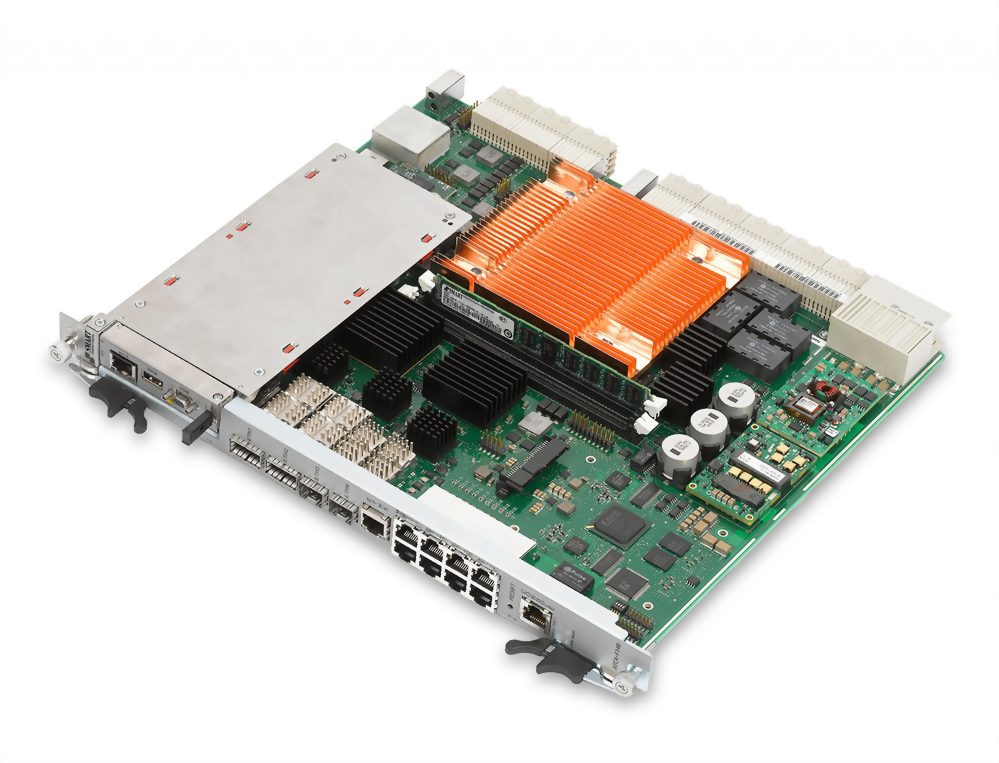

The ATCA-F140 from SMART Embedded Computing is a high performance, high bandwidth 40G switch blade that provides the networking infrastructure for SMART EC AXP1440 and AX640 chassis. This product is perfect for the most bandwidth-intensive military applications, including systems control and signal processing. Along with the maximum fabric bandwidth available, the ATCA-F140 includes several features to maximize platform cost effectiveness. The total aggregated 480G internal fabric interface switching and routing throughput is paired with 160G of external connectivity. Combining several functions within a single blade design allows prime contractors and military branch users to maximize the number of chassis slots dedicated to application server blades. This is accomplished with a combination of factory build options as well as several field options. Optional functions include clock generation and distribution, SATA based disk drives and an AdvancedMC™ (AMC) site for general processing and/or packet processing functions. A powerful on-board service processor executes all L2 and L3 switch functions, blade setup and hardware platform management functions independent of any processor AMC and/or SATA drive installed. This allows full, 100% utilization of the AMC based processor for end-user applications.



  • PICMG®0 compliant base interface switch
  • PICMG 3.1 compliant fabric interface supporting 1G, 10G, and 40G
  • Single AMC site
  • Optional SATA HDD or SSD
  • Integrated software package
