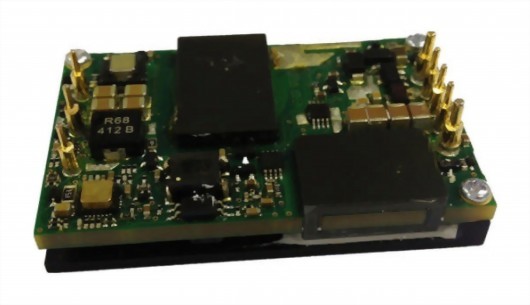

• AVQ200 Series1/4磚電信式模塊

AVQ200 Series1/4磚電信式模塊

4:1 INPUT 200W 1/4 BRICK
型號 : avq200 series

The AVQ200-36S12 series is a single output DC/DC converter with standard quarter-brick form factor and pin configuration. It delivers up to 19A output current with 12V output. Ultra-high 93% efficiency and excellent thermal performance makes it an ideal choice to supply power in telecom and datacom.
It can operate over an ambient temperature range of -40degC ~ +85degC with aircooling.
  • Total Max Power:
    200 W
  • Total Max Current:
    19 A
  • Input Voltage:
    18 V to 75 V
  • Output Voltage:
    10.8 V to 13.2 V
  • Outputs:
    Single
  • Size (L x W x H):
    2.300" x 1.450" x 0.500"
  • Warranty:
    2 years
  • Operating Temperature:
    -40 to +85 degC
  • Delivers up to 19A output current
  • Industry standard quarter brick footprint 57.9mm x 36.8mm x 12.7mm (2.28” x 1.45” x 0.5”)
  • No minimum load requirement
  • Ultra high efficiency: 93% typ. at full load
  • Excellent thermal performance
  • Wide input voltage of 18V-75V
  • Remote control function (negative or positive logic optional)
  • Remote sense
  • Trim function: 90%~110%
  • Input under-voltage lockout
  • Output over-current protection
  • Output over-voltage protection
  • Over-temperature protection
  • RoHS 6 compliant
  • Pin length option: 3.8mm
  • Safety
  • IEC/EN/UL/CSA 60950
  • CE Mark
  • UL/TUV
