高效可擴展型 (DS系列)
DS系列是一款高性能無風扇嵌入式計算機，支持多樣化的Intel® Core™桌上型處理器，容納兩個記憶體插槽（最高支持32GB），可滿足各種高端計算需求。
DS系列最多可支持 2個PCI / PCIe擴展槽，可以針對您的應用提供靈活的擴展能力。
Product
Model Name
CPU
Chipset
I/O
Expansion

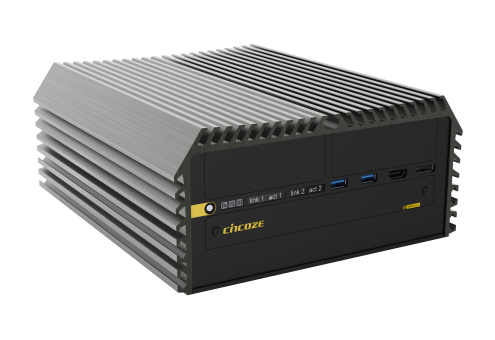

DS-1300
10th Gen. Intel® Xeon® and Core™ i9/i7/i5/i3
Intel® W480E
2x LAN
6x USB 3.2
2x USB 2.0
2x COM
1x PS/2
1x HDMI
2x DisplayPort
1x VGA
3 x Full-size Mini-PCIe Socket
2 x SIM Socket
4 x CMI Interface
1 x CFM IGN Interface
DS-1301
10th Gen. Intel® Xeon® and Core™ i9/i7/i5/i3
Intel® W480E
2x LAN
6x USB 3.2
2x USB 2.0
2x COM
1x PS/2
1x HDMI
2x DisplayPort
1x VGA
3 x Full-size Mini-PCIe Socket
2 x SIM Socket
4 x CMI Interface
1 x CFM IGN Interface
1 x PCI/PCIe slot
DS-1302
10th Gen. Intel® Xeon® and Core™ i9/i7/i5/i3
Intel® W480E
2x LAN
6x USB 3.2
2x USB 2.0
2x COM
1x PS/2
1x HDMI
2x DisplayPort
1x VGA
3 x Full-size Mini-PCIe Socket
2 x SIM Socket
4 x CMI Interface
1 x CFM IGN Interface
2 x PCI/PCIe slot

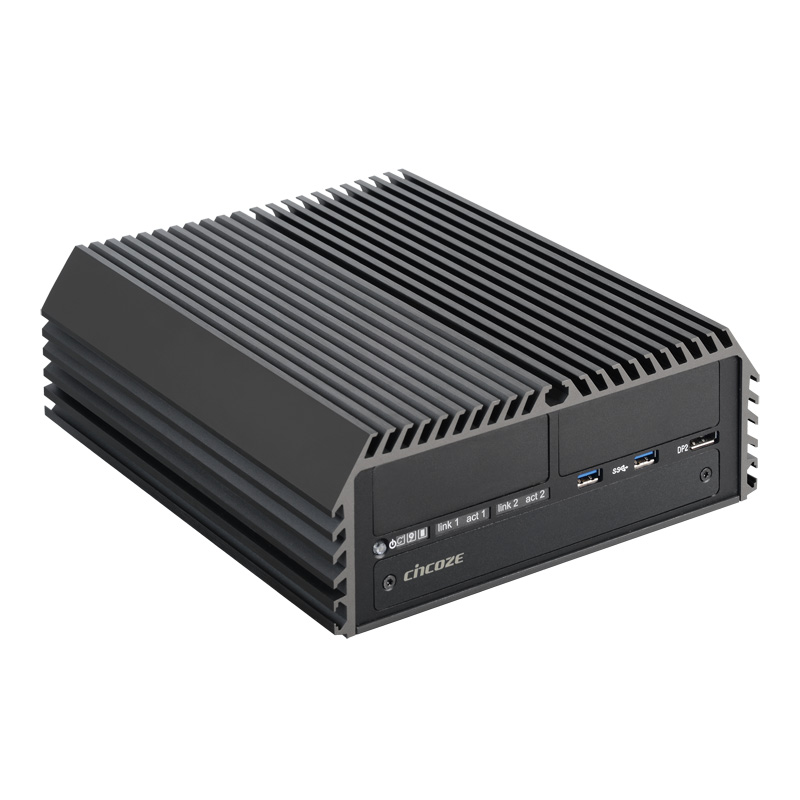

DS-1200
9/8th Gen. Intel® Core i3 / i5 / i7 / Pentium / Celeron
Intel® Q370
2x LAN, 2x USB 3.1, 4x USB 3.0, 2x USB 2.0, 2x COM, 1x DVI-I, 2x DisplayPort
1x CFM Interface, 4x CMI Interfaces, 3x Full-size Mini-PCIe Sockets, 4x Universal I/O Brackets, 2x SIM Sockets, 2x Antenna Holes
DS-1201
9/8th Gen. Intel® Core i3 / i5 / i7 / Pentium / Celeron
Intel® Q370
2x LAN, 2x USB 3.1, 4x USB 3.0, 2x USB 2.0, 2x COM, 1x DVI-I, 2x DisplayPort
1x CFM Interface, 4x CMI Interfaces, 1x PCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 4x Universal I/O Brackets, 2x SIM Sockets, 2x Antenna Holes

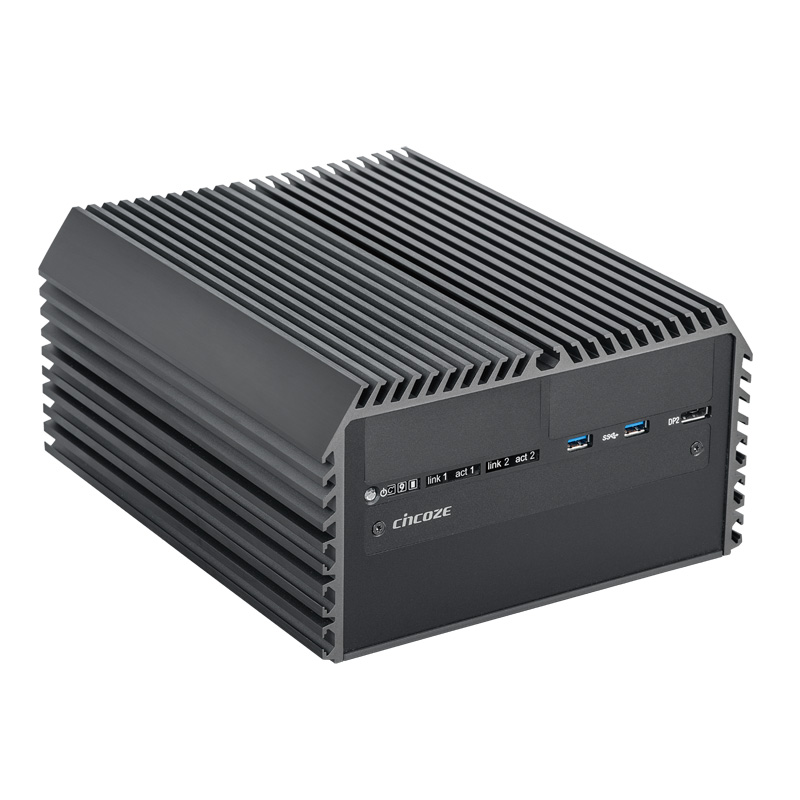

DS-1202
9/8th Gen. Intel® Core i3 / i5 / i7 / Pentium / Celeron
Intel® Q370
2x LAN, 2x USB 3.1, 4x USB 3.0, 2x USB 2.0, 2x COM, 1x DVI-I, 2x DisplayPort
1x CFM Interface, 4x CMI Interfaces, 2x PCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 5x Universal I/O Brackets, 2x SIM Sockets, 2x Antenna Holes
DS-1100
7/6th Gen. Intel® Core i3 / i5 / i7
Intel® Q170
2x LAN, 8x USB, 2x COM, 1x DVI-I, 2x DisplayPort
1x CFM Interface, 2x CMI Interfaces, 3x Full-size Mini-PCIe Sockets, 2x Universal I/O Brackets, 1x SIM Socket, 2x Antenna Holes
DS-1101
7/6th Gen. Intel® Core i3 / i5 / i7
Intel® Q170
2x LAN, 8x USB, 2x COM, 1x DVI-I, 2x DisplayPort
1x CFM Interface, 2x CMI Interfaces, 1xPCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 2x Universal I/O Brackets, 1x SIM Socket, 2x Antenna Holes
DS-1102
7/6th Gen. Intel® Core i3 / i5 / i7
Intel® Q170
2x LAN, 8x USB, 2x COM, 1x DVI-I, 2x DisplayPort
1x CFM Interface, 2x CMI Interfaces, 2xPCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 3x Universal I/O Brackets, 1x SIM Socket, 2x Antenna Holes
