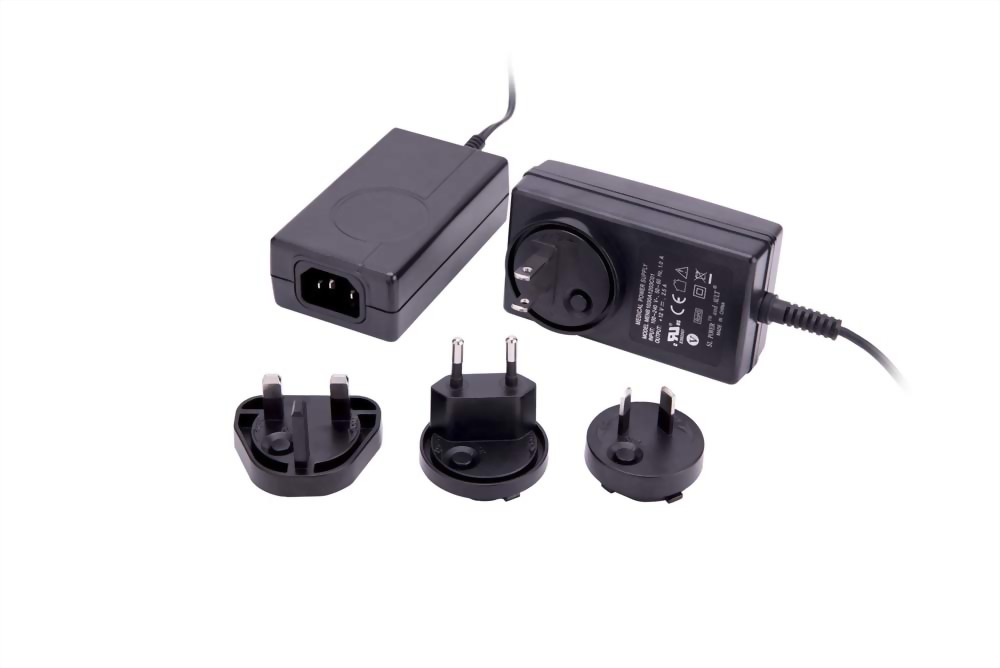

ME30 墻插式變壓器
• A high performance power supply designed for Medical applications.
• Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.
• Great EMI, EMC, and noise performance ensures easy integration into the end equipment.
• Up to 30W of AC-DC Power
• Meets DoE Efficiency Level VI Requirements
• Meets UL/EN/IEC60601-1-2, 4th edition for EMC
• Approved to EN/IEC/UL60601-1, 3rd edition
• Isolation levels which satisfy the 2 MOPP requirements
• Universal Input 90-264Vac Input Range
• Desktop and Wall-Plug versions
• Meets EN55011/CISPR11, FCC Part 15.109 Class B Conducted & Radiated Emissions, with 6db margin
• E-cap life of >8 years
• >1,000,000 Hours MTBF
• 3 Year Warranty
• IP22 Rated Enclosure
• Blades Sold Separately
• Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.
• Great EMI, EMC, and noise performance ensures easy integration into the end equipment.
• Up to 30W of AC-DC Power
• Meets DoE Efficiency Level VI Requirements
• Meets UL/EN/IEC60601-1-2, 4th edition for EMC
• Approved to EN/IEC/UL60601-1, 3rd edition
• Isolation levels which satisfy the 2 MOPP requirements
• Universal Input 90-264Vac Input Range
• Desktop and Wall-Plug versions
• Meets EN55011/CISPR11, FCC Part 15.109 Class B Conducted & Radiated Emissions, with 6db margin
• E-cap life of >8 years
• >1,000,000 Hours MTBF
• 3 Year Warranty
• IP22 Rated Enclosure
• Blades Sold Separately
型號 :
ME30
| MAX WATTS | 30.00W |
| OUTPUT RANGE (VDC) | 5-48 |
| FORM FACTOR | Wall-Mount |
| SIZE (METRIC/SAE) | 96 x 54 x 31 (3.78 x 2.13 x 1.23) |
| EFFICIENCY | Meets Efficiency Level VI Efficiency |
| SAFETY APPROVALS | IEC/EN/UL60601-1 |
- A high performance power supply designed for Medical applications.
- Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.
- Great EMI, EMC, and noise performance ensures easy integration into the end equipment.
- Up to 30W of AC-DC Power
- Meets DoE Efficiency Level VI Requirements
- Meets UL/EN/IEC60601-1-2, 4th edition for EMC
- Approved to EN/IEC/UL60601-1, 3rd edition
- Isolation levels which satisfy the 2 MOPP requirements
- Universal Input 90-264Vac Input Range
- Desktop and Wall-Plug versions
- Meets EN55011/CISPR11, FCC Part 15.109 Class B Conducted & Radiated Emissions, with 6db margin
- E-cap life of >8 years
- >1,000,000 Hours MTBF
- 3 Year Warranty
- IP22 Rated Enclosure
- Blades Sold Separately
