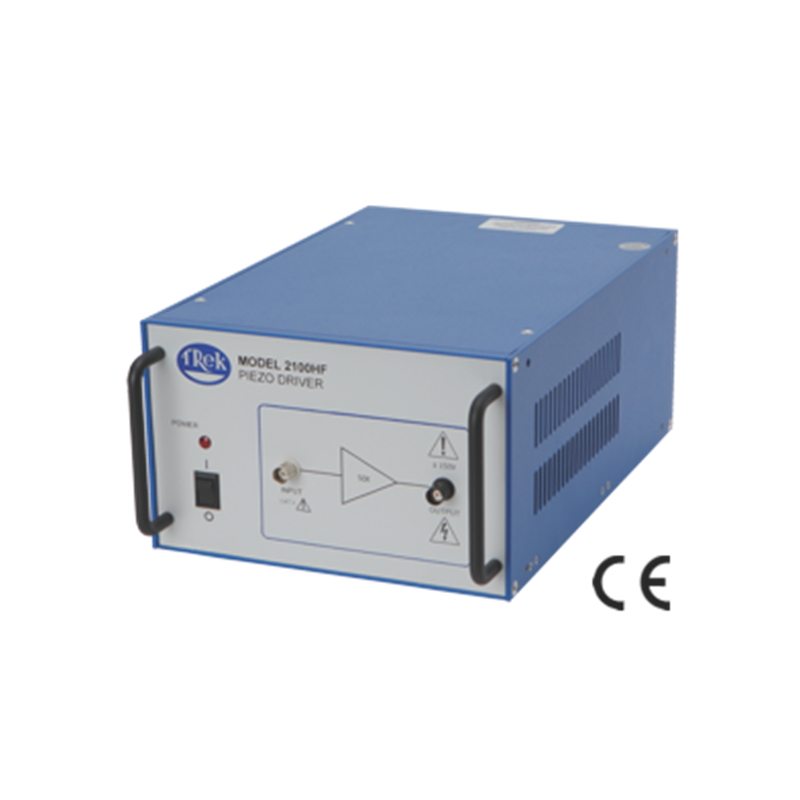

Trek 2100HF 高頻高壓放大器
High Frequency, High Voltage Amplifier, Output Voltage 0 to ±150 VDC or Peak AC
Advanced Energy’s high-frequency Trek 2100 high voltage amplifier incorporates an all-solid-state design for high reliability and low-noise operation.
• Output Voltage: 0 to ±150 VDC or Peak AC
• Output Current: 0 to ±300 mA
• Slew Rate: Greater than 2 kV/µs
• Large Signal Bandwidth: DC to greater than 2.6 MHz (-3 dB)
• Gain: 50 V/V fixed
Advanced Energy’s high-frequency Trek 2100 high voltage amplifier incorporates an all-solid-state design for high reliability and low-noise operation.
• Output Voltage: 0 to ±150 VDC or Peak AC
• Output Current: 0 to ±300 mA
• Slew Rate: Greater than 2 kV/µs
• Large Signal Bandwidth: DC to greater than 2.6 MHz (-3 dB)
• Gain: 50 V/V fixed
型號 :
Trek 2100HF
The Trek® 2100HF achieves accurate output responses and high slew rates into highly capacitive loads thanks to high reliability and low-noise operation. Its full-power frequency response is essentially flat up to 2 MHz. And no overshoot or instability of the waveform occurs due to the amplifier's unique dual feedback feature.
Benefits
- Don’t worry about overshoot or instability of waveform thanks to the dual feedback feature
- Achieve accurate output rates and high slew rates in highly capacitive loads
- Benefit from low-noise operation and an all-solid-state design
- Use in applications such as dielectric material characterization, electro-optic modulation, ion beam control, piezoelectric driving and control, and ultrasonics
Dimensions: 141 mm H x 213 mm W 336 mm D (5.57” H x 8.38” W x 13.22” D)
Weight: 6.8 kg (15 lb)
HV Connector: BNC Connector
- dielectric material characterization
- electro-optic modulation
- ion beam control
- MEMS devices
- piezo electric driving and control
- ultrasonics
