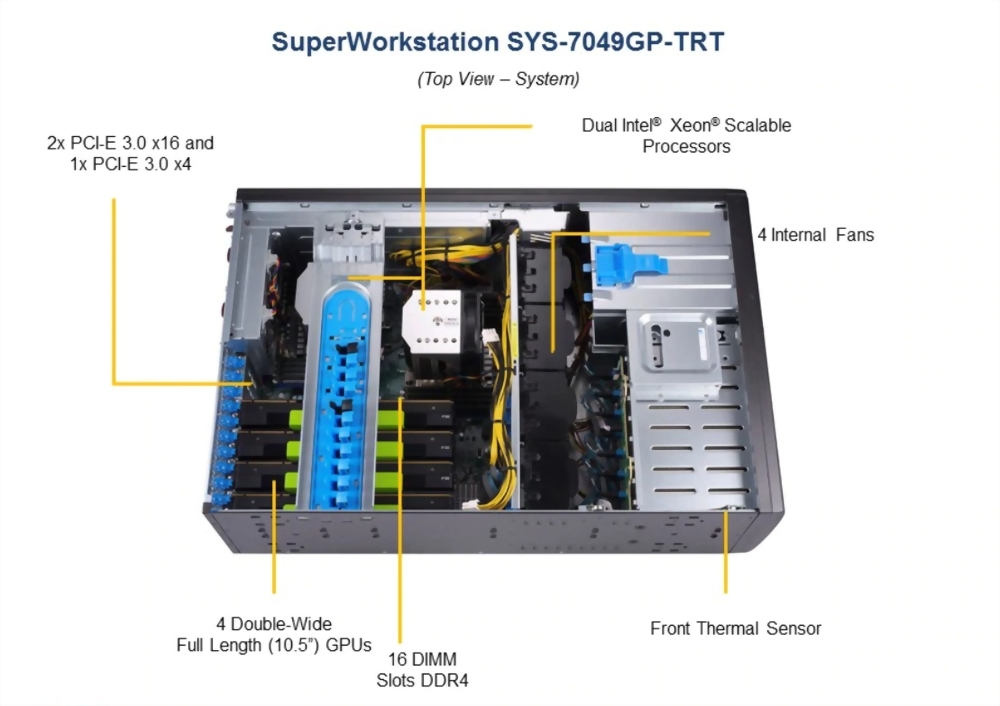

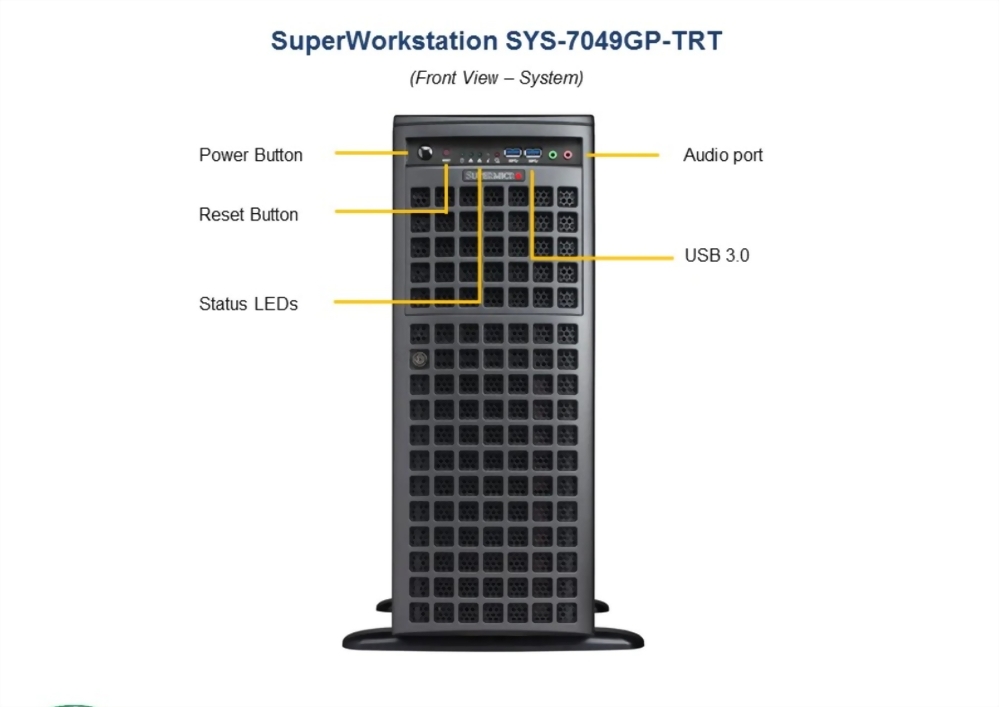

SuperServer 7049GP-TRT
- Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
- 16 DIMMs; up to 4TB 3DS ECC, DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM††
- 4 PCI-E 3.0 x16 (double-width) slots,
2 PCI-E 3.0 x16 (single-width) slots,
1 PCI-E 3.0 x4 (in x8) slot
- 8 Hot-swap 3.5" drive bays
- 2x 10GBase-T LAN ports
- 1 VGA, 2 COM, 5 USB 3.0
- 4 Heavy duty fans, 4 exhaust fans, and 2 active heatsink with optimal fan speed control
- 2200W Redundant Power Supplies Titanium Level (96%)
- GPU Kit for passive GPU support (MCP-320-74702-0N-KIT)
- 16 DIMMs; up to 4TB 3DS ECC, DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM††
- 4 PCI-E 3.0 x16 (double-width) slots,
2 PCI-E 3.0 x16 (single-width) slots,
1 PCI-E 3.0 x4 (in x8) slot
- 8 Hot-swap 3.5" drive bays
- 2x 10GBase-T LAN ports
- 1 VGA, 2 COM, 5 USB 3.0
- 4 Heavy duty fans, 4 exhaust fans, and 2 active heatsink with optimal fan speed control
- 2200W Redundant Power Supplies Titanium Level (96%)
- GPU Kit for passive GPU support (MCP-320-74702-0N-KIT)
型號 :
SYS-7049GP-TRT
|
|
1. Dual Socket P (LGA 3647) support
2nd Gen. Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)‡
2. 16 DIMMs; up to 4TB 3DS ECC
DDR4-2933MHz† RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM††
3. 4 PCI-E 3.0 x16 (double-width) slots,
2 PCI-E 3.0 x16 (single-width) slots,
1 PCI-E 3.0 x4 (in x8) slot
4. 8 Hot-swap 3.5" drive bays
5. 2x 10GBase-T LAN ports via Intel X550
6. 1 VGA, 2 COM, 5 USB 3.0
7. 4 Heavy duty fans, 4 exhaust fans,
and 2 active heatsink with optimal
fan speed control
8. 2200W Redundant Power Supplies
Titanium Level (96%)
9. GPU Kit for passive GPU/Coprocessor
support (MCP-320-74702-0N-KIT)
2nd Gen. Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)‡
2. 16 DIMMs; up to 4TB 3DS ECC
DDR4-2933MHz† RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM††
3. 4 PCI-E 3.0 x16 (double-width) slots,
2 PCI-E 3.0 x16 (single-width) slots,
1 PCI-E 3.0 x4 (in x8) slot
4. 8 Hot-swap 3.5" drive bays
5. 2x 10GBase-T LAN ports via Intel X550
6. 1 VGA, 2 COM, 5 USB 3.0
7. 4 Heavy duty fans, 4 exhaust fans,
and 2 active heatsink with optimal
fan speed control
8. 2200W Redundant Power Supplies
Titanium Level (96%)
9. GPU Kit for passive GPU/Coprocessor
support (MCP-320-74702-0N-KIT)
Parts List - (Items Included) | |||
|
Part Number |
Qty |
Description |
Motherboard / Chassis |
MBD-X11DPG-QT |
1 |
Super X11DPG-QT Motherboard |
Backplane | BPN-SAS3-747TQ-N4 | 1 | 8-port 4U/Tower SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices |
Cable 1 | CBL-0188L-02 | 2 | MINI SAS-4 SATA,INT,64/54/44/34CM,64CM SB,30AWG |
Parts | MCP-260-00042-2N | 1 | STD I/O shield for X9/X10/X11 server MB with EMI Gasket & Mylar |
Manual | MNL-2045-QRG | 1 | 7049GP-TRT Quick Reference Guide |
Heatsink / Retention | SNK-P0070APS4 | 2 | 4U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform |
* Power Supply | PWS-2K20A-1R | 2 | 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm |
* Power Distributor | PDB-PT747-6824 | 1 | Power Distributor Board is for 4U GPU solution using regular |
* Cable 2 | CBL-0071L | 1 | CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG |
* Cable 3 | CBL-0160L | 2 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) |
* Cable 4 | CBL-0216L | 4 | 4 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM) |
* Cable 5 | CBL-0286L | 2 | 4 to 4 pin rear fan pwr ext w/ square header, 30cm (PWM). 24AWG |
* FAN 1 | FAN-0082L4 | 2 | 80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745 |
* FAN 2 | Fan-0114L4 | 2 | 92x38mm 4-PIN PWM FAN W/ HUS for SC747 |
* FAN 3 | FAN-0138L4 | 2 | 92x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU |
* Front Bezel | MCP-210-74701-0B | 1 | SC747 plastic front bezel |
* Drive Tray(s) | MCP-220-00073-0B | 3 | Black 5.25 drive tray w/o rail (SC747) |
* Drive Tray(s) | MCP-220-00094-0B | 8 | Black gen 6.5 hot-swap 3.5 inch HDD Tray |
* Front Panel | MCP-280-74702-0N | 1 | SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio) |
* Parts | MCP-290-74701-0B | 1 | Black plastic top cover for SC747 |
* Parts | MCP-290-74702-0N | 1 | GPU Card Holder (11 slots) for SC747TQ, SC842 |
* Parts | MCP-290-74703-0B | 1 | fixed 3.5" dummy cover for SC747 |
* Parts | MCP-290-74709-0B | 1 | Plastic feet (2 pcs/set) for 4U tower chassis, black color |
