AVD85B Series1/16磚電源模塊

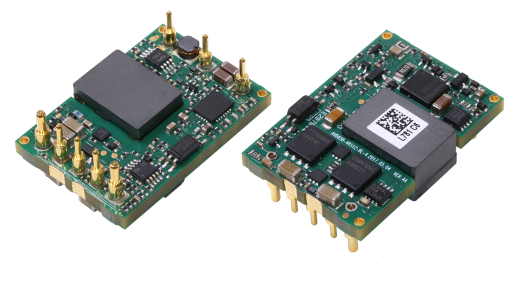

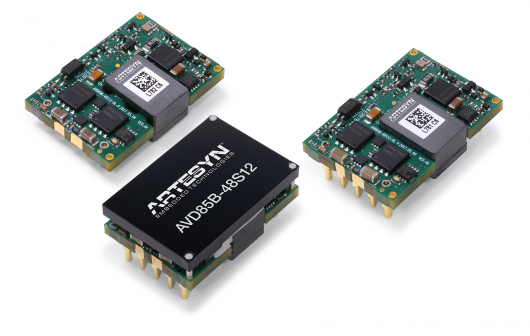

The AVD85B series sixteenth-brick isolated DC-DC converter provides a fully regulated single output at 5V or 12V that is capable of delivering up to 85Watts.
型號 : avd85b series

The AVD85B series has a wide 2:1 input range of 36 to 75 Vdc and is designed primarily for use with standard 48 V telecommunications equipment supplies. Rated at 85 watts, the converter employs an open-frame construction, offers up to 93% efficiency and accommodates an ambient operating temperature range of -40 to 85˚C. A baseplate option is available for enhanced thermal performance. SMT bullet pin with reel tape package is available for reflow processing . The converter uses fixed frequency switching to minimize the need for external EMI filtering.
  • Total Max Power:
    85 W
  • Total Max Current:
    17 A
  • Input Voltage:
    36 V to 75 V
  • Output Voltage:
    4 V to 13.2 V
  • Outputs:
    Single
  • Size (L x W x H):
    1.300" x 0.900" x 0.360"
  • Warranty:
    2 years
  • Operating Temperature:
    -40 to 85degC
  • Delivers up to 85w rated power
  • Ultra-high efficiency 93% typ. at full load
  • Wide input range: 36V ~ 75V
  • Excellent thermal performance
  • No minimum load requirement
  • Basic isolation
  • High power density
  • Low output noise
  • Reflow soldering enabled
  • RoHS 6 compliant
