• Trek 876 AND 884 手持非接觸式靜電電壓表

Trek 876 AND 884 手持非接觸式靜電電壓表

• Accurately measures surface voltage at a wide range of spacings
• ​No need to maintain a fixed spacing
• ​Chopper stabilized for drift-free operation in ionized environments
• ​​NIST-traceable Certificate of Calibration provided with each unit
型號 : Trek 876 AND 884 SERIES

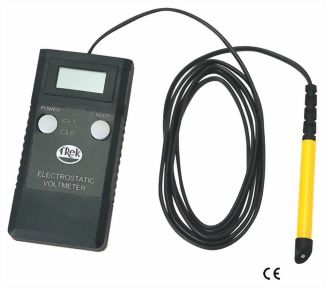

The Trek Model 876 (±2kV) and Model 884 (±20kV) Hand-Held Electrostatic Voltmeters provide accurate, noncontacting measurements of electrostatic
surface voltage for ESD applications in either ionized or non-ionized environments.

These two voltmeters utilize a measurement technique that overcomes the disadvantage of the typical hand-held field-meter by providing surface voltage measurements which are essentially independent of the sensor probe-to-measured surface spacing.
Always use the original grounding cord without any safety resistor; failure to do so will lead to measurement errors.

Model 876 Key Specifications

• Measurement Range: 0 to ±2 kV DC

• Measurement Accuracy: Better than ±5% of full scale over the entire recommended probe-to-surface separation range of 5 mm to 25 mm

Model 884 Key Specifications

• Measurement Range: 0 to ±20 kV DC

• Measurement Accuracy: Better than ±5% of full scale over the entire recommended probe-to-surface separation range of 30 mm to 60 mm

• Accurately measures surface voltage at a wide range of spacings
• No need to maintain a fixed spacing
• Chopper stabilized for drift-free operation in ionized environments
• NIST-traceable Certificate of Calibration provided with each unit
  • Measurement of electrostatic surface charge build up
  • Manufacturing processes
  • Electronic assembly testing
  • Semiconductor material testing
  • Dissipative material testing
  • Automotive electronics testing
  • ESD Auditing and troubleshooting
