Monroe 282H 手持式靜電量測儀 (200kV Range)
• Exclusive Auto-Zero circuit
• HOLD button captures transient readings
• Recorder output and 40-hour battery
• Drift-free accuracy even in ionized environments
• Charged plate adapter available

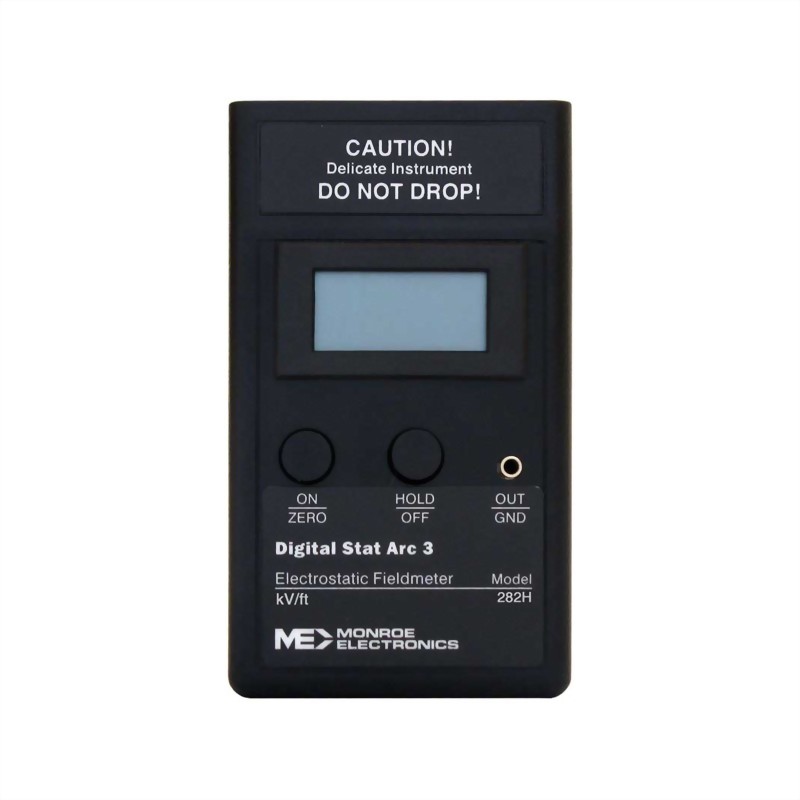

The 200kV F.S. Digital Stat-Arc , model 282H is a pocket-sized, non-contacting static meter which produces consistently accurate readings, and is easy to use.
|
Display: |
LCD, 3½-digit with auto polarity readout, with HOLD and LOW BATT indicators |
|
Range: |
0 to ± 199.9kV at 1.0 feet Voltages under 20kV may be read by decreasing the distance to the target kV Distance Divide reading by 0-20 1.0 inches 4 |
|
Accuracy: |
±5% of reading, + zero offset, ±2 Isd |
|
Analog output Amplitude: |
1 V signal denotes 100kV reading at 1 inch for high impedance loads |
|
Response Time: |
Typ. 80 - 100 msec 10 - 90% |
|
Jack Type: |
Accepts standard 3/32 inch (2.5mm) monaural phone plug |
|
Battery: |
9V NEDA #1604 or equivalent, Life: 40 hours of normal use, with alkaline battery |
|
Physical: |
(L x W x H): 2.4 x 4.2 x 0.9 inches (6.1 x 10.7 x 2.3 cm) |
|
Weight: |
5 oz (0.14kg) with battery |
|
Operating Environment: |
0-50°C, 0-85% RH (non-condensing), unaffected by ionized equipment |

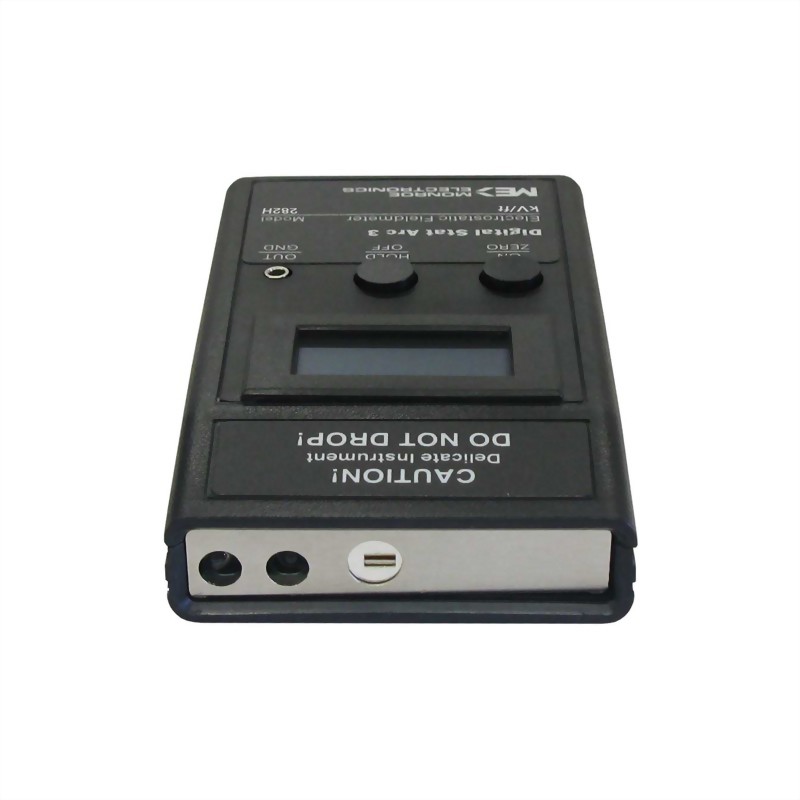

With the Model 282H, accuracy is unquestioned. Simply hold the instrument so the range finder LED beams form a non-pulsing circle indicating you’re at exactly the right distance from the target for readings up to 200 kV. Additionally, Monroe’s chopper-stabilized circuitry is immune to ionization, unlike ordinary static locators. Zeroing is push-button simple. Designed for optimal performance as well as low cost you can’t afford not to keep the Model 282H handy for:
• Monitoring “static-free” electronic workstations
• Measuring static buildup on webs in converting, laminating, and printing operations
• Checking grounds and bonding in dry particle/powder transport systems
