• LGA03C Series C類高密度電源

LGA03C Series C類高密度電源

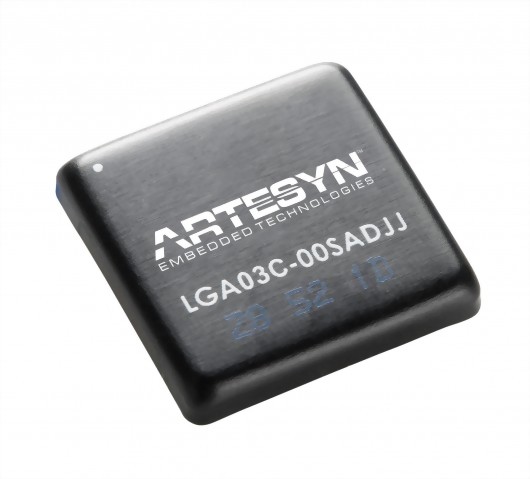

The LGA03C series is a 3 amp non-isolated DC-DC converter that provides a cost-effective high density power solution in a low profile, surface-mount land grid array package for space sensitive applications.
型號 : lga03c series

The converter accepts a wide range 3–14Vdc input and has a 15 watt power output rating. Its output voltage is adjustable from 0.59 to 5.1 Vdc to accommodate a wide variety of silicon power needs. Standard features include remote sense, remote enable and voltage margining. LGA03C series converters offer resistor-programmable undervoltage lockout, as well as non-latching short-circuit and overvoltage protection.
  • Total Max Power:
    15 W
  • Total Max Current:
    3 A
  • Input Voltage:
    3 V to 14 V
  • Output Voltage:
    0.59 V to 5.1 V
  • Outputs:
    Single
  • Size (L x W x H):
    0.640" x 0.640" x 0.129"
  • Warranty:
    2 years
  • Operating Temperature:
    -40°C to +85°C
  • Wide Input Voltage Range
  • Excellent Transient response
  • High Efficiency

  • Standard Features: Input UVLO, Enable, Output Adjust, Differential Remote Sense, Output Margining, Power Good Signal, Short Circuit and Overcurrent Protection
  • Low Profile in a small compact LGA footprint
  • Wide Output Adjust Range
  • RoHS 6 Compliant
