• nlp65-m series

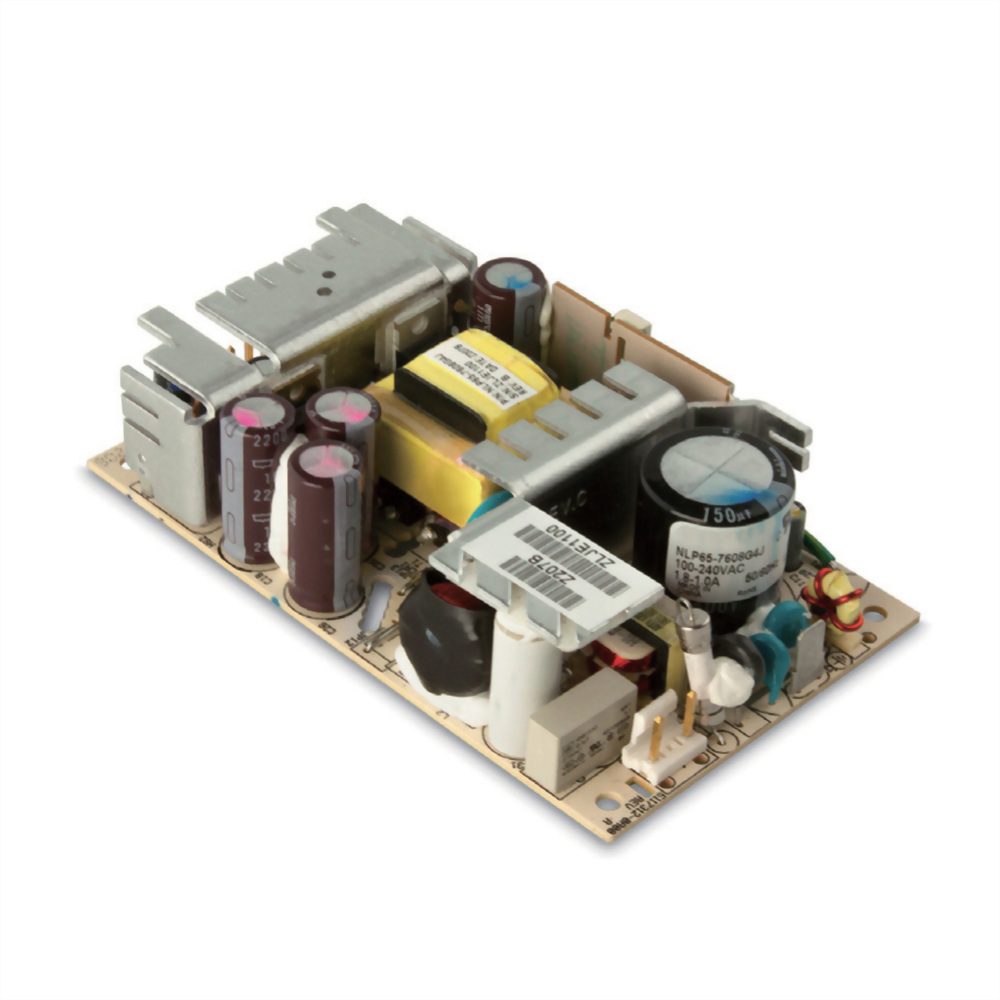

NPL65-M Series低功率開放式電源

The NLP65-M series of open-frame AC-DC power supplies comprises six single, dual and triple output models, covering standard voltages from -15 V to 24 V.
型號 : nlp65-m series

All six models accept a universal input of 85—264 Vac and feature medical safety approvals, with a very low safety ground leakage current of less than 95 microamps. Comprehensive overvoltage and short-circuit protection is provided as standard. NLP65-M series power supplies provide 65 watts of output power with free air convection cooling and 75 watts with 20 CFM of forced air. Less than 1U high, they are ideal for a wide variety of medical, laboratory and dental applications such as centrifuges, incubators and infusion pumps.

Total Max Power:

75 W

Output Voltage:

-12 V to 24  V

Warranty:

2 years

Total Max Current:

10 A

Outputs:

SingleDualTriple

Operating Temperature:

0° C to +70° C

Input Voltage:

85 V to 264 V

Size (L x W x H):

5.000" x 3.000" x 1.300"


  • 85 VAC to 264 VAC universal input range
  • Harmonic current correction as standard
  • Maximum component height 1.26 inches
  • UL, CSA and VDE safety approvals



  • Overvoltage and short circuit protection
  • 5 x 3 x 1.26 inch (127.0 x 76.2 x 32mm) footprint
  • Available RoHS compliant
  • 2 year warranty
