Monroe 244A 靜電電壓表
• ±3kV Range
• Measurement Without Physical Contact
• Accuracy Better Than 0.1% at Almost any Probe-to-Surface Spacing
• Full Complement of State-of-the-art High Ferquency Probes
• Provision for Master/Slave Operation
• Measurement Without Physical Contact
• Accuracy Better Than 0.1% at Almost any Probe-to-Surface Spacing
• Full Complement of State-of-the-art High Ferquency Probes
• Provision for Master/Slave Operation
型號 :
Monroe 244A

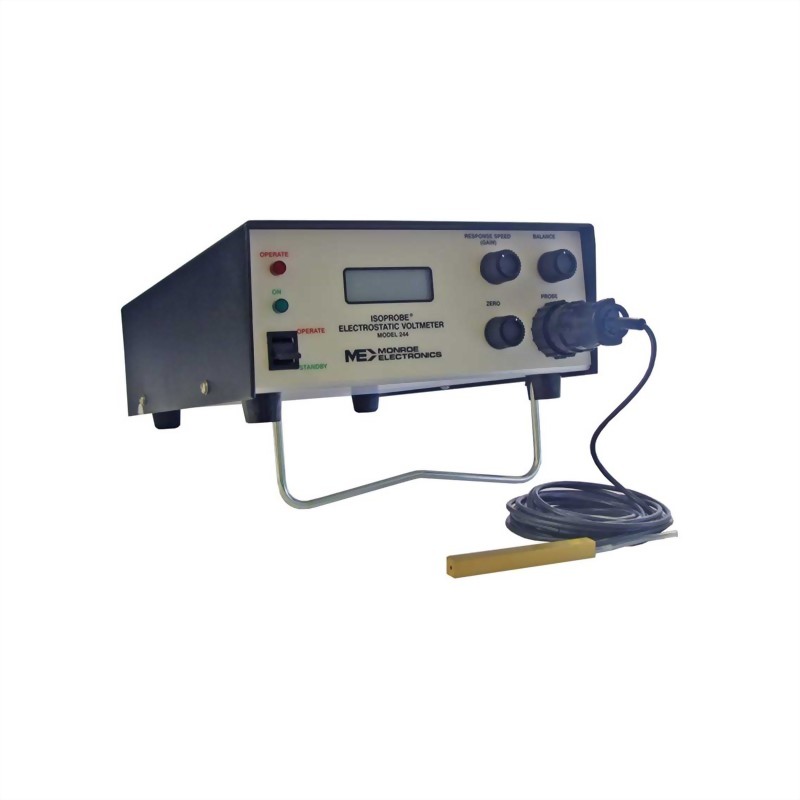

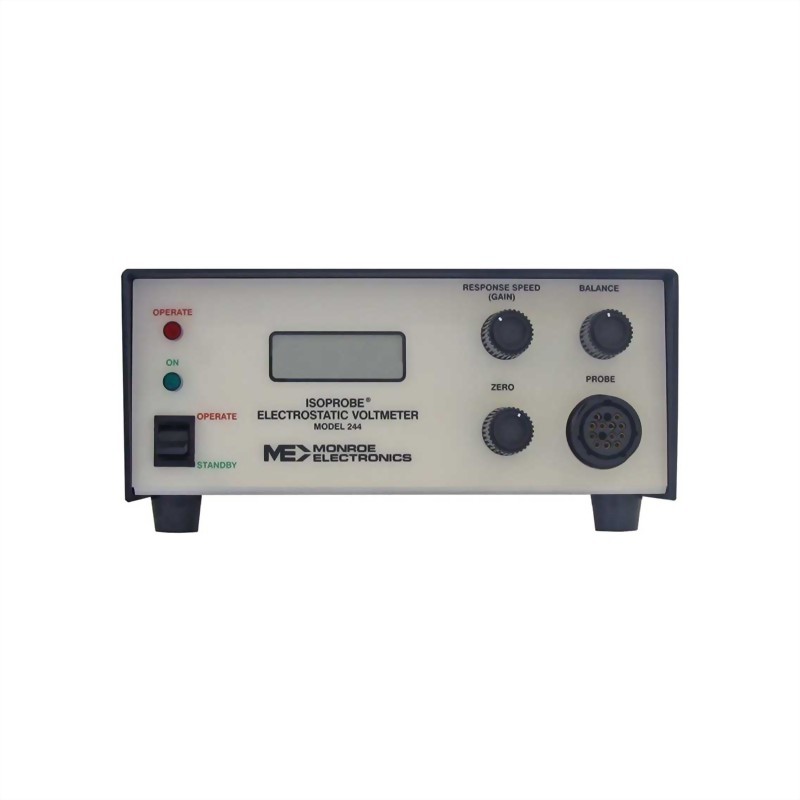

The model 244A ISOPROBE® Electrostatic Voltmeter measures surface potential in the range of ±3000 volts without contacting the measured surface. It features high-accuracy (0.1%), drift-free measurements that are almost fully independent of probe-to-surface separation. It enjoys a proven record and long, successful history in both laboratory and manufacturing environments.

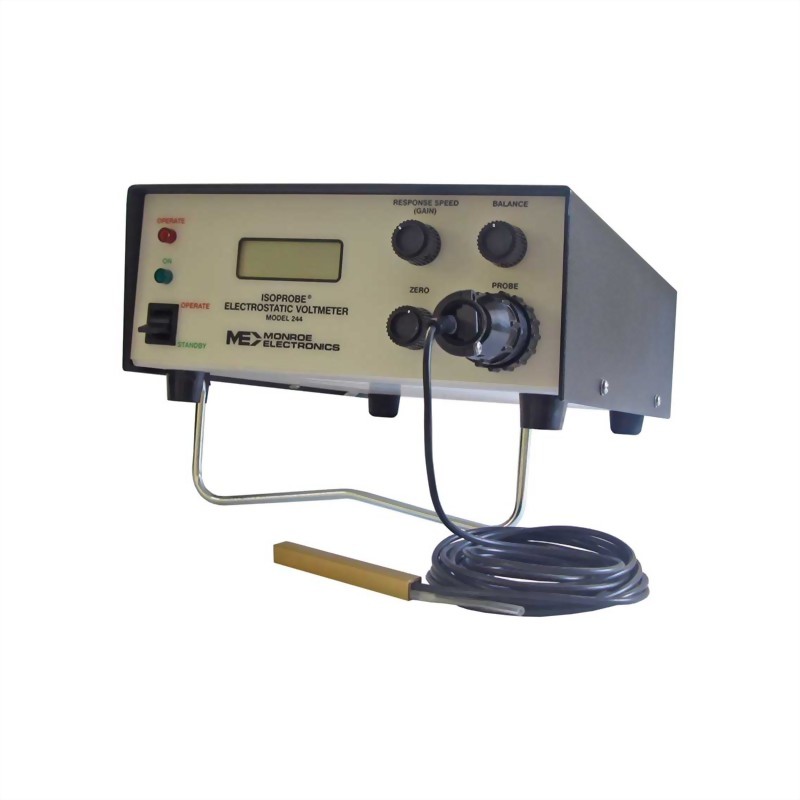

Side- and end-viewing probes accommodate various mounting requirements. Specialty high-resolution probes allow the 244A to resolve spot diameters as small as 1 mm. Probes include air purge capability to prevent ingress of particulate.
|
Range: |
±3000 volts, auto polarity. |
|
Accuracy:* |
0.1%, ±0.003%/°C over +20 to +40°C range (at recorder output). Useable to +50°C. |
|
Speed of response:* |
For typical input step: <3ms (10% to 90%) for 1kV step: <2½ms (10% to 90%) for 2kV step: <3½ms (10% to 90%) for 3kV step: <4ms (10% to 90%) |
| Settling time: |
<3½ms to 1% of 1kV step input. |
| Frequency response: | Small signal frequency response typically ±3db to >300Hz. |
| Drift:* | <0.01V/hr after 1 hr warm-up (0.003V/hr typical). Not measurably affected by 10°C temperature variation or changes between 10% and 90% relative humidity. |
| Noise:* | <0.3V rms or 2 volts peak-to-peak wide band (bandwidth restricted to<1kHz) referred to input. |
| Surface resolution: |
Determined by probe aperture size and surface-probe separation. Standard type 1017AE & AS probes with 0.07” (1.75mm) aperture will resolve a 0.10” (2.5mm) spot at0.02” (0.5mm) separation. |

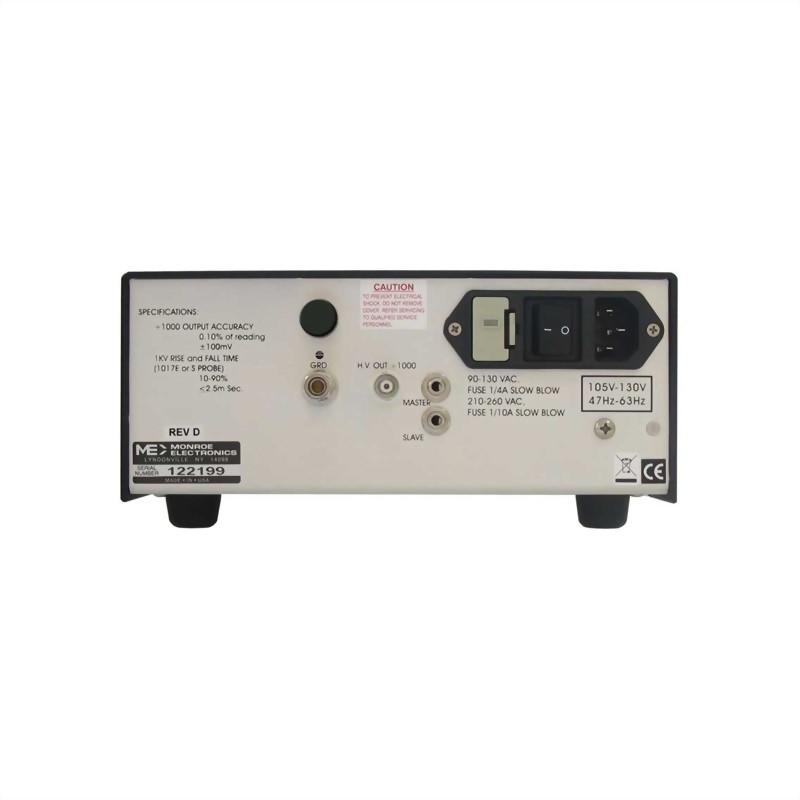

| Recorder output: | Compressed analog output is input divided by 1000 (optional Model 244AK has divide by 200) for external loads greater than 1KΩ. Output connector is BNC. |
| Output filter: | Bessel low pass filter with 0.7ms constant delay. |
| Size: | 4 x 8½ x 14 inches (10 x 21.8 x 35.6 cm), 1.75” rack mounting available (1 or 2 per rack). |
| Weight: | 7 lb. (3.2 kg) |
| Power requirement: | 100, 115, 230 VAC, ±10%, 50/60Hz, 15 watts. |
| Accessories Included: | Manual on CD, line cord, phono plug |
| Certifications: |
CE Mark compliant |
- Electrophotographic measurements
- Radiation effect studies
- Electret research
- Electric field studies
- Process monitoring and control
- Integrated circuit manufacturing and handling
