| Product SKUs | | SYS-511E-WR | | Motherboard | | Super X13SEW-F | | Processor | | CPU | | | Core Count | - Up to 52C/104T; Up to 300MB Cache
| | Note | - Supports up to 300W TDP CPUs (Air Cooled)
| | GPU | | Max GPU Count | - Up to 1 double-width or 2 single-width GPUs
| | Supported GPU | - NVIDIA PCIe: A10, A1000, A2, L4, RTX 4000 Ada Generation, RTX A4000, T400
- View GPU Options
| | CPU-GPU Interconnect | - PCIe 5.0 x16 CPU-to-GPU Interconnect
| | System Memory | | Memory | - Slot Count: 8 DIMM slots/8 Channels
- Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
- View Memory Options
| | Memory Voltage | | | On-Board Devices | | SATA | - SATA (6Gbps) ; RAID 0/1/5/10 support
| | Network Connectivity | - 2 RJ45 1GbE with Intel® I210
- View AOC Options

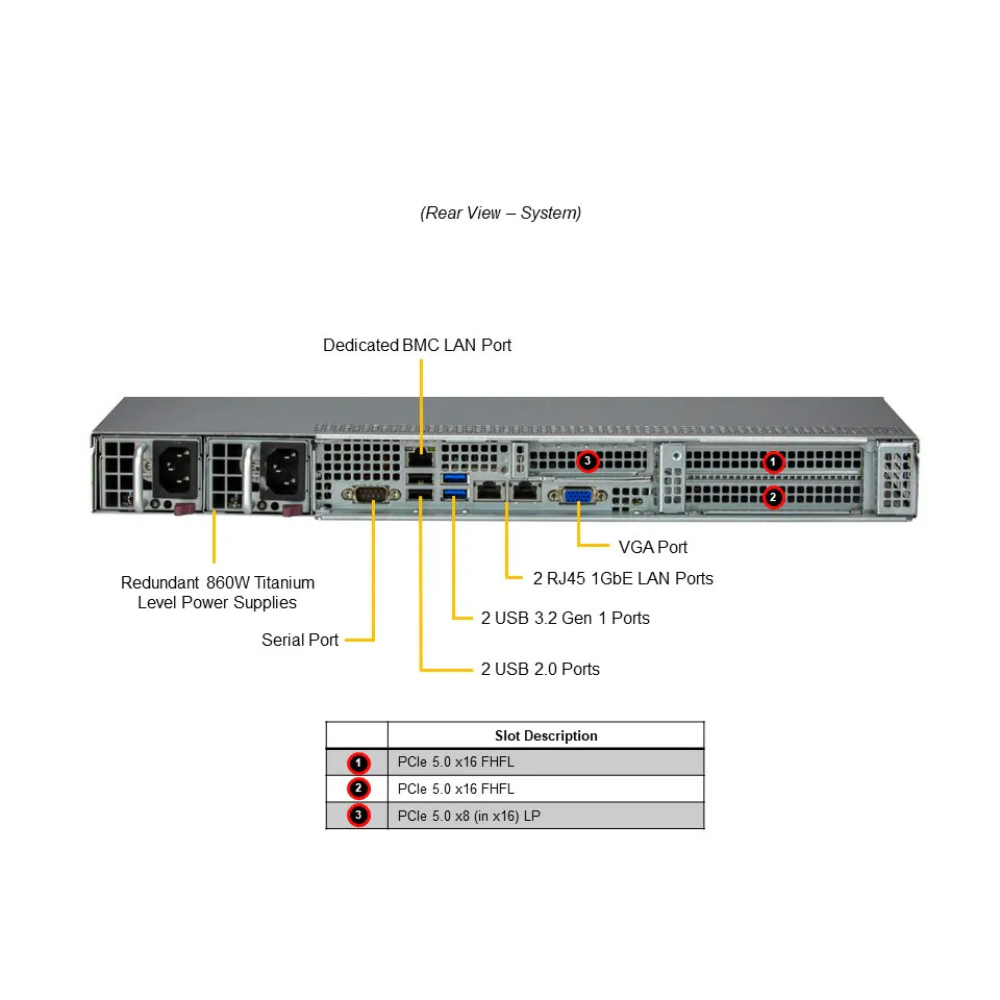

| | Input / Output | | LAN | - 2 RJ45 1 GbE LAN ports
- 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
| | USB | - 2 USB 3.2 Gen1 Type-A ports(rear)
- 2 USB 2.0 Type-A ports(rear)
- 2 USB 3.2 Gen1 ports(Header)
- 1 USB 2.0 Type-A port(Header)
| | Video | | | Serial | - 1 COM port(header)
- 1 COM port(rear)
| | TPM | | | System BIOS | | BIOS Type | - AMI 32MB SPI Flash EEPROM
| | Management | | Software | | | Power configurations | - ACPI/APM Power Management
| | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
| | Features | - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- Supply Chain Security: Remote Attestation
- Runtime BMC Protections
- System Lockdown
| | PC Health Monitoring | | CPU | - 8 Phase-switching voltage regulator
- Monitors for CPU Cores, Chipset Voltages, Memory
| | FAN | - Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
| | Temperature | - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
| | Certifications | | Operating Systems | |
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 8.5" (H) x 23.5" (W) x 33.7" (D)
| | Weight | - Gross Weight: 34.5 lbs (15.46 kg)
- Net Weight: 21.5 lbs (9.75 kg)

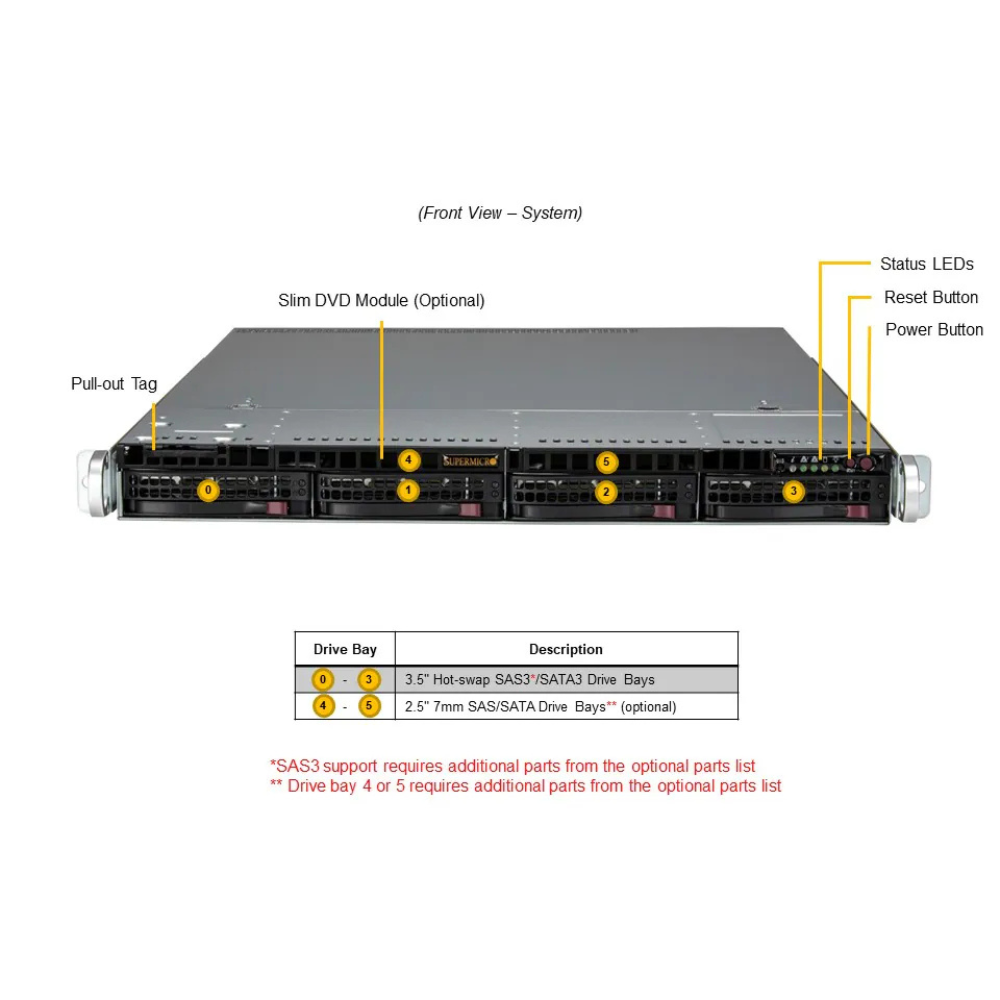

| | Available Color | | | Front Panel | | Buttons | - Power On/Off button
- System Reset button
- Unit Identification (UID) button
| | LED | - Fan Fail/System Over Heat LED
- HDD activity LED
- Network Activity LEDs
- Power status LED
- Unit Identification (UID) LED
| | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 2 PCIe 5.0 x16 FHFL slots
- 1 PCIe 5.0 x8 (in x16) LP slot
- View AOC Options
| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 4 bays
- 4 front hot-swap 3.5" SAS*/SATA drive bays
- (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
- View Drive Options
| | M.2 | | | Peripheral Bays | - 2 2.5" peripheral bays (optional)
| | System Cooling | | Fans | - Up to 5 middle cooling PWM 40x40x56mm Fan(s)
- Up to 1 AOC cooling Fan(s) (optional)
| | Air Shroud | | | Power Supply | | | 2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies | | Dimension (WxHxL) | 54.5 x 40.25 x 322 mm | | Input | 800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz | | +12V | Max: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
Max: 71.67A / Min: 0A (200Vac-240Vac) | | 5V SB | Max: 4A / Min: 0A | | Output Type | Backplanes (gold finger) | | Operating Environment | | Environmental Spec. | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
- Operating Relative Humidity: 8% to 80% (non-condensing)
- Non-operating Relative Humidity: 8% to 90% (non-condensing)
| | Environmental / Recycling | | Recycle | |
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

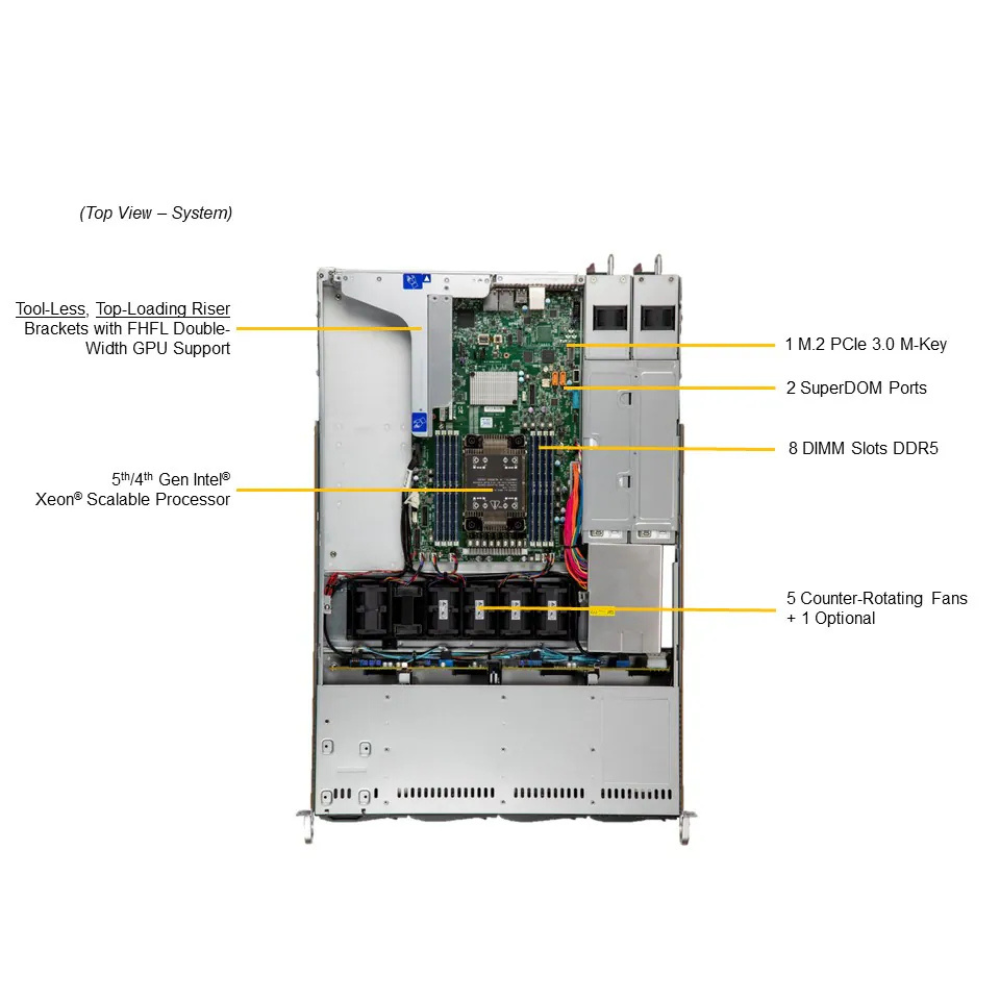

Single Socket E (LGA-4677) 4th/5th Gen Intel® Xeon® Scalable processors. Up to 300W TDP
-
Intel® C741 Chipset
-
8 DIMMs; Supports 3DS DDR5 RDIMM. Up to 5600 MHz
-
Onboard 1G LAN ports (Intel® i210), 1 dedicated IPMI LAN
-

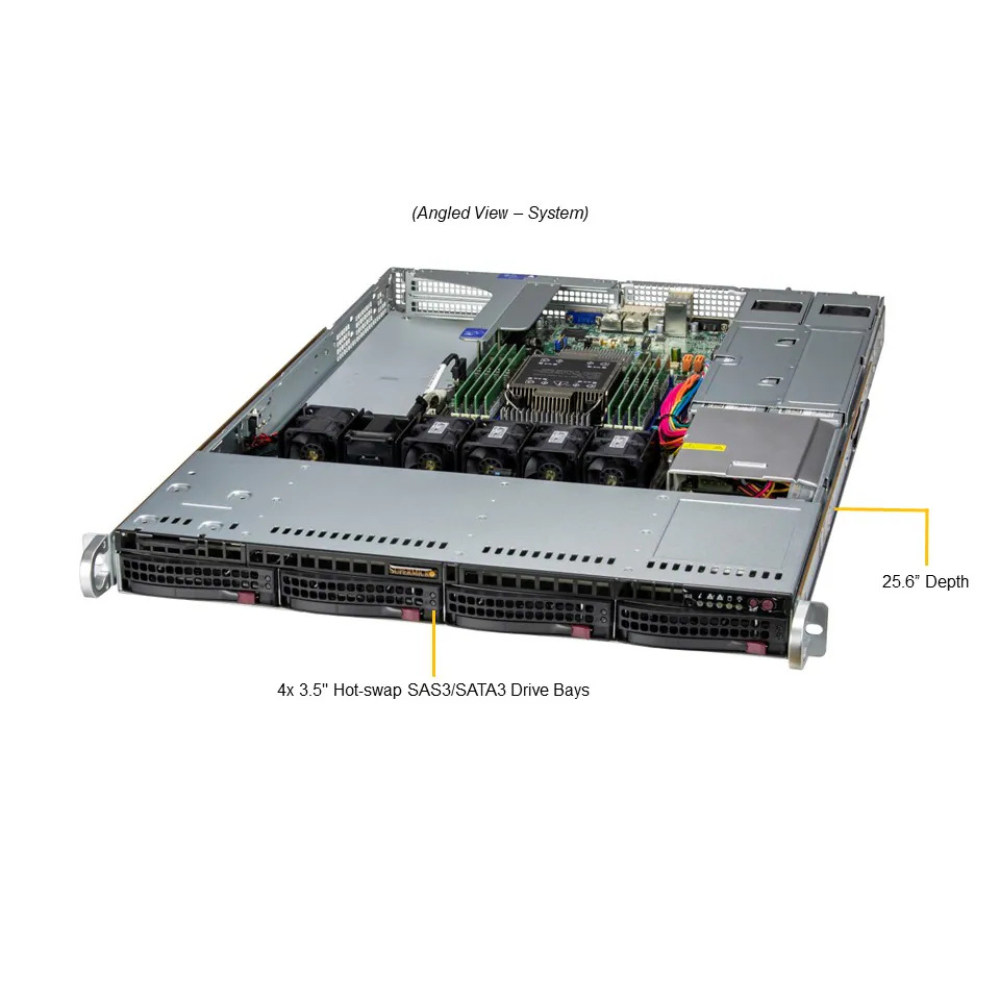

4x front hot-swap 3.5" SATA3 drive bays, SAS3 with additional SAS controller card
-
Redundant Now Titanium 860W Power Supplies
-
General Purpose
-
Front-end, Web Hosting
-
Entry Appliance
