8th Generation Intel® Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer
型號 : DS-1200

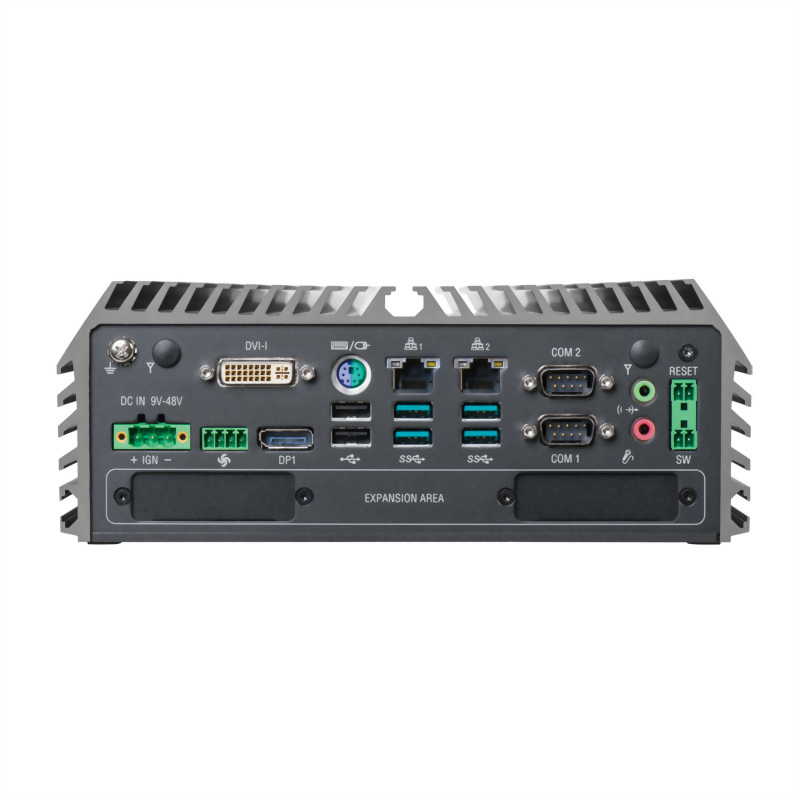

DS-1200 is a high-performance fanless embedded computer powered by 8th generation Intel® Core™ platform (Coffee Lake-S) and offers up to 6 cores to fulfill all kinds of high-end computing requirements. DS-1200 provides rich I/O, such as 1x PS/2, 1x Line-out, 1x Mic-in, 2x RS-232/422/485 ports, 2x Intel® GbE ports, 2x USB 3.1 (Gen2), 4x USB 3.0, 2x USB 2.0, and triple independent displays. As for memory and storage, DS-1200 can be equipped with up to 32 GB of DDR4-2666 SO-DIMM memory, 2x 2.5-inch SATA III hard drive, 3x mSATA SSD and 1x M.2 2280 NVMe SSD for high-performance storage requirement.
Based on Cincoze’ CMI & CFM Technology, it allows users to configure the system according to their specific needs by using a variety of ready-to-use modules. DS-1200 is truly a rugged computing system with features of wide operating temperature (-40°C to 70°C), wide range DC power input (from 9V to 48V), high tolerance of shock and vibration, high-standard industrial protections and SuperCap for battery maintenance-free operation. The system is suitable for high-end applications in a harsh environment, such as factory automation, machine vision, in-vehicle computing, and mobile surveillance.

詳細規格

 Datasheet

 User's manual

Model Name DS-1200
System Processor • Core™ i:
   Intel® Core™ i7-8700 Hexa Core 12M Cache, up to 4.6 GHz, TDP 65W
   Intel® Core™ i5-8500 Hexa Core 9M Cache, up to 4.1 GHz, TDP 65W
   Intel® Core™ i3-8100 Quad Core 6M Cache, 3.60 GHz, TDP 65W
   Intel® Core™ i7-8700T Hexa Core 12M Cache, up to 4.0 GHz, TDP 35W
   Intel® Core™ i5-8500T  Hexa Core 9M Cache, up to 3.5 GHz, TDP 35W
   Intel® Core™ i3-8100T  Quad Core 6M Cache, 3.10 GHz, TDP 35W
• Pentium®:
   Intel® Pentium® G5400 Dual Core 4M Cache, 3.70 GHz, TDP 58W
   Intel® Pentium® G5400T Dual Core 4M Cache, 3.10 GHz, TDP 35W
• Celeron®:
   Intel® Celeron® G4900 Dual Core 2M Cache, 3.10 GHz, TDP 54W
   Intel® Celeron® G4900T Dual Core 2M Cache, 2.90 GHz, TDP 35W
Chipset Intel Q370
Memory 2x DDR4-2400/2666 MHz SO-DIMM Sockets, Supports up to 32 GB (Un-buffered and Non-ECC Type)
Graphics • Integrated Intel® UHD Graphics 630: Core™ i7/i5/i3
• Integrated Intel® UHD Graphics 610: Pentium® /Celeron®
• Supports Triple Independent Display (1x DVI-I, 2x DisplayPort)
Audio Realtek® ALC888, High Definition Audio
BIOS AMI 32MB SPI BIOS
I/O Interface DVI 1x DVI-I (DVI-D: 1920 x 1200 @60Hz / VGA: 1920 x 1080 @60Hz)
DP 2x DisplayPort (DisplayPort: 4096 x 2304 @60Hz)
LAN 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
   - GbE1: Intel® I210
   - GbE2: Intel® I219
Optional CMI Module
   - 4x RJ45 GbE LAN Module (Intel® I210AT)
   - 4x M12 GbE LAN Module (Intel® I210AT)
PoE+ Optional CMI & CFM Module
   - 4x PoE+, Individual port 25.5W, RJ45 Port
   - 4x PoE+, Individual port 25.5W, M12 Port
Serial Port 2x RS-232/422/485, DB9
Optional CMI Module
   - 4x Isolated COM Module
   - 4x COM Module
      * Supports RS-232/422/485 with Auto Flow Control, 5V/12V, DB9
USB 2x USB 3.1 Gen2 (Type A)
4x USB 3.0 (Type A)
2x USB 2.0 (Type A)
PS/2 Port 1x PS/2, 6-pin mini-DIN Female Connector
Isolated DIO Optional CMI Module
   - 16x Optical Isolated DIO Module (8 in/8 out)
Line-Out 1x Line-Out, Phone Jack 3.5mm
Mic-In 1x Mic-In, Phone Jack 3.5mm
Power Button 1x ATX Power On/Off Button
AT/ATX Switch 1x AT/ATX Mode Switch
Clear CMOS Switch 1x Clear CMOS Switch
Remote Power On/Off Connector 1x Remote Power On/Off Connector, 2-pin Terminal Block
Remote Reset Connector 1x Remote Reset Connector, 2-pin Terminal Block
External FAN Connector 1x External FAN Connector, 4-pin Terminal Block
Storage SSD/HDD • 2x 2.5" SATA HDD/SSD bay (Gen3), 1x Internal, 1x Front Accessable
• Supports RAID 0/1
M.2 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3)
mSATA 3x mSATA (shared by Mini-PCIe socket) (Gen3), BIOS Selectable
Expansion CFM (Control Function Module) Interface 1x CFM (Control Function Module) Interface
CMI (Combined Multiple I/O) Interface 2x CMI (Combined Multiple I/O) High Speed Interface
2x CMI (Combined Multiple I/O) Low Speed Interface
Mini PCI Express
3x Full-size Mini-PCIe Socket
Universal I/O Bracket 4x Universal I/O Bracket
SIM Socket 2x SIM Socket
Antenna Holes 2x Antenna Holes
Other Instant Reboot Support 0.2sec
Super Cap SuperCap Integrated for CMOS Battery Maintenance-free Operation
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
Power Requirement Power Type AT/ATX
Power Input Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adapter Optional AC/DC Adapter
  - AC/DC 24V/5A, 120W
  - AC/DC 24V/9.2A, 220W
Physical Dimension (WxDxH) 227 x 261 x 88 mm
Weight Information 4.92 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall
Unibody Design Yes
Fanless Design Yes
Jumper-less Design Yes
Protection Reverse Power Input Protection Yes
Over Voltage Protection 58V
Over Current Protection 15A
ESD Protection +/-15kV(Air), +/-8kV(Contact)
Surge 3.84 kV (impedance 12 ohm 1.2/50us waveform)
Operating System Windows Windows® 10
Linux Supports by project
Environment Operating Temperature • 35W TDP Processor: -40°C to 70°C
• 51~65W TDP Processor: -40°C to 45°C
 * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
 * With extended temperature peripherals; Ambient with air flow
 * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 85°C
Relative Humidity 95%RH @ 70°C (non-Condensing)
Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
MTBF 396,565 Hours
Certification EMC CE,  FCC Class A
Safety LVD (EN60950-1)
Railway EN50155, EN50121-3-2
  • Supports 8th Gen Intel® Core™ / Pentium® / Celeron® Hexa Cores 35W/65W LGA 1151 Processors
  • 2x DDR4 SO-DIMM Socket, Supports Up to 2666MHz, 32GB
  • Triple Independent Displays: 1x DVI-I and 2x DP (4K Resolution)
  • 1x M.2 2280 M Key Socket, Auto-detection for PCIex4 NVMe SSD or SATA Gen3 SSD
  • 2x Front Accessible SIM Card Slots for Signal Redundancy
  • 4x CMI Slots for Modular I/O Expansions
  • 1x CFM Slot for Power Ignition Sensing Function
  • Wide Operating Temperature (-40°C to 70°C )
  • EN50155 (EN50121-3-2) Certified/ EN60950-1
訂購資訊
Available Models
Model No. Product Description
DS-1200-R10 8th Generation Intel® Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer

Package Checklist
√ DS-1200 Embedded System x 1 √ Power Terminal Block Connector x 1
√ Utility DVD Driver x1 √ Remote Power On/Off Terminal Block Connector x 1
√ Heat Sink Pack x 1 √ Remote Power Reset Terminal Block Connector x 1
√ Screw Pack x 1 √ Fan Terminal Block Connector x 1
√ Wall Mount Kit x1 √ DVI-I to VGA Adaptor

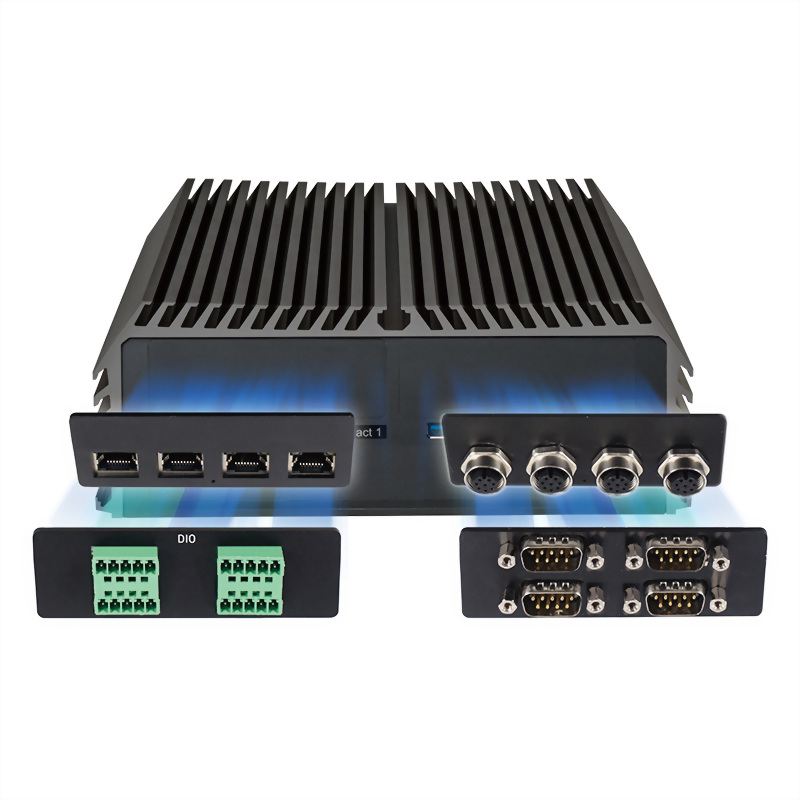

Optional Modules & Accessories
Model No. Description
CFM-PoE03 CFM Module with PoE Function, Individual Port 25.5W for DS-1200 Series
CFM-IGN101 CFM Module with Power Ignition Sensing Function, 12V/24V Selectable for DS-1200/ DS-1100/ P1101 Series
CMI-LAN01/UB1012 CMI Module with 4x Intel I210-AT GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for DS-1200 Series
CMI-M12LAN01/UB1010 CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout for DS-1200 Series
CMI-DIO02/UB1018 CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout for DS-1200 Series
CMI-COM02/UB1004 CMI Module with 4x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout for DS-1200 Series
CMI-ICOM01/UB1004 CMI Module with 4x Isolated RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout for DS-1200 Series
MEC-COM-M212-DB9/UB0303 Mini-PCIe Module with 2x RS-232 Ports, 1x Standard DB9 Cable / 2x Universal Bracket each with 1x DB9 Cutout for DS / P1000 Series
MEC-USB-M002-30/UB0314 Mini-PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable / 1xUniversal Bracket with 2x USB Cutout for DS Series
MEC-LAN-M002-30/UB0311 Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for DS Series
FAN-EX101 External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan
PAH01 Power Adapter Holder for GST120A24
PAH02 Power Adapter Holder for GST220A24
GST120A24-CIN Adapter AC/DC 24V 5A 120W, with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI
GST220A24-CIN Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI
