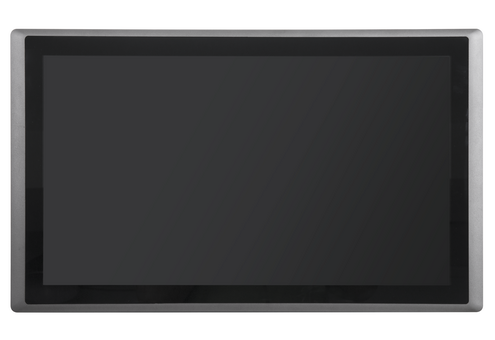

CV-P1000

IP65 Compliant Aluminum Die-Cast Front Frame

Supports Panel / VESA Mounting

True Flat IP65 Front Panel Protection

Wide Operating Temperature (-30°C to 80°C)

8.4" ~21.5" SVGA TFT-LCD with Resistive 5-wire / Projected CapacitiveTouch

Onboard Intel x7-E3950 / N4200 /  E3845

Brightness (cd/m2):300-500

Product Model Name Display CPU I/O Expansion

NEW
CV-108 / P1101

CV-108/P1101

8.4" TFT
800x600 (4:3)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

 Datasheet

 User's manual



NEW
CV-108 / P1001
CV-108 / P1001 8.4" TFT
800x600 (4:3)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

 Datasheet

 User's manual



NEW
CV-108 / P1001E
CV-108 / P1001E 8.4" TFT
800x600 (4:3)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

 Datasheet

 User's manual



CV-110 / P1101 CV-110 / P1101 10.4" TFT
800x600 (4:3)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

 Datasheet

 User's manual



CV-110 / P1001 CV-110 / P1001 10.4" TFT
800x600 (4:3)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

 Datasheet

 User's manual



CV-110 / P1001E CV-110 / P1001E 10.4" TFT
800x600 (4:3)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

 Datasheet

 User's manual



CV-110H / P1101 CV-110H / P1101 10.4" TFT
1024x768 (4:3)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

 Datasheet

 User's manual



CV-110H / P1001E CV-110H / P1001E 10.4" TFT
1024x768 (4:3)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

 Datasheet

 User's manual



CV-110H / P1001 CV-110H / P1001 10.4" TFT
1024x768 (4:3)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

 Datasheet

 User's manual



CV-112 / P1101 CV-112 / P1101 12.1" TFT
800x600 (4:3)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

 Datasheet

 User's manual



CV-112 / P1001 CV-112 / P1001 12.1" TFT
800x600 (4:3)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

 Datasheet

 User's manual



CV-112 / P1001E CV-112 / P1001E 12.1" TFT
800x600 (4:3)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

 Datasheet

 User's manual



CV-112H / P1101 CV-112H / P1101 12.1" TFT
1024x768 (4:3)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

 Datasheet

 User's manual



CV-112H / P1001 CV-112H / P1001 12.1" TFT
1024x768 (4:3)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

 Datasheet

 User's manual



CV-112H / P1001E CV-112H / P1001E 12.1" TFT
1024x768 (4:3)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

 Datasheet

 User's manual



CV-115 / P1101 CV-115 / P1101 15" TFT
1024x768 (4:3)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

 Datasheet

 User's manual



CV-115 / P1001 CV-115 / P1001 15" TFT
1024x768 (4:3)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

 Datasheet

 User's manual



CV-115 / P1001E CV-115 / P1001E 15" TFT
1024x768 (4:3)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

 Datasheet

 User's manual



CV-W115 / P1101 CV-W115 / P1101 15.6" TFT
1366x768 (16:9)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

 Datasheet

 User's manual



CV-W115 / P1001 CV-W115 / P1001 15.6" TFT
1366x768 (16:9)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

 Datasheet

 User's manual



CV-W115 / P1001E CV-W115 /P1001E 15.6" TFT
1366x768 (16:9)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

 Datasheet

 User's manual



CV-117 / P1101 CV-117 / P1101 17" TFT
1280x1024 (5:4)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

 Datasheet

 User's manual



CV-117 / P1001 CV-117 / P1001 17" TFT
1280x1024 (5:4)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

 Datasheet

 User's manual



CV-117 / P1001E CV-117 / P1001E 17" TFT
1280x1024 (5:4)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

 Datasheet

 User's manual



CV-119 / P1101 CV-119 / P1101 19" TFT
1280x1024 (5:4)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

 Datasheet

 User's manual



CV-119 / P1001 CV-119 / P1001 19" TFT
1280x1024 (5:4)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

 Datasheet

 User's manual



CV-119 / P1001E CV-119 / P1001E 19" TFT
1280x1024 (5:4)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

 Datasheet

 User's manual



CV-W121 / P1101 CV-W121 / P1101 21.5" TFT
1920x1080 (16:9)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

 Datasheet

 User's manual



CV-W121 / P1001 CV-W121 / P1001 21.5" TFT
1920x1080 (16:9)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

 Datasheet

 User's manual



CV-W121 / P1001E CV-W121 /P1001E 21.5" TFT
1920x1080 (16:9)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

 Datasheet

 User's manual



CV-W124 / P1101 CV-W124 / P1101 24" TFT
1920x1080 (16:9)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

 Datasheet

 User's manual



CV-W124 / P1001 CV-W124 / P1001 24" TFT
1920x1080 (16:9)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

 Datasheet

 User's manual



CV-W124 / P1001E CV-W124 /P1001E 24" TFT
1920x1080 (16:9)
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

 Datasheet

 User's manual
