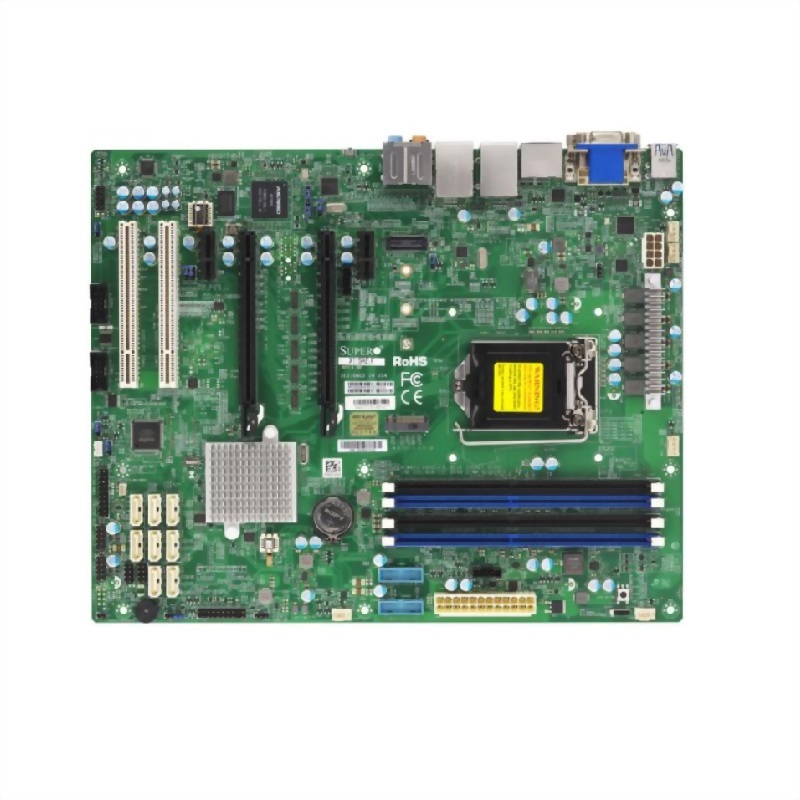

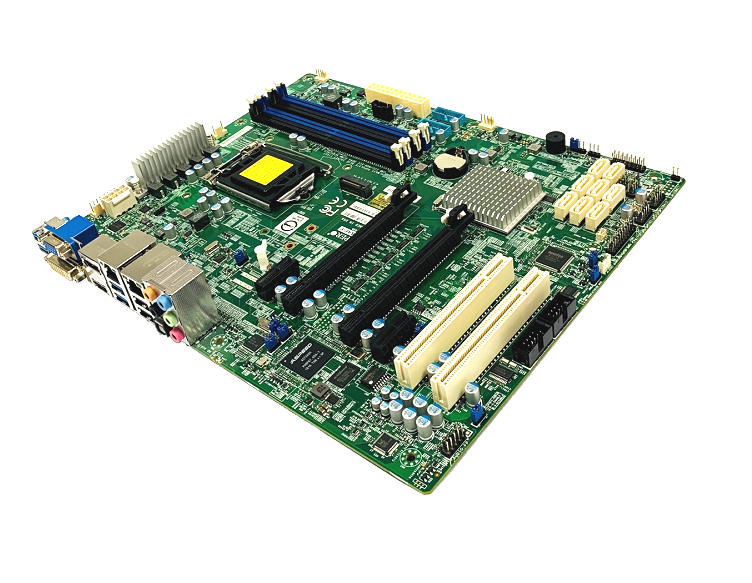

MBD-X11SAE-F (Workstation)

Single socket H4 (LGA 1151) supports, Intel® Xeon® processor E3-1200 v5/v6, Intel® 6th/7th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®Intel® C236 chipset, Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots, 2 PCI-E 3.0 x16 (run at 16/NA or 8/8), 2 PCI-E 3.0 x1, and 2 5V PCI 32-bit slots, Single GbE LAN with Intel® i210-AT (Share with IPMI); single GbE LAN with Intel® i219LM, 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280) I/O: 1 VGA, 2 COM, TPM header, 6 USB 3.0 (2 rear + 4 via header(s)), 6 USB 2.0 (2 rear + 4 via header(s)) , 2 USB 3.1 (10Gbps, rear)
型號 : X11SAE-F

Supermicro-X11SAE-F主板支援CPULGA 1151(H4)插槽

  • E3-1200 v5系列
  • 第六代Intel®Core™i7 / i5 / i3系列
  • Pentium®或Celeron®處理器,內置Intel®C236Express芯片組,為工作站平台提供卓越的性能和存儲能力。

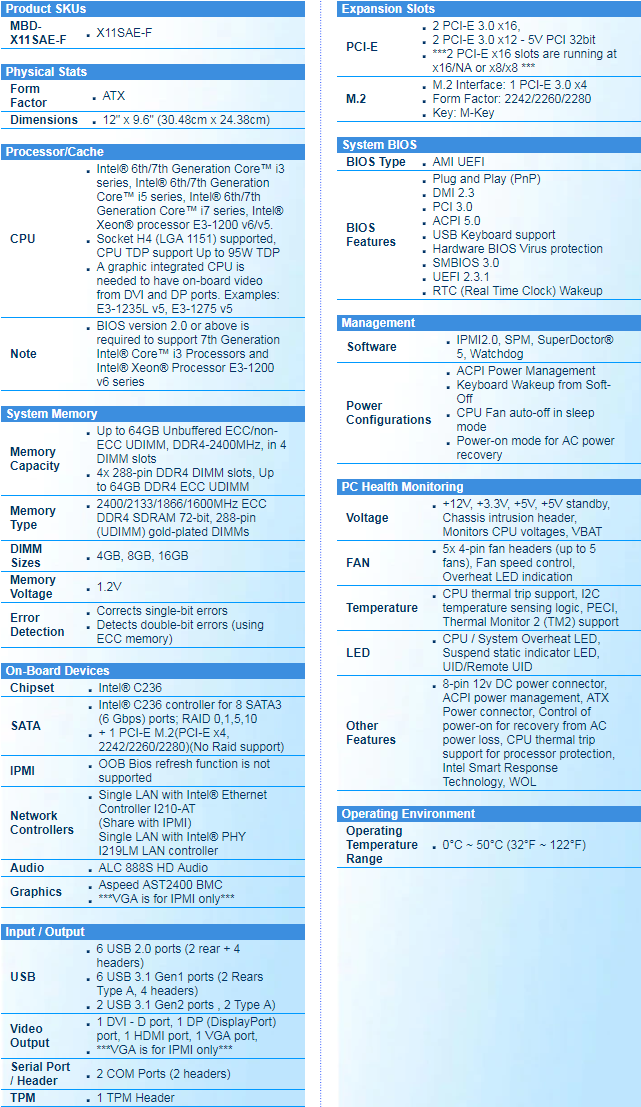

  • Single socket H4 (LGA 1151) supports
    Intel® Xeon® processor E3-1200 v5/v6,
    Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
    Intel® Celeron® and Intel® Pentium®
  • Intel® C236 chipset
  • Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
  • 2 PCI-E 3.0 x16 (run at 16/NA or 8/8), 2 PCI-E 3.0 x1, and 2 5V PCI 32-bit slots
  • Single GbE LAN with Intel® i210-AT (Share with IPMI); single GbE LAN with Intel® i219LM
  • 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280)

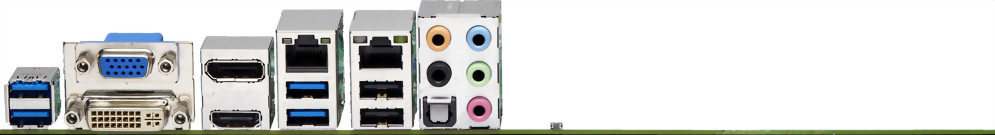

  • I/O: 1 VGA, 2 COM, TPM header
  • 6 USB 3.0 (2 rear + 4 via header(s))
    6 USB 2.0 (2 rear + 4 via header(s))
    2 USB 3.1 (10Gbps, rear)

Parts List

Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SAE-F 1 X11SAE-F Motherboard
SATA cable CBL-0044L 2 57.5CM SATA FLAT S-S PBF
IO shield MCP-260-00063-1N 1 X11SAE-F I/O Shield

Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SAE-F 1 X11SAE-F Motherboard
Quick Reference Guide MNL-1820-QRG 1 X11SAE-F Quick Reference Guide
SATA cable CBL-0044L 6 57.5CM SATA FLAT S-S PBF
IO shield MCP-260-00063-1N 1 X11SAE-F I/O Shield
