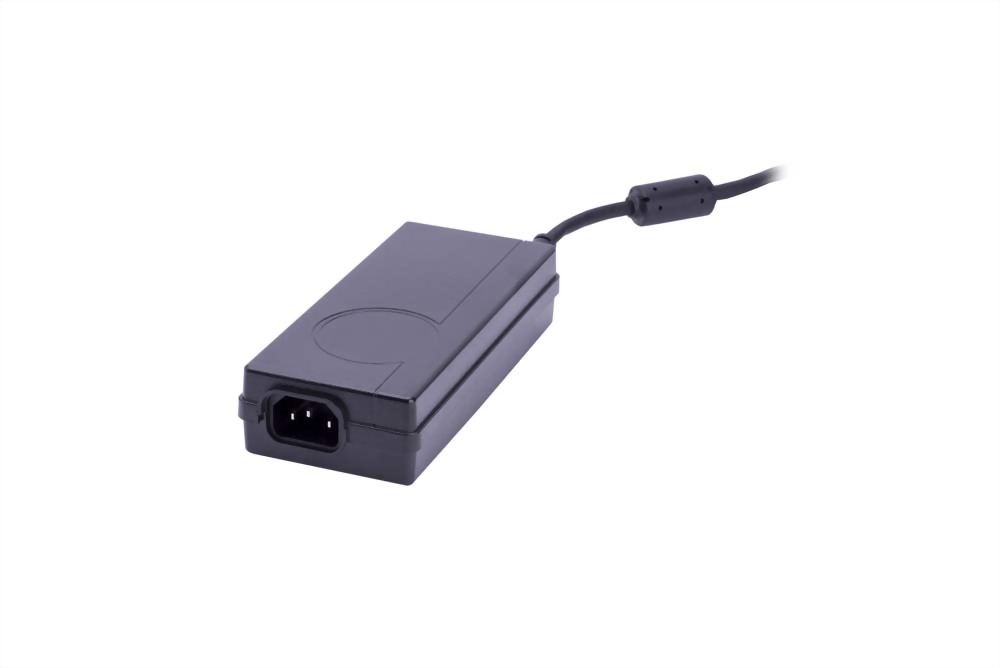

ME90 外接式電源
• A high-performance power supply designed for Test and Measurement and Industrial applications.
• Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.
• Great EMI, EMC, and noise performance ensures easy integration into the end equipment.
• Meets DoE Efficiency Level VI Requirements
• Up to 90W of AC-DC Power
• Universal Input 90-264Vac Input Range
• Desktop Style
• Meets “Heavy Industrial” Levels of EN61000 EMC Requirements
• Meets EN55022/CISPR22, FCC Part 15.109 Class B Conducted & Radiated Emissions, with 6db margin
• Approved to EN/IEC/UL60950-1, 2nd Ed., Am.2
• EN/IEC/cUL62368-1 update in progress
• E-cap life of >7 years
• >500,000 Hours MTBF
• IP22 Rated Enclosure
• Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.
• Great EMI, EMC, and noise performance ensures easy integration into the end equipment.
• Meets DoE Efficiency Level VI Requirements
• Up to 90W of AC-DC Power
• Universal Input 90-264Vac Input Range
• Desktop Style
• Meets “Heavy Industrial” Levels of EN61000 EMC Requirements
• Meets EN55022/CISPR22, FCC Part 15.109 Class B Conducted & Radiated Emissions, with 6db margin
• Approved to EN/IEC/UL60950-1, 2nd Ed., Am.2
• EN/IEC/cUL62368-1 update in progress
• E-cap life of >7 years
• >500,000 Hours MTBF
• IP22 Rated Enclosure
型號 :
ME90
| MAX WATTS | 90.00W |
| OUTPUT RANGE (VDC) | 12-48 |
| FORM FACTOR | Desktop |
| SIZE (METRIC/SAE) | 65.5 x 150.5 x 34 (2.58 x 5.9 x 1.34) |
| EFFICIENCY | Meets Efficiency Level VI Efficiency |
| SAFETY APPROVALS | IEC/EN/UL60950-1 |
- A high-performance power supply designed for Test and Measurement and Industrial applications.
- Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.
- Great EMI, EMC, and noise performance ensures easy integration into the end equipment.
- Meets DoE Efficiency Level VI Requirements
- Up to 90W of AC-DC Power
- Universal Input 90-264Vac Input Range
- Desktop Style
- Meets “Heavy Industrial” Levels of EN61000 EMC Requirements
- Meets EN55022/CISPR22, FCC Part 15.109 Class B Conducted & Radiated Emissions, with 6db margin
- Approved to EN/IEC/UL60950-1, 2nd Ed., Am.2
- EN/IEC/cUL62368-1 update in progress
- E-cap life of >7 years
- >500,000 Hours MTBF
- IP22 Rated Enclosure
