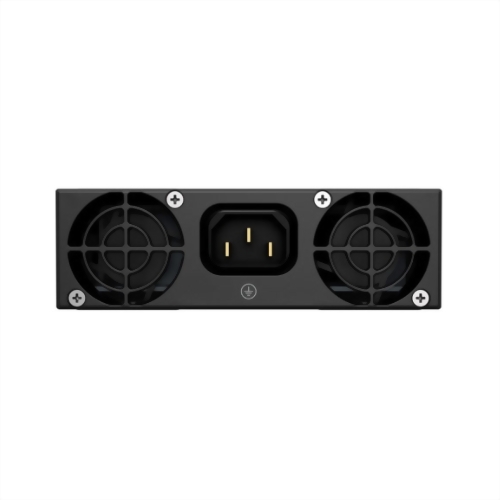

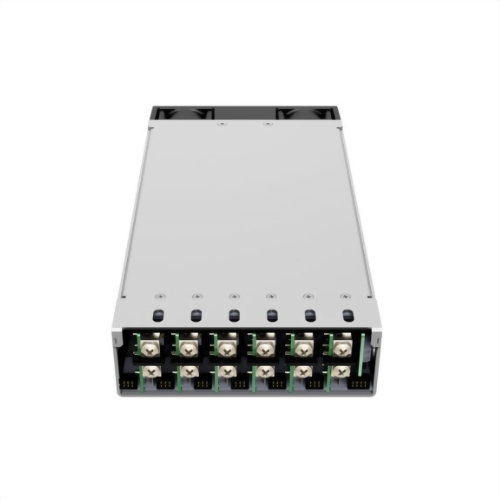

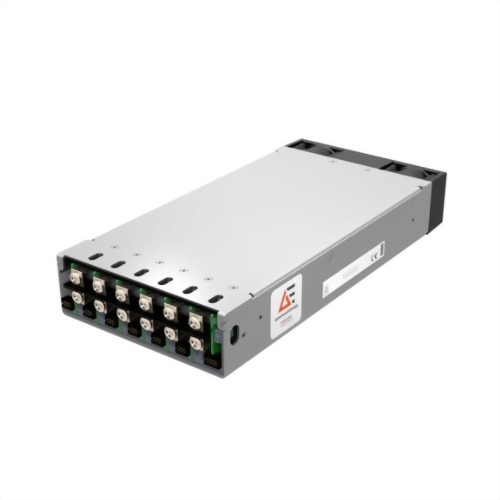

Access incredible power via a compact supply. The modular Excelsys CoolX®1800 offers 1800 W in a 267 x 127 x 41 mm package (approximately 50% more power than the industry standard). Outputs can be parallel connected for higher currents and series connected for higher voltages (up to 348 VDC).

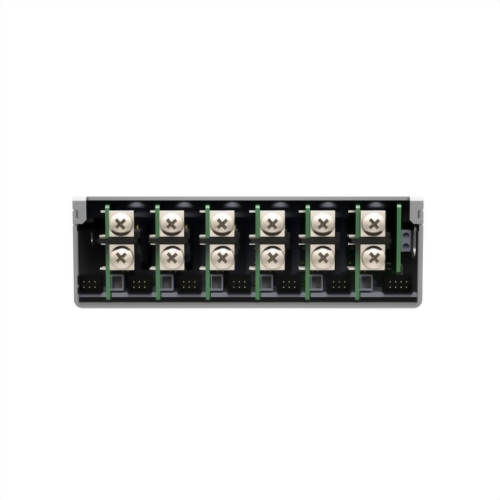

The series is available in two base models. The CX18S has the IEC60950 (second edition) certification for industrial applications and will comply with the upcoming IEC62368-1 standard. The CX18M carries IEC60601-1 (third edition) and the IEC60601-1-2 (fourth edition, EMC) standards for medical applications. Both can be populated with up to six CoolMods, providing up to 12 isolated DC outputs that range from 1 to 58 V.

• High Power Density: 1800 W in a 267 x 127 x 41 mm package

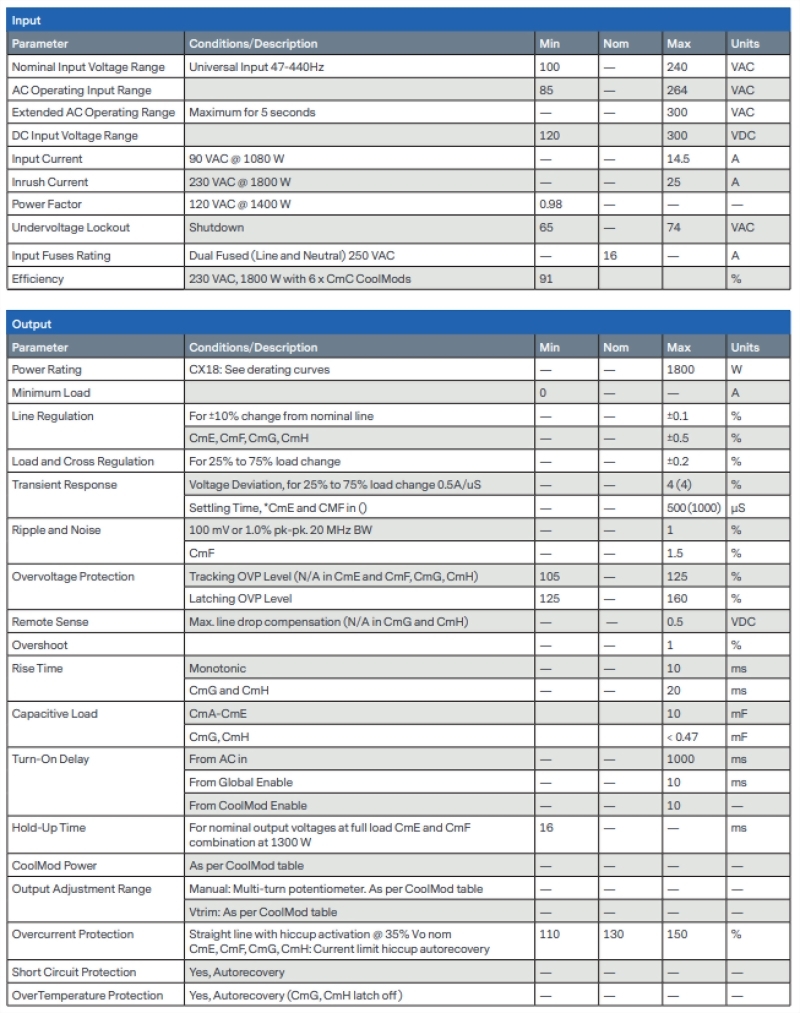

• Full Safety Agency Approvals: See Technical Specs for details
• Intelligent Digital Power: Access maximum flexibility with analog and digital control (PMBus™)
• User- and Field-Configurable: Configure outputs to setpoint voltages; connect in parallel/series for higher output current and/or voltages
• High Reliability and Efficiency: Help ensure quality, reliability, and a low total cost of ownership
