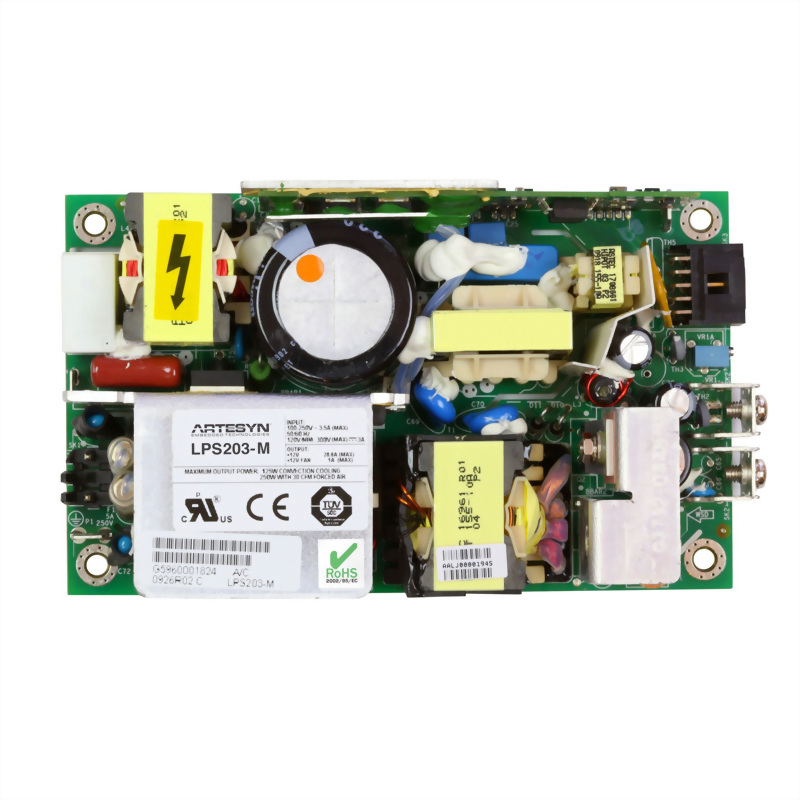

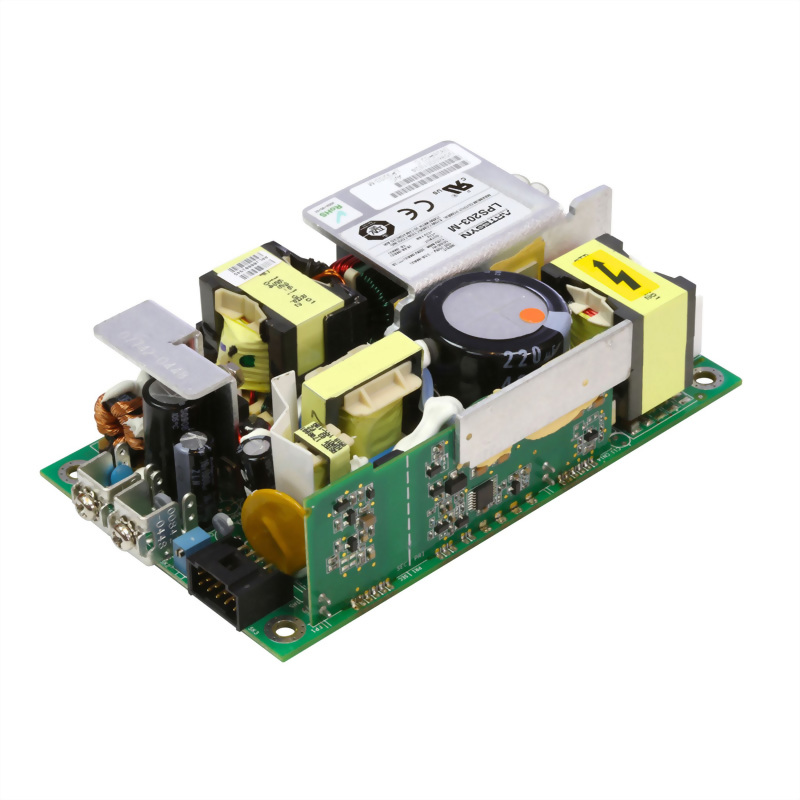

LPS200-M Series低功率開放式電源

The LPS200-M series of open-frame AC-DC power supplies comprises four single output models, offering voltages of 5 V, 12 V, 15 V, 24 V or 48 V, plus an isolated 12 V fan output.
型號 : lps200-m series

All four models feature ITE and medical safety approvals and accept a universal input of 90—264 Vac or 120—300 Vdc. Comprehensive overcurrent, overvoltage and overtemperature protection is provided as standard. Additional facilities include main output remote sense and remote indication of power failure. LPQ200-M series power supplies have a typical full load efficiency of 88 percent and a power density in excess of 11 watts per cubic inch. They provide 125 watts of output power with free air convection cooling and 230 watts with 30 CFM of forced air. Less than 1U high, the power supplies are ideal for light industrial systems as well as for non-patient contact and non-patient critical medical applications.

Total Max Power:

250 W

Output Voltage:

4.5 V to 52.8 V

Warranty:

2 years

Total Max Current:

40 A

Outputs:

Single

Operating Temperature:

-20° C to 50° C

Input Voltage:

90 V to 264 V

Size (L x W x H):

5.000" x 3.000" x 1.320"

  • Medical and ITE safeties
  • Active power factor correction
  • 3 x 5 x 1U form factor
  • Isolated 12 V Fan output
  • Overload protection
  • Built-in Class B EMI filter



  • Remote sense
  • EN61000-3-2 compliant
  • Adjustable main output
  • Power fail
  • Thermal overload protection
  • Overvoltage protection
