AXA 10W 9-75 Vin Series

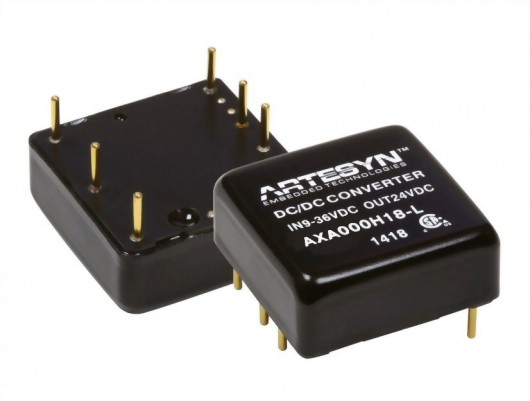

The AXA series of high-input isolated DC-DC converters that feature an ultra wide 4:1 input voltage range of 18–75 Vdc or 9-36Vdc respectively and are primarily designed for use with nominal 48V or 24V supplies.
型號 : axa 10w series

There is a choice of five single output models, offering single voltage versions of 3.3 V, 5 V, 12 V, 15 V or 24 V and dual output versions of +/-5V, +/-12V and +/-15V. The converters are fully encapsulated in a compact 1 x 1 inch (25.4 x 25.4 mm) metal case incorporating an isolated baseplate and have a height of just 0.4 inch (10.2 mm). An optional clip-on heatsink is available for convection cooling. Standard features include 1,500 Vdc input/output isolation, remote On/Off and hiccup mode short-circuit protection.

AXA series converters have an operating temperature range of -40 to 85˚C and are suitable for diverse low power applications in areas such as industrial automation, instrumentation, test and measurement, and telecommunications. They are ideal for ruggedized applications involving harsh environments. All output models have a power output rating of 10 watts.

  • Total Max Power:
    10 W
  • Total Max Current:
    2.2 A
  • Input Voltage:
    9 V to 75 V
  • Output Voltage:
    -15 V to 24 V
  • Outputs:
    Single, Dual
  • Size (L x W x H):
    1.000" x 1.000" x 0.400"
  • Warranty:
    2 years
  • Operating Temperature:
    -40 to +85 degC
  • - Package size 1.0” x 1.0” x 0.4”
  • - Ultra-wide 4:1 input range: 9 - 36 Vin, 18 - 75 Vin
  • - Very high efficiency up to 87%
  • - Operating temperature range:
  • - -40 °C to +85 °C
  • - Output voltage adjustable
  • - I/O isolation voltage 1500 VDC
  • - Remote ON/OFF control
  • - Metal case with isolated baseplate
  • - CSA/UL/IEC/EN 60950-1
  • Safety Approval
