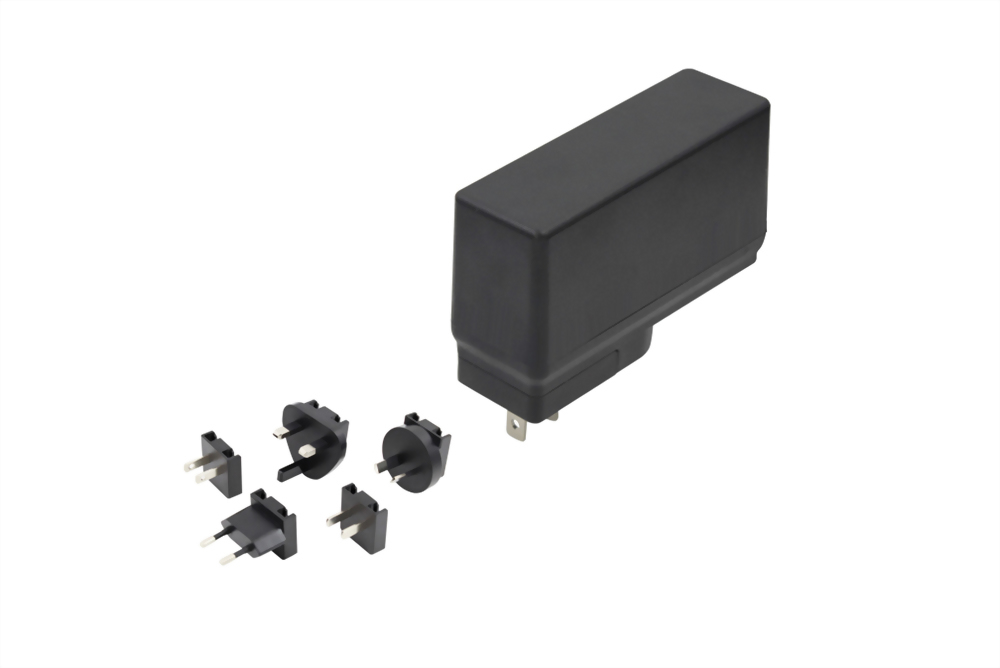

SLE36 墻插式變壓器
• Medical & ITE Safety Approvals
• 2 x MOPP Input to Output Isolation
• Suitable for Medical Equipment Up to Class BF(^
• Low Leakage Current ≤50μA
• DOE Efficiency Level VI
• CoC V5 Tier 2(2016)
• ≤0.075W Standby Power
• 9V to 36V Outputs, Up to 36W
• Up to 5,000m Operating Altitude
• AC Inlet IEC60320 C8 (class II) input
• Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
• Blades Sold Separately
• 2 x MOPP Input to Output Isolation
• Suitable for Medical Equipment Up to Class BF(^
• Low Leakage Current ≤50μA
• DOE Efficiency Level VI
• CoC V5 Tier 2(2016)
• ≤0.075W Standby Power
• 9V to 36V Outputs, Up to 36W
• Up to 5,000m Operating Altitude
• AC Inlet IEC60320 C8 (class II) input
• Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
• Blades Sold Separately
型號 :
SLE36
| MAX WATTS | 36.00W |
| OUTPUT RANGE (VDC) | 9-36 |
| FORM FACTOR | Wall-Mount |
| SIZE (METRIC/SAE) | 96.7 x 33 x 50.5 (3.81 x 1.30 x 1.99) |
| EFFICIENCY | 88%, typ. Efficiency |
| SAFETY APPROVALS | IEC/EN/CSA/UL60601-1, AS/NZS/J/K/EN/CSA/UL62638-1, IEC/EN/UL60601-1, IEC60950-1 |
- Medical & ITE Safety Approvals
- 2 x MOPP Input to Output Isolation
- Suitable for Medical Equipment Up to Class BF(^
- Low Leakage Current ≤50μA
- DOE Efficiency Level VI
- CoC V5 Tier 2(2016)
- ≤0.075W Standby Power
- 9V to 36V Outputs, Up to 36W
- Up to 5,000m Operating Altitude
- AC Inlet IEC60320 C8 (class II) input
- Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
- Blades Sold Separately
