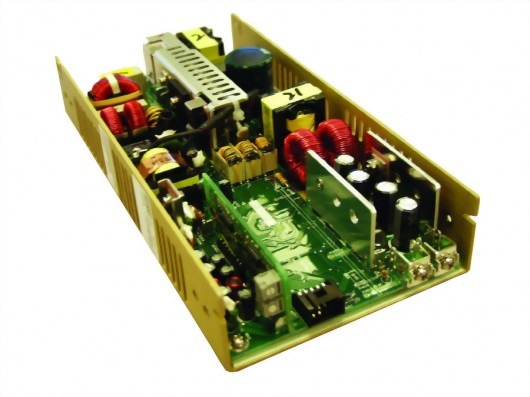

LP170 Series開放式電源
lp170系列包含:lps170 serie,lps170-m series,lpq170 series
型號 :
lps170 serie,lps170-m series,lpq170 series
| LP170系列** | |||||
|
輸出V1 |
輸出V2 | 輸出V3 | 輸出V4 | 尺寸(寬×長×高)(mm) | 型號 |
|
5 V @ 22 A [35 A]*
(2.5-6 V)
|
|
|
|
4.25” x 8.5” x 1.5”
(108 x 215.9x 38.1)
|
LPS172 |
|
12 V @ 9.1 A [15 A]*
(6-12 V)
|
|
|
|
|
LPS173 |
|
15 V @ 7.3 A [12 A]*
(12-24 V)
|
|
|
|
|
LPS174 |
|
24 V @ 4.5 A [7.5 A]*
(24-54 V)
|
|
|
|
|
LPS175 |
|
5 V @ 15 A [30 A]
(3.3-5.5 V)
|
12 V @ 6 A [8 A] |
-12 V @ 0.2 A [3 A]
(-12-15 V)
|
±3.3-25 V @
2 A [5 A]*
|
|
LPQ172 |
|
5 V @ 10 A [24 A]
(3.3-5.5 V)
|
12 V @ 6 A [8 A] |
-12 V @ 1.2 A [3 A]
(-12-15 V)
|
5 V @ 10 A [24 A]*
(3.3-5 V)
|
|
LPQ173 |
|
* 浮置輸出
**本產品是器件電源，僅可由專業安裝人員安裝在其他設備中，禁止作為獨立產品
運行。必須根據相應標準驗證系統級的 EMC 合規性。本產品的銷售目標是 OEM
和系統集成商，銷售管道包括分銷管道。終端使用者不是其銷售目標。
|
|||||
LPS170-M Medical Series
-
Total Max Power:
175 W -
Total Max Current:
22 A -
Input Voltage:
85 V to 264 V -
Output Voltage:
2.5 V to 54 V -
Outputs:
Single -
Size (L x W x H):
4.250" x 8.500" x 1.500" -
Warranty:
2 years -
Operating Temperature:
0 to +70°C
LPS170 Series
-
Total Max Power:
175 W -
Total Max Current:
22 A -
Input Voltage:
85 V to 264 V -
Output Voltage:
2.5 V to 54 V -
Outputs:
Single -
Size (L x W x H):
4.250" x 8.500" x 1.500" -
Warranty:
2 years -
Operating Temperature:
0 to +70°C
LPQ170 Series
-
Total Max Power:
175 W -
Total Max Current:
30 A -
Input Voltage:
85 V to 264 V -
Output Voltage:
-15 V to 12 V -
Outputs:
Quad -
Size (L x W x H):
4.250" x 8.500" x 1.500" -
Warranty:
2 years -
Operating Temperature:
0 to +70°C
LPS170-M Medical Series
- Medical safety approvals
- Built-in EMI filter
- 5 V standby output
- DC power good
- Optional cover (-C suffix)
- Thermal overload protection
- Overvoltage protection
- Low output ripple
- Active power factor correction
- IEC EN61000-3-2 compliance
- Wide Range Adjustable output
- Remote sense on main output
- 12 V Aux output
- Overload protection
- Power fail and remote inhibit
- Single wire current sharing
- Floating output
LPS170 Series
- Built-in EMI filter
- 5 V standby output
- DC power good
- Optional cover (-C suffix)
- Thermal overload protection
- Overvoltage protection
- Low output ripple
- Active power factor correction
- IEC EN61000-3-2 compliance
- Wide Range Adjustable output
- Remote sense on main output
- 12 V Aux output
- Overload protection
- Power fail and remote inhibit
- Single wire current sharing
LPQ170 Series
- Overvoltage protection
- IEC EN61000-3-2 compliance
- DC power good
- Low output ripple
- 5 V standby output
- Active power factor correction
- Adjustable outputs on 1, 3 & 4
- Single wire current sharing
- Built-in EMI filter
- Power fail and remote inhibit
- Thermal overload protection
- Adjustable floating 4th output
- Remote sense on main output
- Optional cover (-C suffix)
- Overload protection
