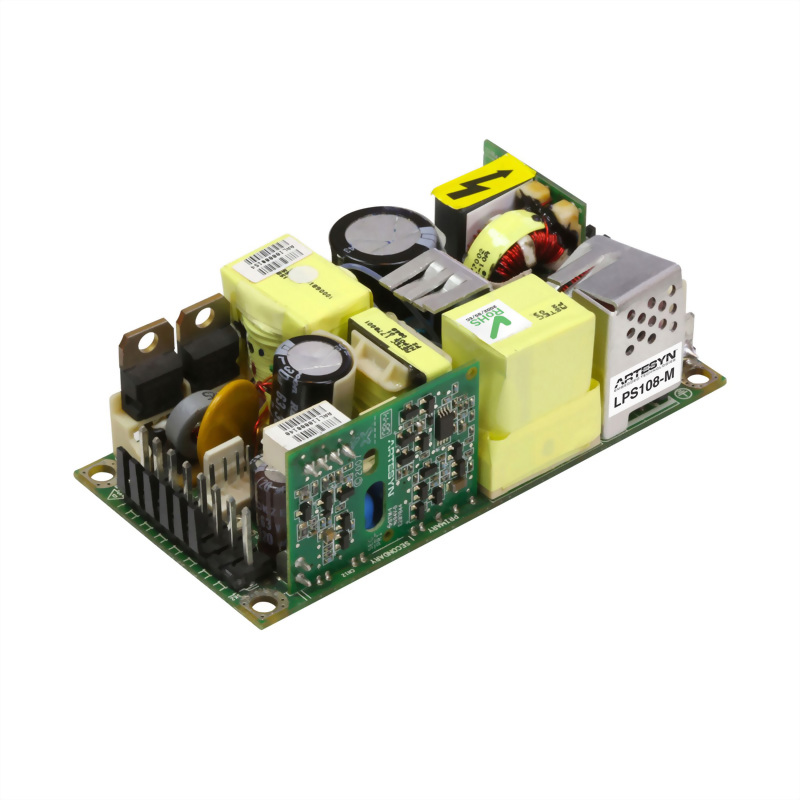

LPS100-M Series低功率開放式電源

The LPS100-M series of open-frame AC-DC power supplies features ITE and medical safety approvals. The series offers a choice of six single output models, with voltages of 5 V, 12 V, 15 V, 48 V or 54 Vdc.
型號 : lps100-m series

Each model also provides an isolated 12 V fan output. The main output of the 54 V model features POE (Power over Ethernet) isolation. LPS100-M series power supplies have a typical full load power conversion efficiency of 88% and with a height of only 1.29 inches offer a power density in excess of 14 watts per cubic inch. The series is primarily designed for use in information technology equipment (ITE) and light industrial systems, as well as for equipment intended for non-patient contact and non-patient critical use in low power medical, dental and laboratory applications.

Total Max Power:

150 W

Output Voltage:

4.5 V to 59.4 V

Warranty:

2 years

Total Max Current:

24 A

Outputs:

Single

Operating Temperature:

-20° C to 70° C

Input Voltage:

90 V to 264 V

Size (L x W x H):

4.000" x 2.000" x 1.290"



  • Medical and ITE safeties
  • Active power factor correction
  • 2 x 4 x 1U form factor
  • Isolated 12 V Fan output
  • Overload protection
  • Built-in Class B EMI filter
  • Remote sense



  • EN61000-3-2 compliant
  • Adjustable main output
  • Power fail
  • Thermal overload protection
  • Overvoltage protection
  • POE isolation on main output of the LPS109-M
