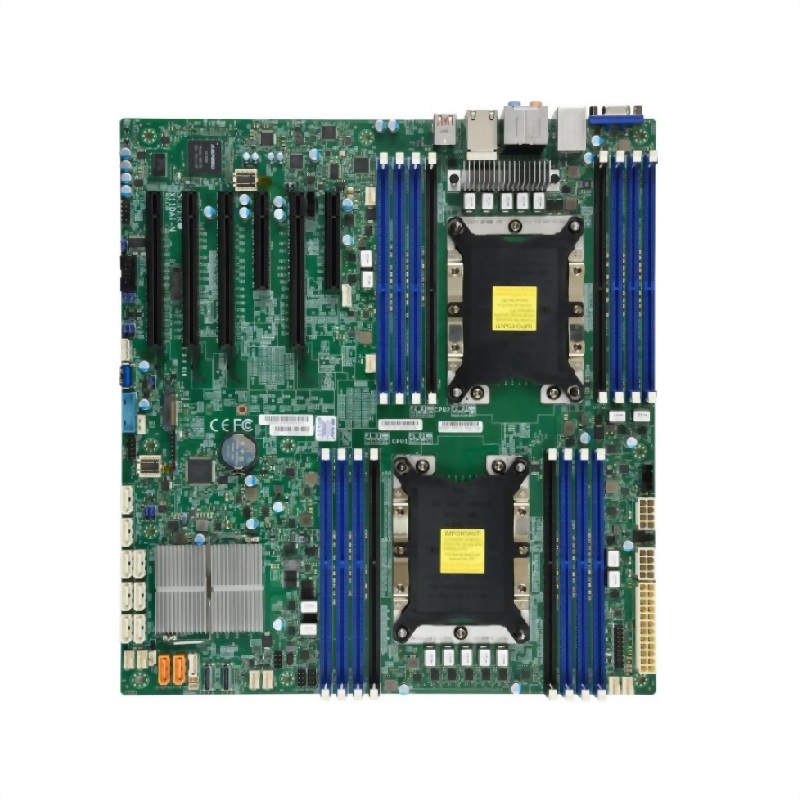

MBD-X11DAi-N

2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.Dual Socket P (LGA 3647) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s.Intel® C621.Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
型號 : X11DAi-N

  1. 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.
    Dual Socket P (LGA 3647) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
  2. Intel® C621
  3. Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;
    Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
  4. 4 PCI-E 3.0 x16,
    2 PCI-E 3.0 x8
    M.2 Interface: PCI-E 3.0 x4
    M.2 Form Factor: 2260, 2280, 22110
    M.2 Key: M-Key,
    2 PCI-E 3.0 NVMe x4 Internal Port(s)

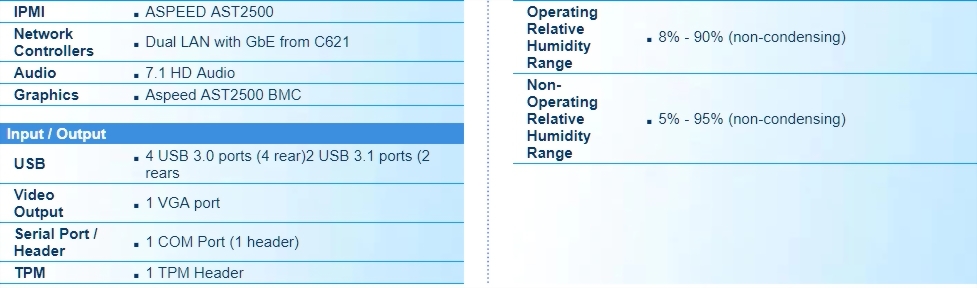

  5. 1 VGA port
  6. Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. Dual LAN with GbE from C621

Parts List

Parts List (Bulk Package)
Name Part Number Qty Description
X11DAi-N MBD-X11DAi-N 1 Motherboard
IO Cable CBL-0044L 2 SATA CABLE 61CM FLAT S-S PBF
I/O Shield MCP-260-00115-0N 1 STD size I/O Shield for X11DAi-N with EMI Gasket and front metal,RoHS/REACH

Parts List (Retail Package)
Name Part Number Qty Description
X11DAi-N MBD-X11DAi-N 1
IO Cable CBL-0044L 2 SATA CABLE 61CM FLAT S-S PBF
IO shield MCP-260-00115-0N 1 STD size I/O Shield for X11DAi-N with EMI Gasket and front metal,RoHS/REACH
Quick Reference Guide MNL-1957-QRG 1 Quick Reference Guide

Optional Parts List
Name Part Number Qty Description
TPM security module (optional, not included) AOM-TPM-9670V -- SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module (optional, not included) AOM-TPM-9670H SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
TPM security module (optional, not included) AOM-TPM-9671V SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
TPM security module (optional, not included) AOM-TPM-9671H SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
