• Micro ATX-Motherboard-Intel® Core™ i7/i5/i3 processor
  • Micro ATX-Motherboard-Intel® Core™ i7/i5/i3 processor

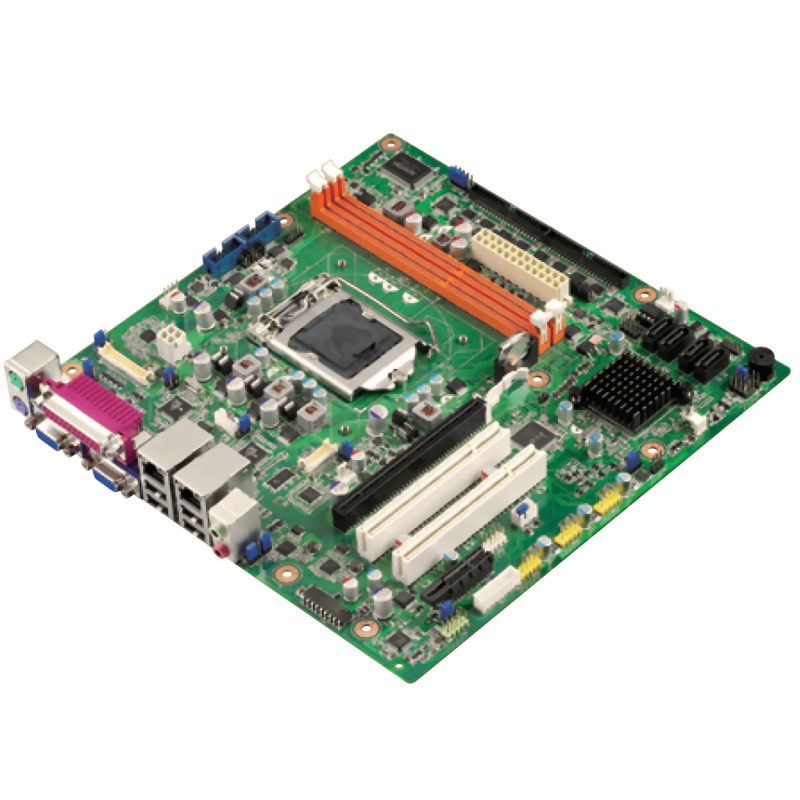

Micro ATX-Motherboard-Intel® Core™ i7/i5/i3 processor

Intel® Core™ i7/i5/i3 LGA1155 MicroATX with
CRT/DVI/LVDS, 10 COM, 10 USB 2.0, Dual LAN
型號 : AIMB-501G2-KSA1E

  • Supports Intel® Core™ i7/i5/i3 processor with H61 chipset Two DIMM sockets support up to 16 GB DDR3 1600/1333 MHz SDRAM
  • Supports dual display of VGA, DVI, LVDS and two GbE LAN
  • Supports 10 COM, LPT, TPM 1.2 (Optional)
  • Supports 10 USB 2.0 or 2 USB 3.0 and 8 USB 2.0
  • Supports SUSIAccess, McAfee, Acronis and Embedded Software APIs
