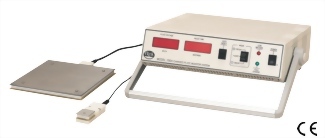

Trek 156A 充電板監測儀
• Customizable measurement capacitance provides assurance that ESD process needs are met in manufacturing and that there is compliance to ANSI/ESD-STM3.1 and IEC 61340-5-1.
• Extremely low offset and drift ensures high accuracy, making it ideal for applications requiring critical ion balance such as GMR and TMR manufacturing areas
• Compact and lightweight, for easy portability within a facility
• NIST-traceable Certificate of Calibration provided with each unit
• Extremely low offset and drift ensures high accuracy, making it ideal for applications requiring critical ion balance such as GMR and TMR manufacturing areas
• Compact and lightweight, for easy portability within a facility
• NIST-traceable Certificate of Calibration provided with each unit
型號 :
Trek 156A
The Model 156A tests the efficiency of an ionizer’s ion production by timing how long it takes air ions produced to discharge a floating plate that has been pre-charged to either a positive or negative value. The Model 156A also tests the balance between positive and negative air ions by measuring the offset voltage generated on a floating plate due to an imbalance of positive and negative air ions impinging on the plate from the ionizer.
• Large Signal Bandwidth: DC to 10 Hz
• Decay Mode Thresholds:
Start/Stop Voltages Programmable from 1 to ±1000 V in 1 V increments
Start/Stop Accuracy Within ±1 V of programmed voltage
- ESD monitoring of sensitive manufacturing processes such as semiconductor, disk drive and LCD
- Testing of all types of ionizers, including room ionization systems, AC and DC blowers, nuclear ionizers, gun type ionizers, and pulsed DC ionizers
- High temperature applications
- ESD measurement of de-ionized water
- Dissipative testing applications
