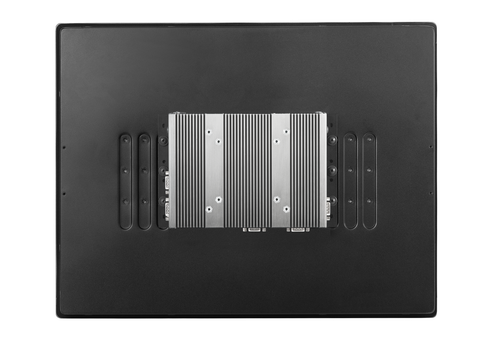

CS-100/P1000 Series

CS-100/P1000系列高效能陽光下可視工業平板電腦是一體化設計,採用英特爾®低功耗四核處理器,亮度可達1600 nits,屏幕可以從10至19吋做選擇,並帶有投影式電容觸摸屏,是一個堅固可靠的平板電腦解決方案,適用於陽光下或戶外工業應用。
型號 : CS-100/P1000 Series

CS-P1000
IP65 Compliant Aluminum Die-Cast Front Frame
Supports Panel / Wall / VESA Mounting
True Flat IP65 Front Panel Protection
Wide Operating Temperature (-20°C to 70°C)
10.4" ~19" SVGA TFT-LCD with Resistive 5-wire / Projected CapacitiveTouch
Onboard Intel x7-E3950 / N4200 /  E3845
Brightness (cd/m2)1500-1600
Product Model Name Display CPU I/O Expansion
NEW
CS-108 / P1101
CS-108 / P1101 8.4" TFT
800 x 600 (4:3)
1600 nits
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

 Datasheet
 User's manual

NEW
CS-108 / P1001
CS-108 / P1001 8.4" TFT
800 x 600 (4:3)
1600 nits
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

 Datasheet
 User's manual

NEW
CS-108 / P1001E
CS-108 / P1001E 8.4" TFT
800 x 600 (4:3)
1600 nits
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

 Datasheet
 User's manual

CS-110 / P1101 CS-110 / P1101 10.4" TFT
1024 x 768 (4:3)
1500 nits
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

 Datasheet
 User's manual

CS-110 / P1001 CS-110 / P1001 10.4" TFT
1024 x 768 (4:3)
1500 nits
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

Datasheet
User's manual

CS-110 / P1001E CS-110 / P1001E 10.4" TFT
1024 x 768 (4:3)
1500 nits
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

Datasheet
User's manual

CS-112 / P1101 CS-112 / P1101 12.1" TFT
1024 x 768 (4:3)
1500 nits
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

Datasheet
User's manual

CS-112 / P1001 CS-112 / P1001 12.1" TFT
1024 x 768 (4:3)
1500 nits
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

Datasheet
User's manual

CS-112 / P1001E CS-112 / P1001E 12.1" TFT
1024 x 768 (4:3)
1500 nits
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

Datasheet
User's manual

CS-115 / P1101 CS-115 / P1101 15" TFT
1024x768 (4:3)
1600 nits
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

Datasheet
User's manual

CS-115 / P1001 CS-115 / P1001 15" TFT
1024x768 (4:3)
1600 nits
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

Datasheet
User's manual

CS-115 / P1001E CS-115 / P1001E 15" TFT
1024x768 (4:3)
1600 nits
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

Datasheet
User's manual

CS-117 / P1101 CS-117 / P1101 17" TFT
1280x1024 (5:4)
1500 nits
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

Datasheet
User's manual

CS-117 / P1001 CS-117 / P1001 17" TFT
1280x1024 (5:4)
1500 nits
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

Datasheet
User's manual

CS-117 / P1001E CS-117 / P1001E 17" TFT
1280x1024 (5:4)
1500 nits
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

Datasheet
User's manual

CS-119 / P1101 CS-119 / P1101 19" TFT
1280x1024 (5:4)
1600 nits
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO

2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

Datasheet
User's manual

CS-119 / P1001 CS-119 / P1001 19" TFT
1280x1024 (5:4)
1600 nits
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe

Datasheet
User's manual

CS-119 / P1001E CS-119 / P1001E 19" TFT
1280x1024 (5:4)
1600 nits
Intel® Atom™ E3845 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO

1x Mini-PCIe, 2x Universal I/O Bracket

Datasheet
User's manual
