Monroe 272A 攜帶型表面電阻計
• Ideal for testing static-control products
• Meets ESD Association ANSI/ESD STM 11.11 and ANSI/ESD STM 11.12 plus ASTM D-257 and EIA-541
• Measures both resistivity and resistance to ground
• Rugged and reliable for routine factory use
• Fast and simple to use
• 8-hour rechargeable battery
• Selectable scientific notation or 3-place log readouts
• No adjustments required
• Meets ESD Association ANSI/ESD STM 11.11 and ANSI/ESD STM 11.12 plus ASTM D-257 and EIA-541
• Measures both resistivity and resistance to ground
• Rugged and reliable for routine factory use
• Fast and simple to use
• 8-hour rechargeable battery
• Selectable scientific notation or 3-place log readouts
• No adjustments required
型號 :

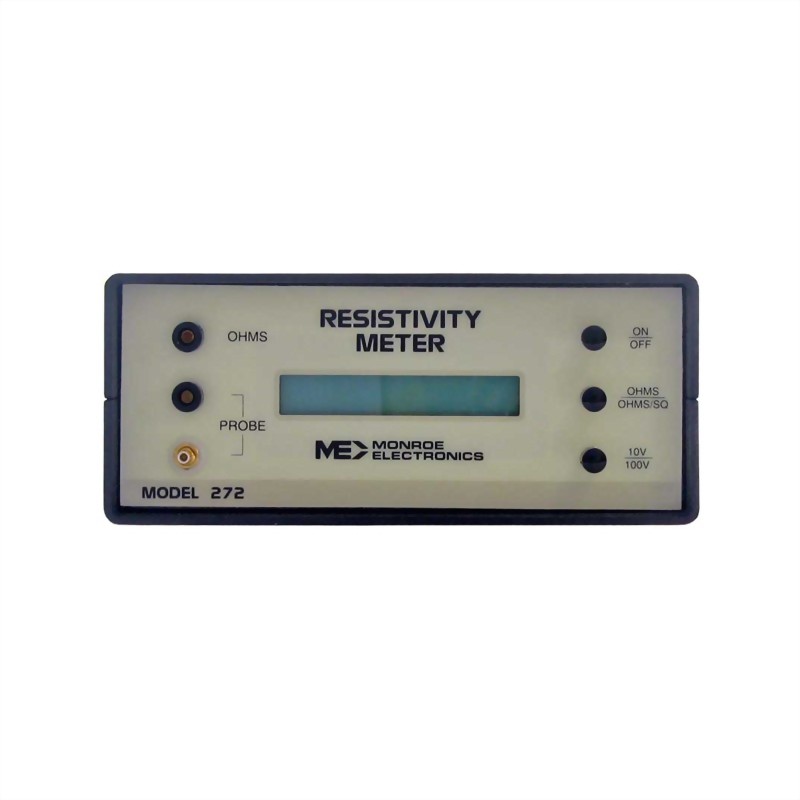

Monroe 272A
The model 272A provides rapid, accurate, and repeatable measurements of surface resistivity, volume resistivity, or resistance to ground in one versatile instrument. Use it to measure the resistive properties of static control products such as static dissipative packaging, flooring, or work surfaces over the range of 8 x 10E3 to 2 x 10E13 ohms or 8 x 10E4 to 2 x 10E14 ohms per square.
Model 272A includes a concentric ring probe and support base conforming to ASTM D-257, ANSI/ESD STM11.11, and ANSI/ESD STM11.2 for making surface and volume resistivity measurements. An adaptor is included for resistance to ground measurements.
|
Resistivity range: |
8 x 104 to 2.0 x 1014 Ω/□ |
|
Resistance range: |
8 x 103 to 2.0 x 1013 Ω |
|
Accuracy: |
±0.1 decade thru 10E12, ±0.15 decade above 10E12 (typical); ±0.1 decade thru 10E9, ±0.15 decade thru 10E11; ±0.2 decade above10E12 (max) Resistivity measuring voltage 8.0 x 104 Ω/□ to 2.0 x 1013 Ω/□: 10 volts 1.1 x 106 Ω/□ to 2.0 x 1014 Ω/□: 100 volts Resistance measuring voltage 8.0 x 103 Ω to 2.0 x 1012 Ω: 10 volts 1.1 x 105 Ω to 2.0 x 1013 Ω: 100 volts
|
|
Display type: |
16-char. alphanumeric LCD |
|
Information shown: |
Operating mode, measured Ω or Ω/□ in log or scientific notation, applied voltage, low battery indication |
|
Power: |
Rechargeable battery with 100, 120, or 230 VAC adapter/charger supplied |
|
Battery life: |
Up to 8 hours continuous operation per charge |
|
Electrode Type: |
Monroe Model 96101A-1 Guarded-ring-type designed to ASTM D-257 |
|
Weight: |
5 lbs. (2.3 kg) |
|
Outer electrode ring dimensions: |
2.25 inches (5.7 cm) ID, 0.125 inches (0.32 cm) hick |
|
Inner electrode disc diameter: |
1.2 inches (3.0 cm) |
| Electrode/meter cable length: | 3 feet (0.9 m) |
| Meter dimensions: | 2.5 x 6.0 x 6.0 inches (6.4 x 1 5.2 x 1 5.2 cm) |
| Accessories Included: | Manual on CD, Surface test electrode, surface to ground adapter, specimen plate, power supply, carrying case, connecting cable |
| Optional Probes: | Model SE0032 Mini Guard Ring Probe Model 96163 Point-to-Point Probe |
- Laboratory quality and performance
- Extremely wide measurement range
- Regulated 10V and 100V test voltages
- Portability and rugged construction ideal for manufacturing environment
