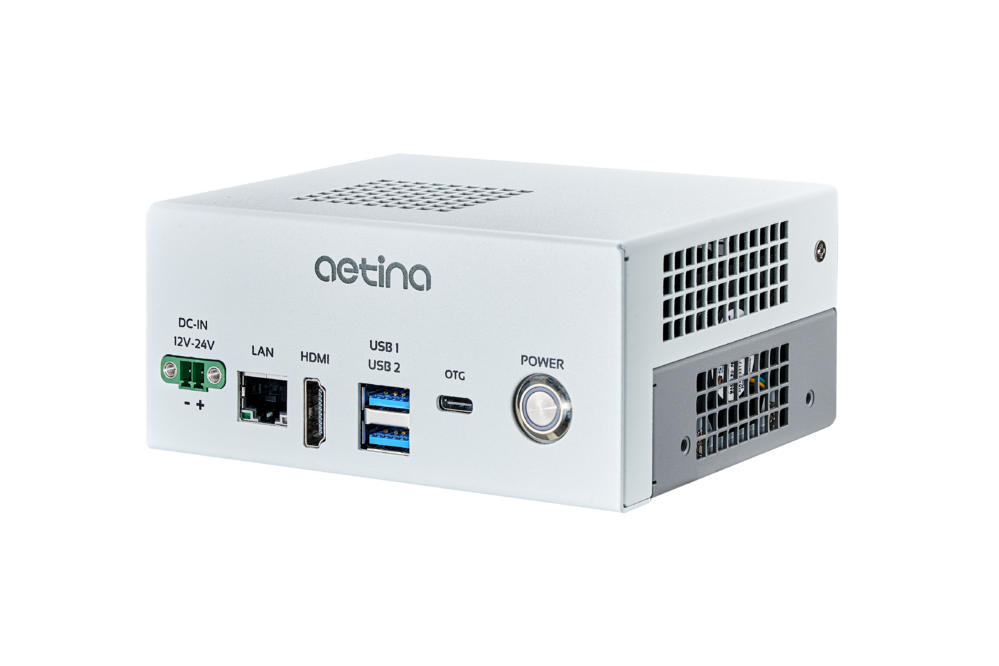

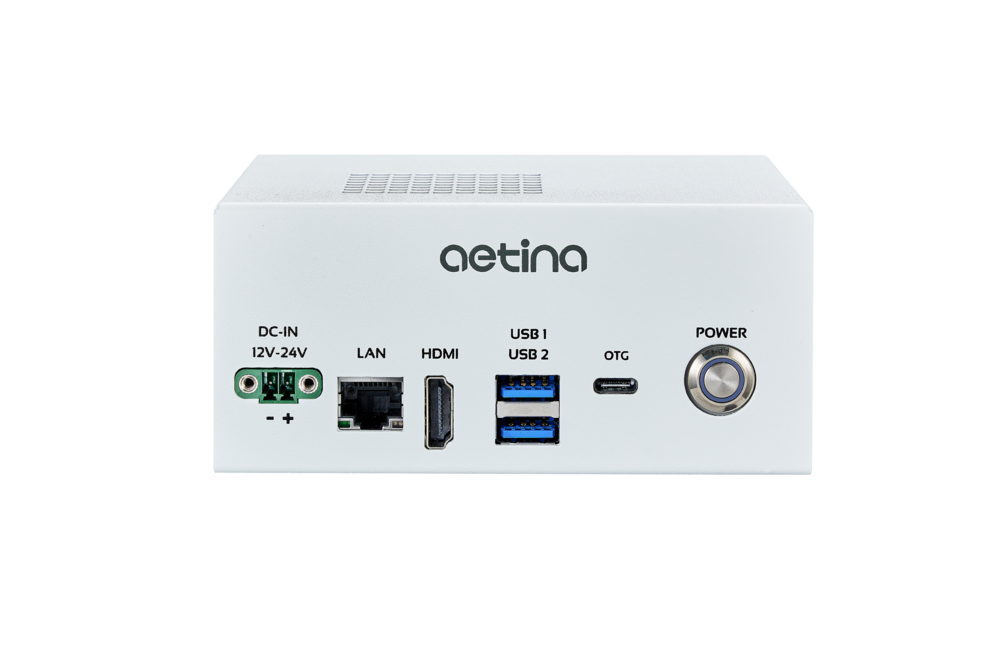

AIE-KO21/31 | AIE-KN31/41 邊緣運算電腦
•支援NVIDIA Jetson Orin™ NX 和 Orin Nano™ (支援Super Mode) 模組
• 寬輸入電壓設計：12至24VDC
• 1 x M.2 E-Key, 1 x M.2 M-Key (內建128GB)
• 1 x RJ-45 GbE Port
• 作業溫度-25°C ~ +70°C
• 寬輸入電壓設計：12至24VDC
• 1 x M.2 E-Key, 1 x M.2 M-Key (內建128GB)
• 1 x RJ-45 GbE Port
• 作業溫度-25°C ~ +70°C
型號 :
AIE-KO21/31 | AIE-KN31/41
| ● 體積最小的Jetson模組 高達80倍的AI效能可實現AI推理 |
|
NVIDIA Jetson Orin™ NX模組提供高達100 TOPS的效能，是NVIDIA Jetson AGX Xavier™模組的3倍多，NVIDIA Jetson Xavier™ NX模組的5倍左右；NVIDIA Jetson Orin Nano™提供高達40 TOPS的效能，是NVIDIA Jetson Nano™模組的80倍。換言之，NVIDIA Jetson Orin NX和Orin Nano模組為體積最小的Jetson模組建立了新的主流和入門級邊緣AI標準。 |
| ● 充足的M.2 內外儲存擴充兼備 |
| AIE-KO21/31和AIE-KN31/41是邊緣運算系統，內建1個M.2 E-Key用於Wifi/BT和1個M.2 M-Key用於儲存。為避免邊緣運算的資料儲存空間不足，AIE-KO21/31和AIE-KN31/41更支援外部M.2 2242 NVMe的高速傳輸與擴充。 |
| ● 寬輸入電壓和作業溫度 適用於各種嵌入式應用 |
|
為滿足各種嵌入式應用，尤其是具有挑戰性的環境，如智慧工廠、智慧城市和智慧交通等，AIE-KO21/31和AIE-KN31/41支援作業溫度範圍從-25°C到70°C，寬輸入電源範圍則為12到24VDC。 |
| Model Number | AIE-KO21 | AIE-KO31 | AIE-KN31 | AIE-KN41 |
| Module Compatibility | NVIDIA Jetson Orin Nano 4GB | NVIDIA Jetson Orin Nano 8GB | NVIDIA Jetson Orin NX 8GB | NVIDIA Jetson Orin NX 16GB |
| AI Performance | 20 TOPS | 40 TOPS | 70 TOPS | 100 TOPS |
| GPU | 512 Core NVIDIA Ampere, with 16 Tensor Cores | 1024 Core NVIDIA Ampere, with 32 Tensor Cores | 1024 Core NVIDIA Ampere, with 32 Tensor Cores | |
| CPU | 6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 | 6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 | 8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3 | |
| Memory | 4GB 64-bit LPDDR5 34GB/s | 8GB 128-bit LPDDR5 68GB/s | 8GB 128-bit LPDDR5 102.4 GB/s | 16GB 128-bit LPDDR5 102.4 GB/s |
| Storage | 1 x M.2 M-Key 2242 (128GB built-in) | |||
| Display | 1 x HDMI 2.0 Type A | |||
| Audio | LINE IN/OUT, Microphone (optional with daughter board) | |||
| LAN | 1 x RJ-45 GbE ports | |||
| USB |
2 x USB 3.2 Gen2 Ty pe A (supports up to 10Gbps shared) 1 x OTG Type-C |
|||
| I/O Interfaces |

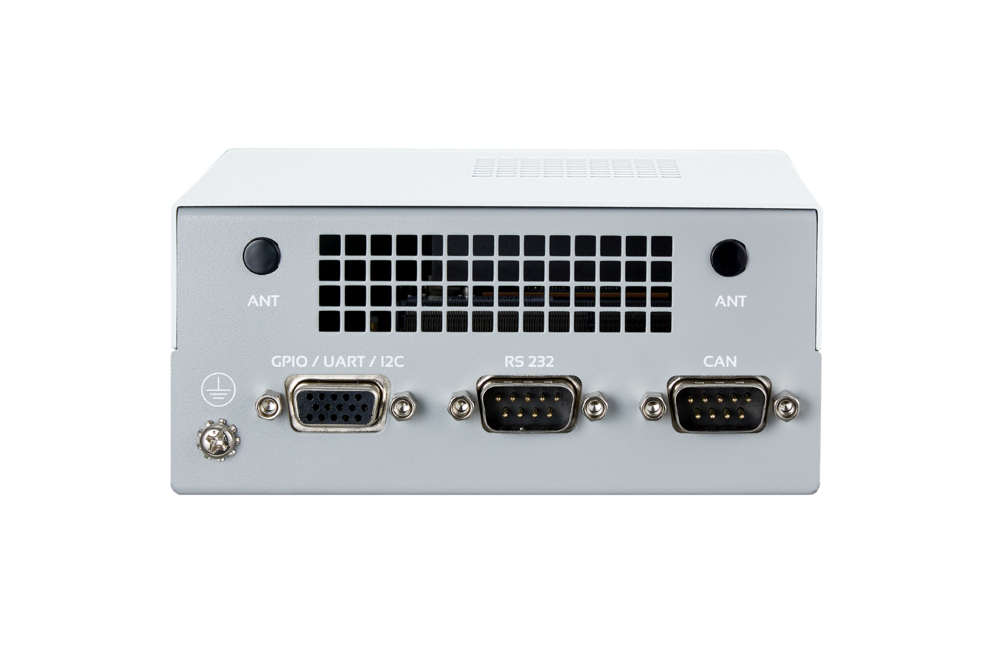

5 x GPIO, 1 x I2C, 1 x RS-232, 1 x UART, 1 x CAN (isolation; support CAN FD) |
|||
| Expansion |
1 x M.2 E-Key 2230 (WiFi/BT) 1 x M.2 M-Key 2242 (128GB built-in) |
|||

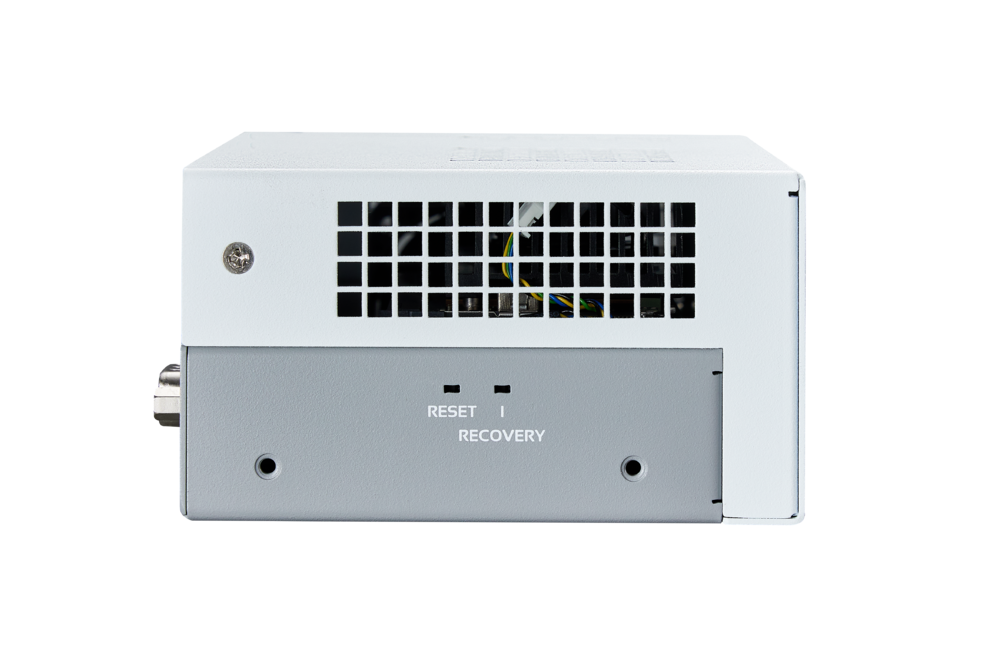

| MISC. Function | 1 x Power / 1 x Recovery Button / 1 x Reset Button | |||
| Power Input / Connector | DC-in 12-24VDC / 2-Pin Terminal Block | |||
| Power Consumption |
Idle: 8.5 W Full Loading: 30.25* W |
Idle: 7.6 W Full Loading: 40.25* W |
||
| *For more test condition information, please refer to user manual | ||||
| Dimension (WxDxH) | 123 x 99 x 56 mm (48.4 x 38.9 x 22 in) | |||
| Mounting | Wall Mount (optional) / Din Rail (optional) | |||
| Net Weight | 0.54 kg (1.2 lb) | |||
| Vibration | 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |||
| Shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration | |||
| Temperature |
Operating Temp. -25°C ~ +70°C (-13°F ~ +158°F) with 0.5 m/s air flow |
|||
| Humidity | 95% @ 40°C (104°F) (non-condensing) | |||
| Software Support | Linux (Support Jetpack 5.0 above) | |||
| Certification | CE / FCC Class A / UKCA | |||
