• Trek 2210

Trek 2210

• Four-quadrant output for driving capacitive loads
• 2-year warranty
• DC offset adjustment with front panel metering
• Auto-recovery shutdown protects the output from being overpowered
• Low output noise for ultra-accurate outputs
• All solid-state output stages
• RoHS compliant
• HALT Tested
• NIST-traceable Certificate of Calibration provided with each unit
型號 : MODEL 2210

Trek’s Model 2210 is one of several models within our 2200-series of high-voltage 40 W amplifiers. Provided at an attractive price and offering high performance, the unit incorporates DC stability, wide bandwidth and well regulated/controlled AC output signals. It also features full four-quadrant class AB all-solid-state output stages, DC offset adjustment with front panel metering, and auto recovery shutdown to protect the output from being overpowered. The instrument stage sinks or sources current into reactive or resistive loads throughout the output voltage range making it ideal to achieve the accurate output response and high slew rates demanded by reactive loads.

Dimensions: 85 mm H x 205 mm W 325 mm D (3.3” H x 8.1” W x 12.8” D)

Weight: 2 kg (4.4 lb)

HV Connector: SHV Connector

BNC Connectors: Amplifier Input, Voltage Monitor, Current Monitor, Digital Enable

Temperature: 0°C to 40°C (32°F to 104°F)

Relative Humidity: To 85%, noncondensing

Altitude: To 2000 meters (6561.68 ft.)

  • Piezoelectric driving/control
  • Electro-optic
  • MEMS
  • Many areas of research

相關產品

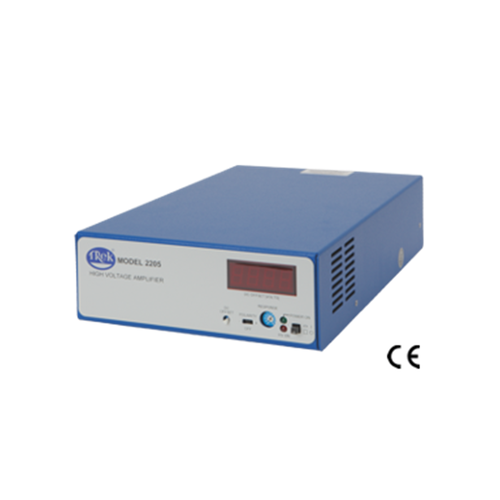

Trek 2205
