Product SKUs
|
|
ARS-221GL-NHIR
|
|
Motherboard
|
|
Super G2DMH-GI
|
|
Processor
|
|
CPU
|
-
NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip
|
|
Note
|
-
Supports up to 300W TDP CPUs (Air Cooled)
|
|
GPU
|
|
Max GPU Count
|
|
|
Supported GPU
|
-
NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Air-cooled)
|
|
CPU-GPU Interconnect
|
|
|
GPU-GPU Interconnect
|
|
|
Certification
|
|
|
System Memory
|
|
Memory
|
-
Onboard Memory
-
Up to 960GB ECC LPDDR5X
-
Additional GPU Memory: Up to 288GB ECC HBM3e
|
|
On-Board Devices
|
|
Input / Output
|
|
LAN
|
-
1 RJ45 1 GbE Dedicated BMC LAN port
|
|
USB
|
|
|
Video
|
|
|
System BIOS
|
|
BIOS Type
|
|
|
Management
|
|
Power configurations
|
-
Power-on mode for AC power recovery
-
ACPI Power Management
|
|
PC Health Monitoring
|
|
CPU
|
-
Monitors for CPU Cores, Chipset Voltages, Memory
|
|
FAN
|
-
Fans with tachometer monitoring
-
Pulse Width Modulated (PWM) fan connectors
-
Status monitor for speed control
|
|
Temperature
|
-
Monitoring for CPU and chassis environment
-
Thermal Control for fan connectors
|
|
|
|
Chassis
|
|
Form Factor
|
|
|
Model
|
|
|
Dimensions and Weight
|
|
Height
|
|
|
Width
|
|
|
Depth
|
|
|
Package
|
-
11.02" (H) x 27.56" (W) x 47.24" (D)
|
|
Weight
|
-
Gross Weight: 103 lbs (46.8 kg)
-
Net Weight: 88 lbs (40 kg)
|
|
Available Color
|
|
|

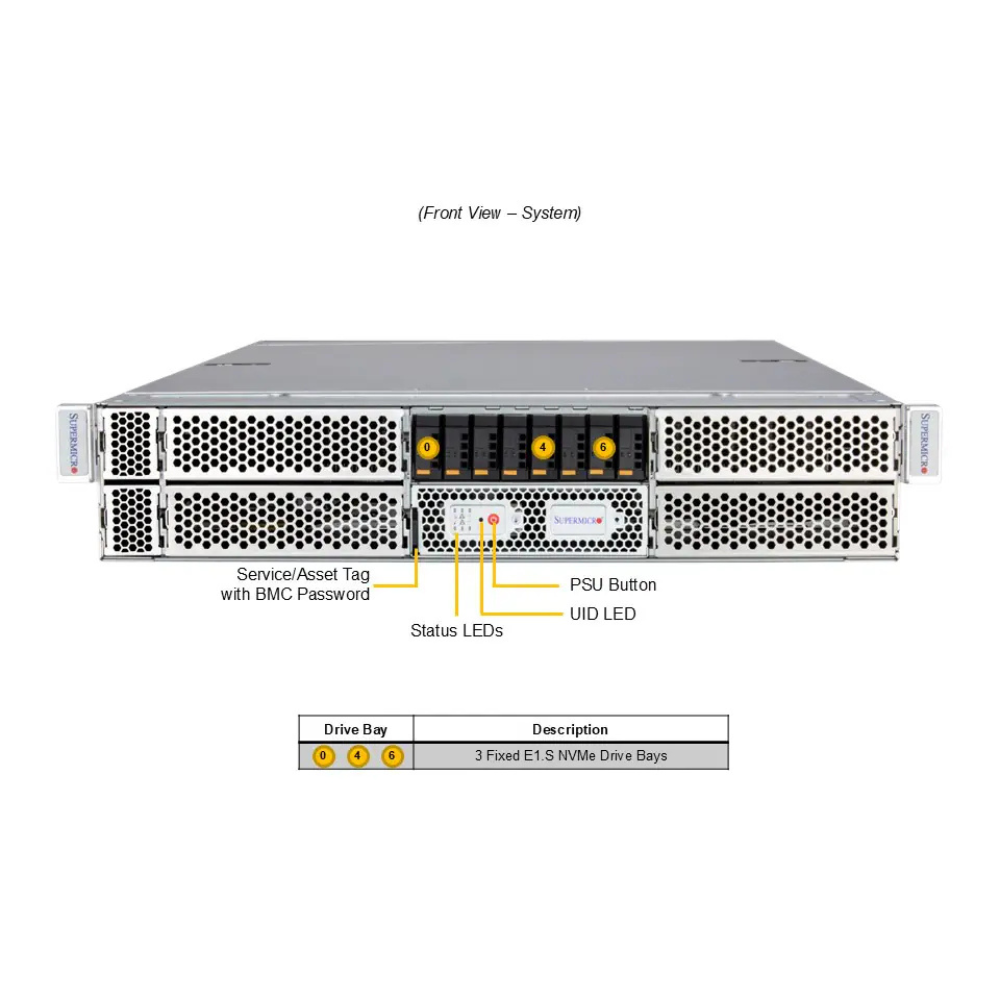

Front Panel
|
|
Buttons
|
|
|
LED
|
|
|
Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
-
Default
-
3 PCIe 5.0 x16 (in x16) FHFL slots
-
1 PCIe 5.0 x4 (in x16) FHFL slot
|
|
Drive Bays / Storage
|
|
Drive Bays Configuration
|
-
Default: Total 3 bays
-

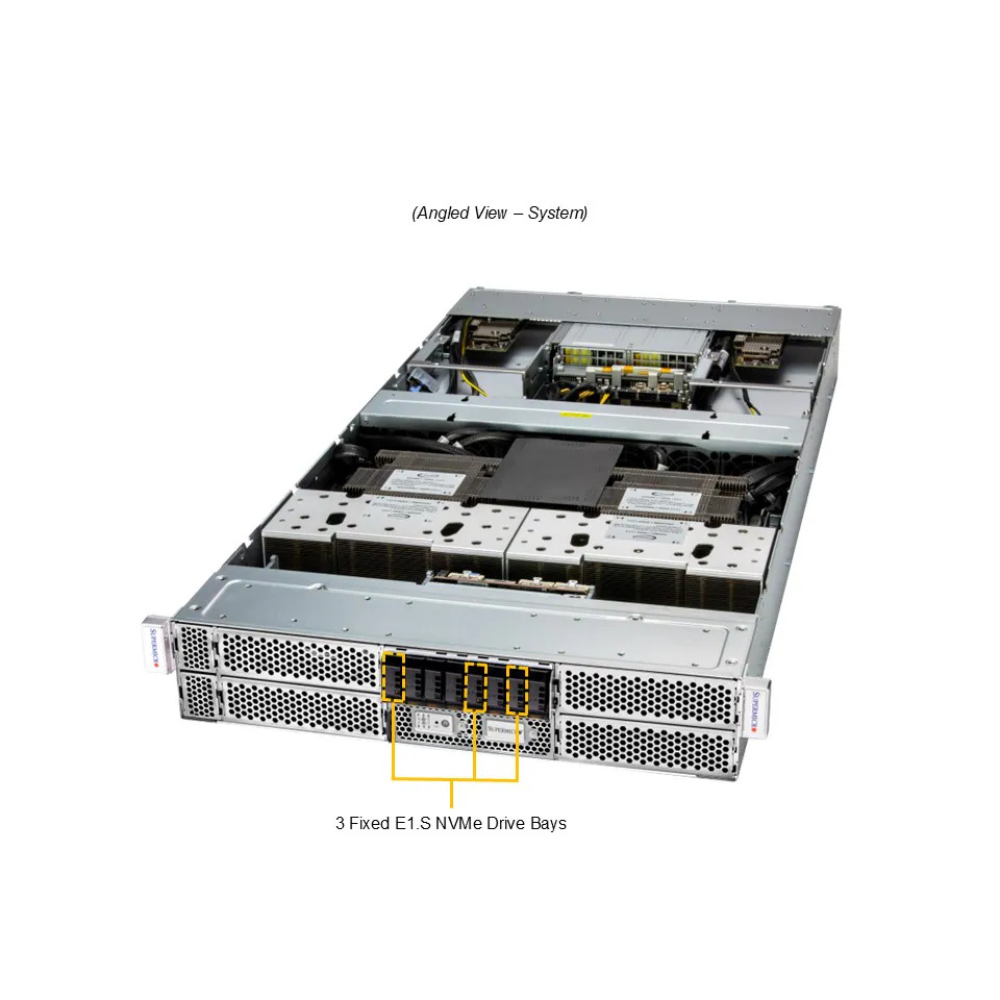

3 front fixed E1.S NVMe drive bays
|
|
M.2
|
|
|
System Cooling
|
|
Fans
|
-
Up to 6 Removable heavy-duty 6cm Fan(s)
|
|
Power Supply
|
|
|

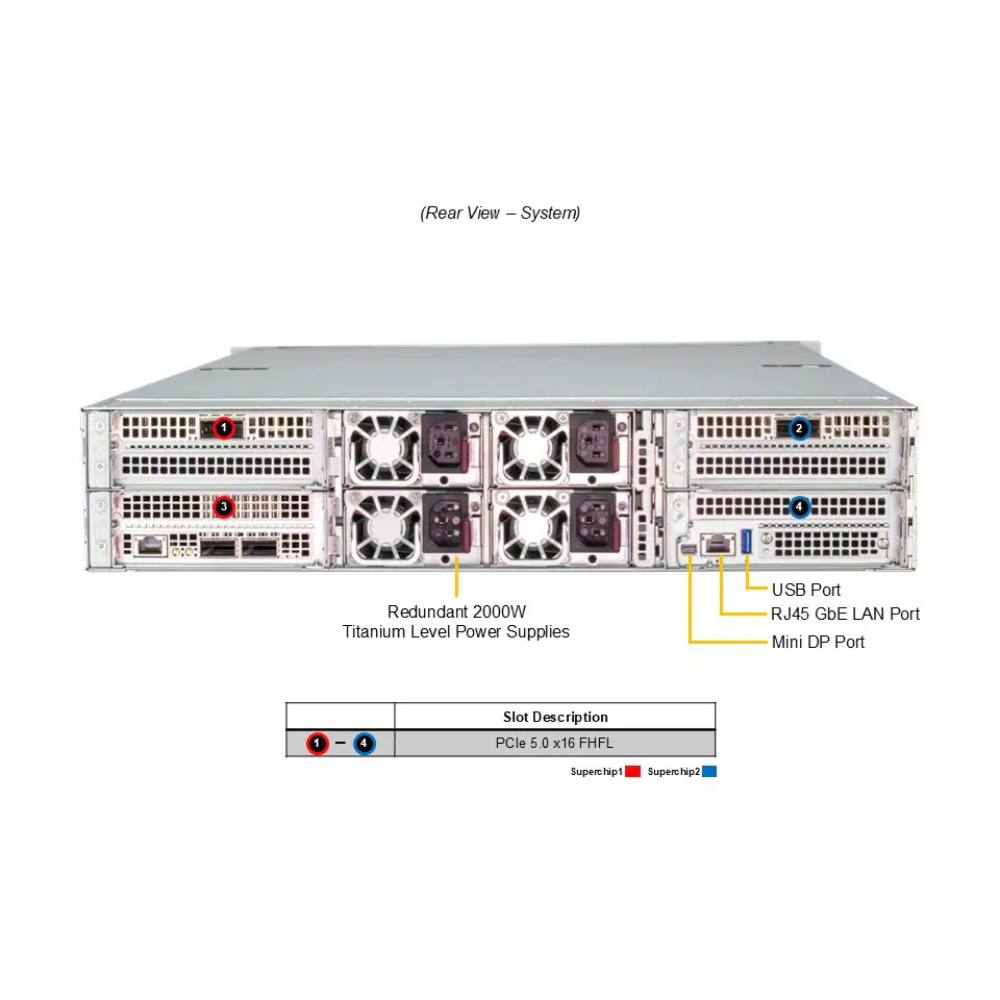

4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies
|
|
Dimension (WxHxL)
|
73.5 x 40 x 185 mm
|
|
Input
|
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc / 50-60Hz (for CQC only)
|
|
+12V
|
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
|
|
12V SB
|
Max: 3.5A / Min: 0A
|
|
Output Type
|
Backplanes (gold finger)
|
|
Operating Environment
|
|
Environmental Spec.
|
-
Operating Temperature: 10°C to 35°C (50°F to 95°F)
-
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
-
Operating Relative Humidity: 8% to 90% (non-condensing)
-
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

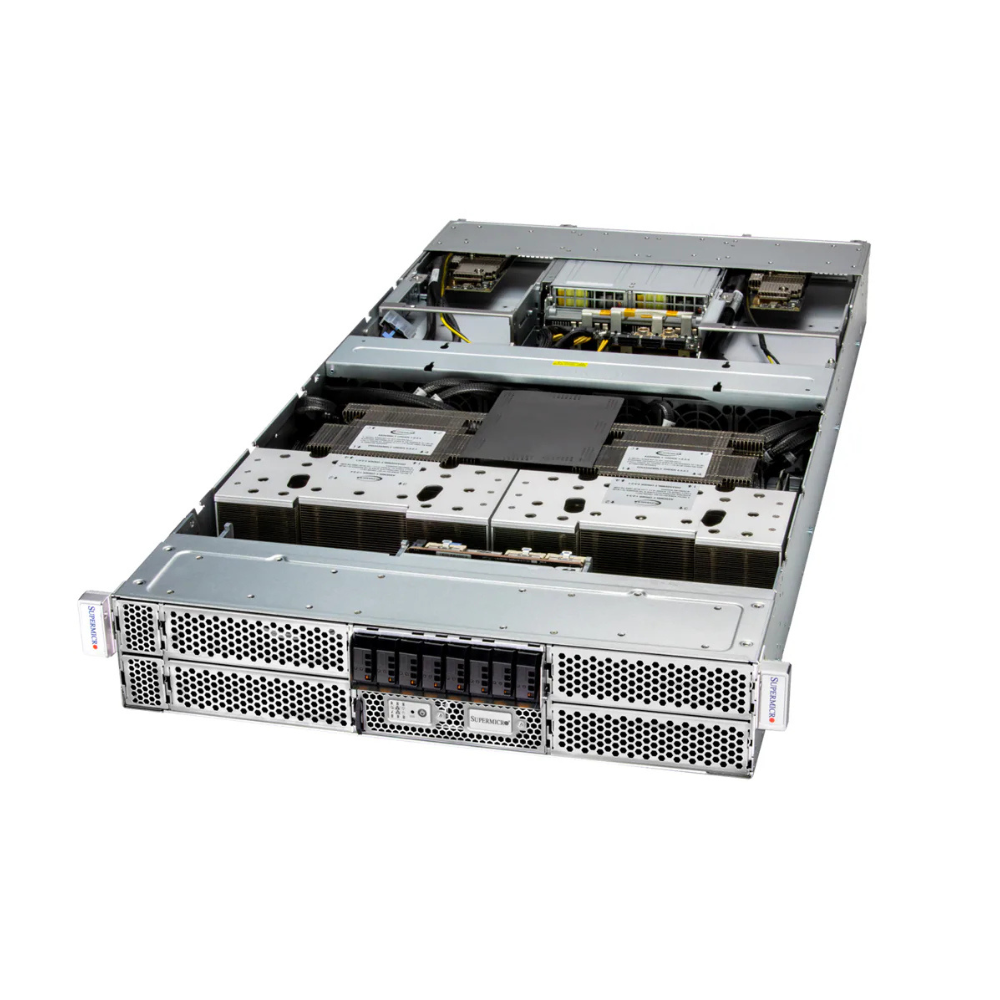

High density 2U 1-node GPU system with two Integrated NVIDIA H100 GPUs and two 72-core Arm Neoverse V2 CPUs
NVIDIA® NVLink® high speed interconnect between both GH200 Super Chips
-
NVIDIA Grace™ Hopper Superchip (Grace CPU and H100 GPU)
-
NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s
-
Up to 1248GB of coherent memory (system as a whole), including 960GB LPDDR5X and 288GB of HBM3e for LLM applications
-
4x PCIe 5.0 X16 supporting one NVIDIA Bluefield 3 and two connectX-7 cards
-

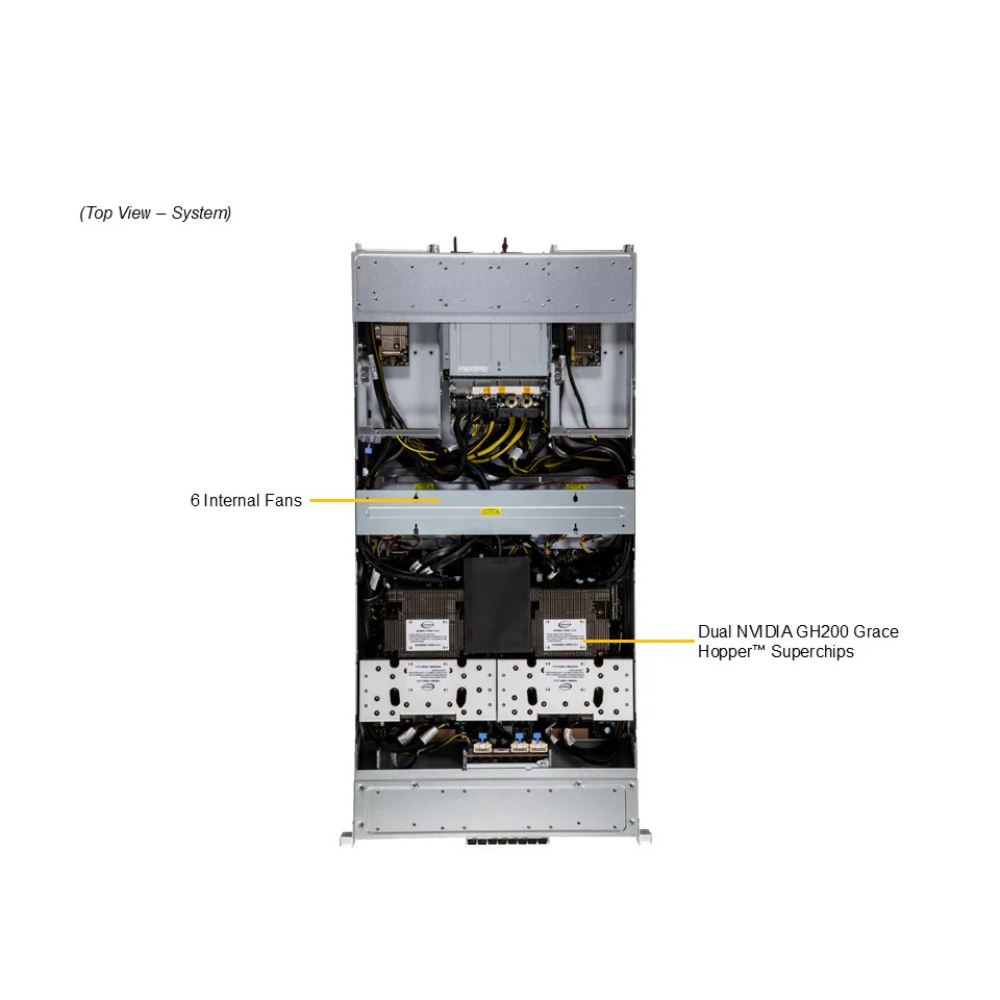

6 Heavy Duty Fans with Optional Speed Control
-
High Performance Computing
-
Large Language Model (LLM) and Generative AI
-
AI/Deep Learning Training and Inference
