• nlp250-medical series

NLP250 Medical Series開放式低功率電源

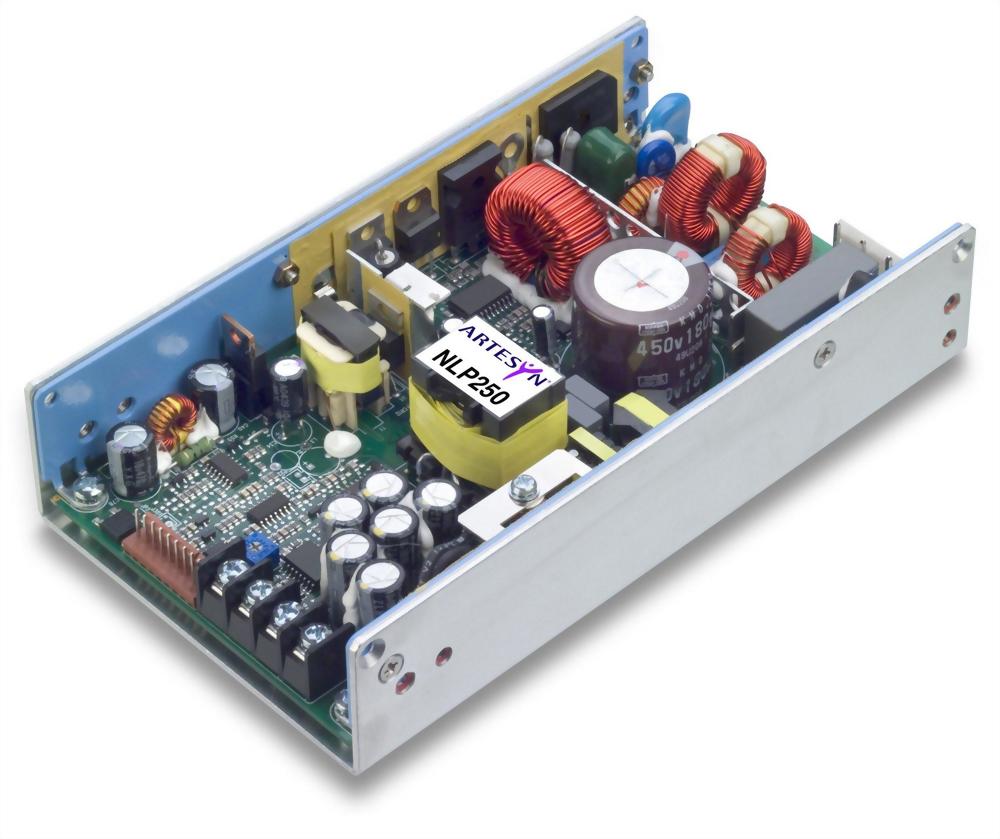

The NLP250-M series of enclosed medical AC-DC power supplies comprises two single output models, providing standard voltages of 12 V or 24 V. Both models also provide 5 V standby and 12 V fan outputs.
型號 : nlp250-medical series

 The enclosed versions of NLP250 power supplies can deliver up to 250 watts of output power when cooled by 250 LFM of forced air.

Total Max Power:

250 W

Output Voltage:

11.4 V to 25.2 V

Warranty:

2 years

Total Max Current:

21 A

Outputs:

Single

Operating Temperature:

0° C to 70° C

Input Voltage:

85 V to 264 V

Size (L x W x H):

7.000" x 4.000" x 1.500"


  • Active PFC and EN61000-3-2 compliant
  • 250 W on main channel with forced air
  • Low profile fits 1U applications
  • U-Channel for maximum thermal performance
  • Optional cover (CJ suffix)
  • 5 V standby output



  • 12 V fan output
  • Integrated control and monitoring features
  • Compliance to EN55022-B conducted noise standard
  • RoHS compliant
  • 2 year warranty
