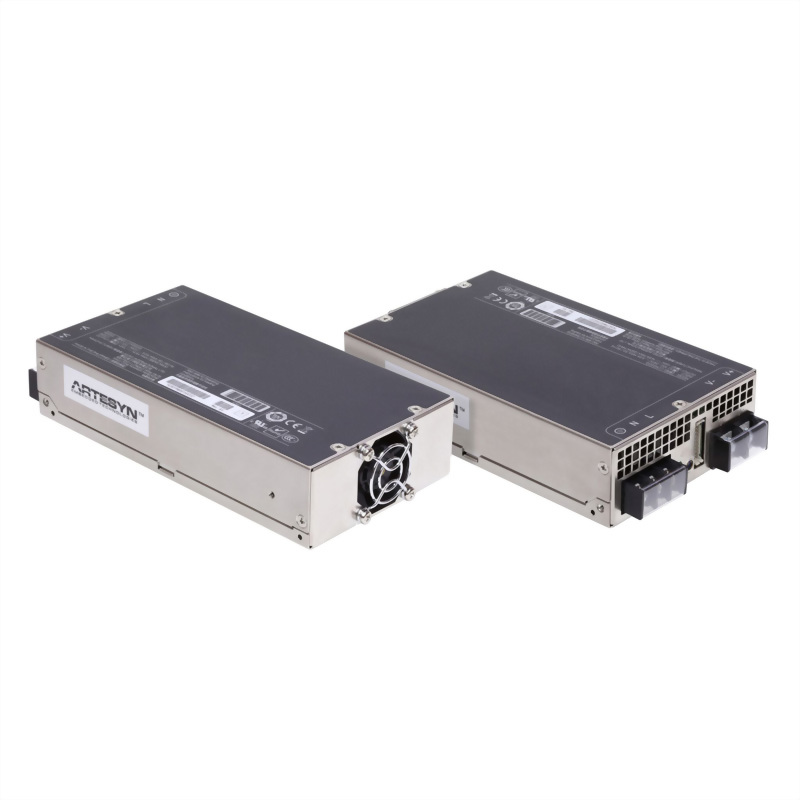

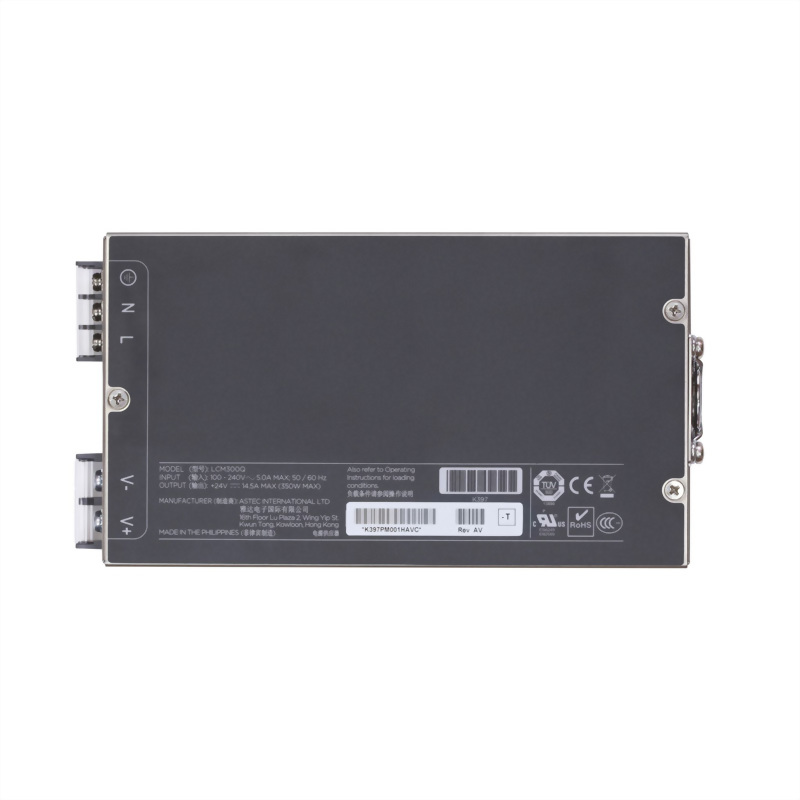

LCM300 Series封閉式電源 300W

Bulk Front End 300 Watts

The LCM300 series of enclosed front-end AC-DC power supplies comprises five single output models, providing standard voltages of 12 V, 15 V, 23 V, 36 V or 48 V, plus a 5 V standby output.
型號 : lcm300 series

Each model accepts a universal input of 90–264 Vac, carries medical safety approvals and has a typical full load efficiency of 91%. These PMBus™-compliant digitally controlled power supplies offer a high level of modification flexibility for application-specific functions such as special battery charging and management, peak load handling, voltage control and fan speed profiles. Housed in a compact 4 x 7 inch enclosure that is less than 1U high, LCM300 power supplies incorporate built-in smart fans for cooling and can deliver up to 310 watts of output power. The 24 V and 36 V models can deliver up to 350 watts at operating temperatures up to 45˚C.

Total Max Power:

300W

Output Voltage:

9.6 V to 57.6 V

Warranty:

3 years

Total Max Current:

25A

Outputs:

Single

Operating Temperature:

-40°C to +70°C

Input Voltage:

90 V to 264 V

Size (L x W x H):

7.000" x 4.000" x 1.610"


  • 350W peak power

  • Low Cost

  • Industrial/Medical Safety

  • -40 to +70 Dec C operation (with derating above 50 C)

  • Option 5V standby

  • High Efficiency 91%

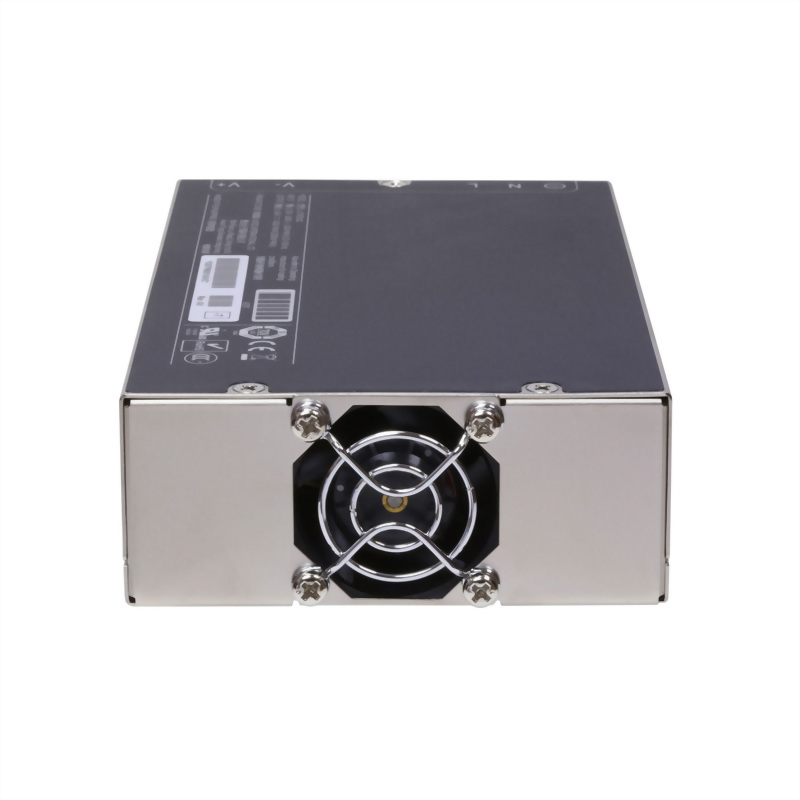

  • Variable Speed "Smart Fan"

  • DSP Controlled





  • PMBus Compliant

  • Conformal Coat Option

  • +/- 20% adjustment range

  • Margin Programming

  • Integrated OR-ing FET

  • EMI Level B

  • Optional Conformal Coat

  • Optional Constant Current
