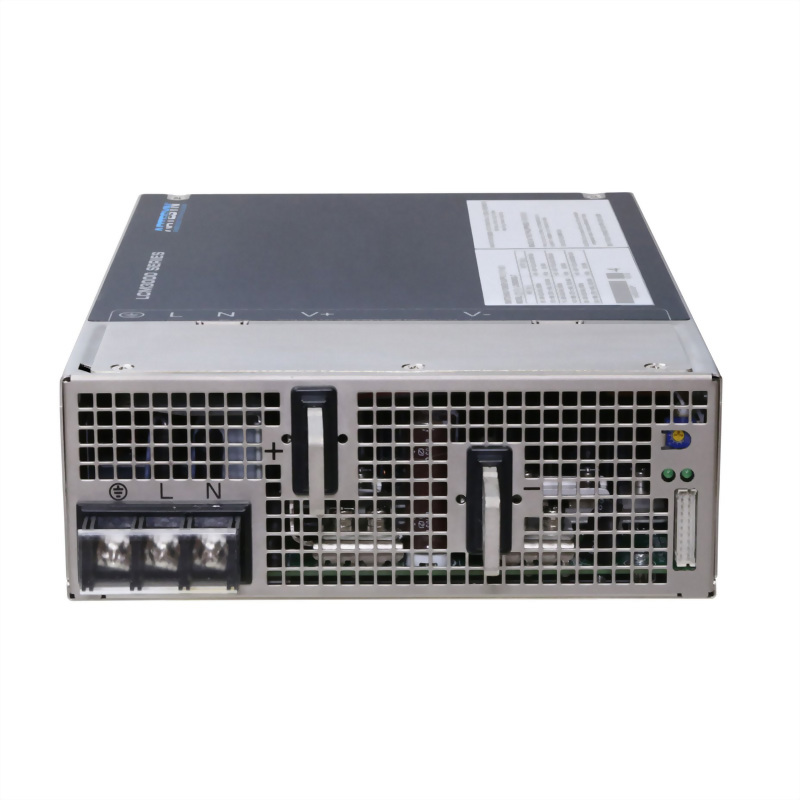

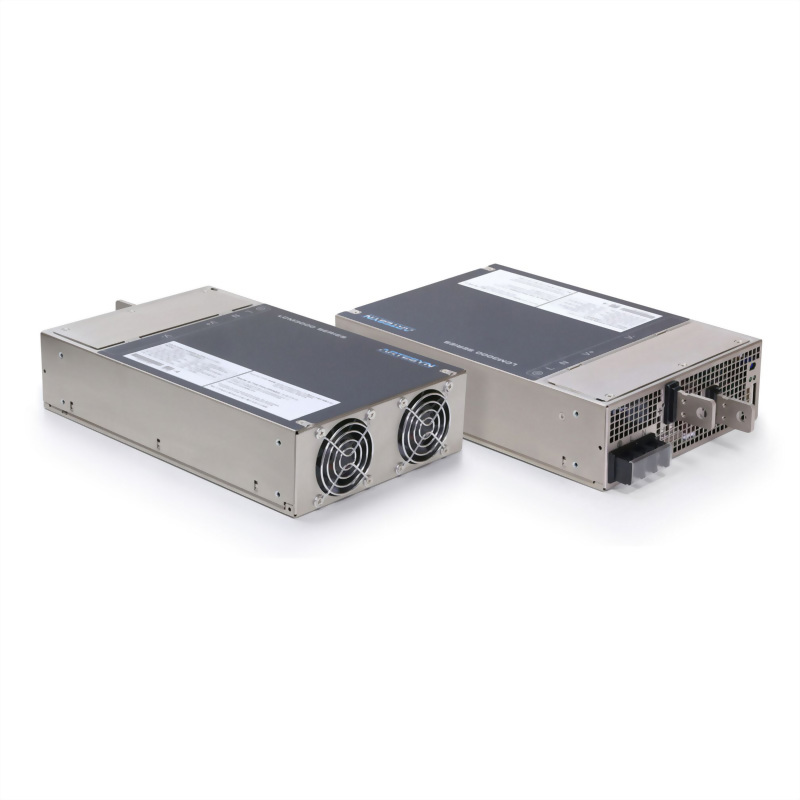

LCM3000 Series封閉式電源 3000W
Bulk Front End 3000 Watts
The LCM3000 series AC-DC single-output enclosed power supplies, which can supply up to 3000 watts output power with medical and industrial safety approvals. Cost-effective forced-air bulk front end power supply, offers configurable nominal outputs of 12, 24, 36, or 48 volts with output adjustability of plus or minus 25 percent and maximum current of 250 amps. A standard 5V/2A housekeeping output enables OEM standby functions even when the equipment is nominally off.
The LCM3000 series AC-DC single-output enclosed power supplies, which can supply up to 3000 watts output power with medical and industrial safety approvals. Cost-effective forced-air bulk front end power supply, offers configurable nominal outputs of 12, 24, 36, or 48 volts with output adjustability of plus or minus 25 percent and maximum current of 250 amps. A standard 5V/2A housekeeping output enables OEM standby functions even when the equipment is nominally off.
型號 :
lcm3000 series
Standard features including power factor correction, variable speed ‘smart fans’, digital control, a five-year warranty and a typical efficiency of greater than 90 percent,
Artesyn’s LCM3000 series is ideal for industrial applications such as test and measurement equipment, industrial robotics, laser-carving machines, and factory automation; non-patient contact and non-patient critical medical, dental and laboratory applications; as well as for telecom and datacom equipment. With simple firmware options, the LCM3000 can be used for battery charging and driving LED's.
Artesyn’s LCM3000 series is ideal for industrial applications such as test and measurement equipment, industrial robotics, laser-carving machines, and factory automation; non-patient contact and non-patient critical medical, dental and laboratory applications; as well as for telecom and datacom equipment. With simple firmware options, the LCM3000 can be used for battery charging and driving LED's.
|
Total Max Power: 3000 W |
Output Voltage: 2.4 V to 60 V |
Warranty: 5 years |
|
Total Max Current: 250 A |
Outputs: Single |
Operating Temperature: -40°C to +70°C |
|
Input Voltage: 90 V to 264 V |
Size (L x W x H): 10.900" x 7.000" x 2.500" |
|
• Low Cost • -40C to +70C with derating • DSP Controlled • +/- 25% adjustment range • V-Program from 20% to 125%
|
• VAR configurable to any voltage from a single unit Part Number • 5-Year Warranty • Smart Fans • High Efficiency
|
